GBC08S Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

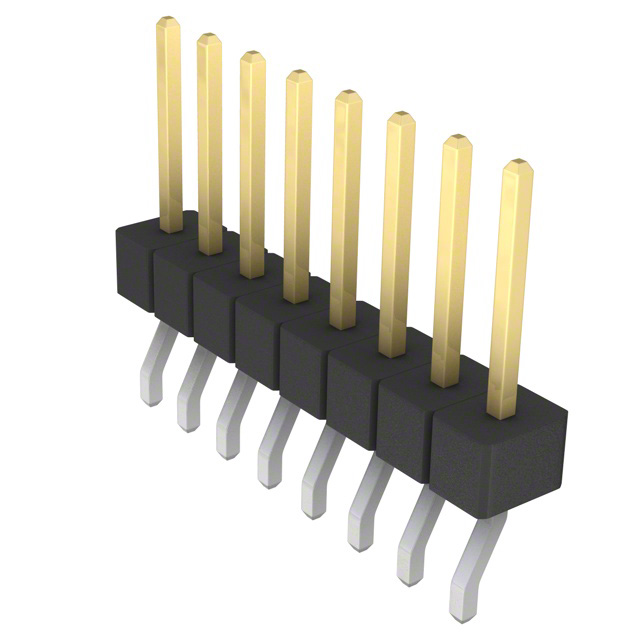

CONN HEADER SMD R/A 8POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Material Flammability Rating | Current Rating (Amps) | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Contact Material | Number of Rows | Contact Finish - Mating | Insulation Color | Contact Length - Mating | Contact Length - Mating | Mounting Type | Shrouding | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Connector Type | Contact Type | Style | Fastening Type | Number of Positions Loaded | Contact Shape | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 2.54 µm | 100 µin | 150 °C | -65 ░C | 3.56 mm | 0.14 in | UL94 V-0 | 3 A | 8 | 0.25 µm | 10 µin | Nylon 9T Polyamide (PA9T) | Phosphor Bronze | 1 | Gold | Black | 8.08 mm | 0.318 in | Right Angle Surface Mount | Unshrouded | 0.1 " | 2.54 mm | Tin | Header Breakaway | Male Pin | Board to Board Cable | Push-Pull | All | Square | Solder |
 Sullins Connector Solutions | 2.54 µm | 100 µin | 150 °C | -65 ░C | 2.54 mm | 0.1 in | UL94 V-0 | 3 A | 8 | 0.25 µm | 10 µin | Nylon 9T Polyamide (PA9T) | Phosphor Bronze | 1 | Gold | Black | 8.08 mm | 0.318 in | Surface Mount | Unshrouded | 0.1 " | 2.54 mm | Tin | Header Breakaway | Male Pin | Board to Board Cable | Push-Pull | All | Square | Solder |
