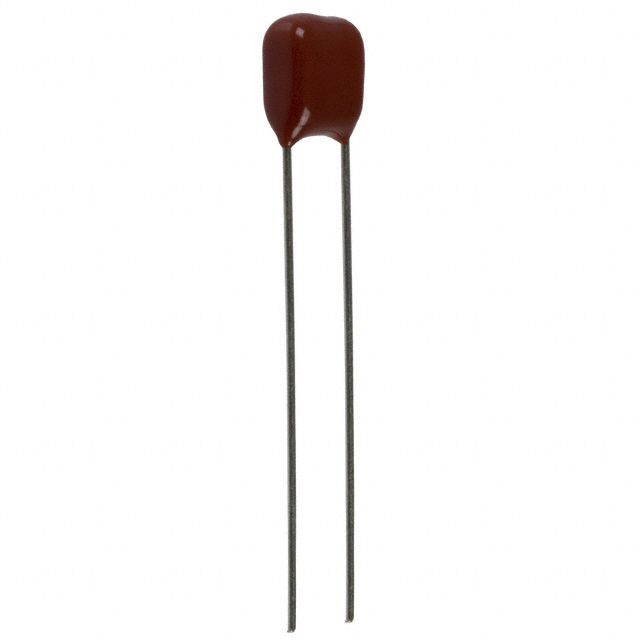

ECQ-E2823 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP FILM 0.082UF 5% 250VDC RAD

Part	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Lead Spacing	Lead Spacing	Termination	Applications	Capacitance	Voltage Rating - DC	Mounting Type	Dielectric Material	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales ECQ-E2823JBB	5 %	-40 °C	105 ░C	7.9 mm	0.213 "	0.311 "	5.4 mm	5 mm	0.197 in	PC Pins	General Purpose	0.082 µF	250 V	Through Hole	Polyester Metallized	Radial
Panasonic Industrial Automation Sales ECQ-E2823KF	10 %	-40 °C	105 ░C	10.3 mm	0.193 in	0.406 "	4.9 mm	7.5 mm	0.295 in	PC Pins	General Purpose	0.082 µF	250 V	Through Hole	Polyester Metallized	Radial	0.354 in	9 mm
Panasonic Industrial Automation Sales ECQ-E2823KFB	10 %	-40 °C	105 ░C	10.3 mm	0.193 in	0.406 "	4.9 mm	7.5 mm	0.295 in	PC Pins	General Purpose	0.082 µF	250 V	Through Hole	Polyester Metallized	Radial			13 mm	0.512 "
Panasonic Industrial Automation Sales ECQ-E2823KS	10 %	-40 °C	85 °C	12.5 mm	0.197 "	0.492 in	5 mm	10 mm	0.394 in	PC Pins	General Purpose	0.082 µF	250 V	Through Hole	Polyester Metallized	Radial			11 mm	0.433 in
Panasonic Industrial Automation Sales ECQ-E2823KF3	10 %	-40 °C	105 ░C	10.3 mm	0.193 in	0.406 "	4.9 mm	5 mm	0.197 in	PC Pins	General Purpose	0.082 µF	250 V	Through Hole	Polyester Metallized	Radial			13 mm	0.512 "

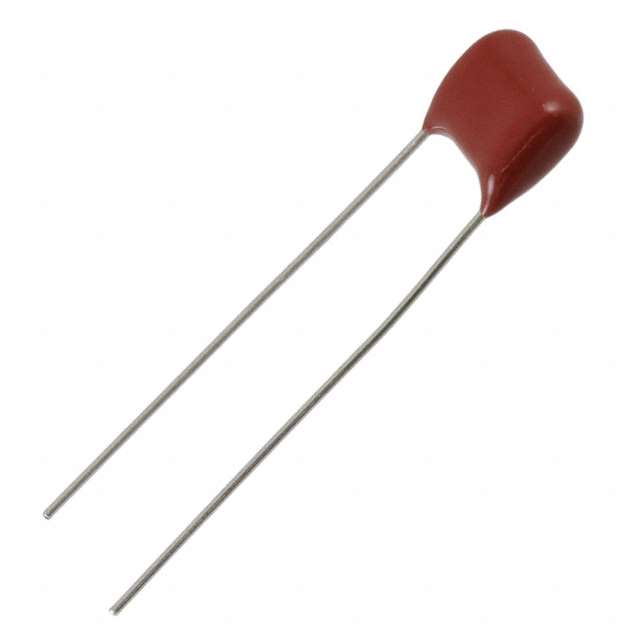

Panasonic Industrial Automation Sales ECQ-E2823JF	5 %	-40 °C	105 ░C	10.3 mm	0.193 in	0.406 "	4.9 mm	7.5 mm	0.295 in	PC Pins	General Purpose	0.082 µF	250 V	Through Hole	Polyester Metallized	Radial	0.354 in	9 mm
Panasonic Industrial Automation Sales ECQ-E2823JFW	5 %	-40 °C	105 ░C	10.3 mm	0.193 in	0.406 "	4.9 mm	7.5 mm	0.295 in	PC Pins	General Purpose	0.082 µF	250 V	Through Hole	Polyester Metallized	Radial			13 mm	0.512 "
Panasonic Industrial Automation Sales ECQ-E2823KBB	10 %	-40 °C	105 ░C	7.9 mm	0.213 "	0.311 "	5.4 mm	5 mm	0.197 in	PC Pins	General Purpose	0.082 µF	250 V	Through Hole	Polyester Metallized	Radial
Panasonic Industrial Automation Sales ECQ-E2823JFB	5 %	-40 °C	105 ░C	10.3 mm	0.193 in	0.406 "	4.9 mm	7.5 mm	0.295 in	PC Pins	General Purpose	0.082 µF	250 V	Through Hole	Polyester Metallized	Radial			13 mm	0.512 "
Panasonic Industrial Automation Sales ECQ-E2823JF9	5 %	-40 °C	105 ░C	10.3 mm	0.193 in	0.406 "	4.9 mm	5 mm	0.197 in	PC Pins	General Purpose	0.082 µF	250 V	Through Hole	Polyester Metallized	Radial			13 mm	0.512 "
