19411160 Series
Manufacturer: HARTING
Beta
⌘K
HAN-ECO MODULAR 16B SURFACE MOUNT HOUSING 2XM40 W/ GLANDS (HOLDS CABLE 16-28MM)
| Part | Lock Location | Housing Color | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Housing Material | Size | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

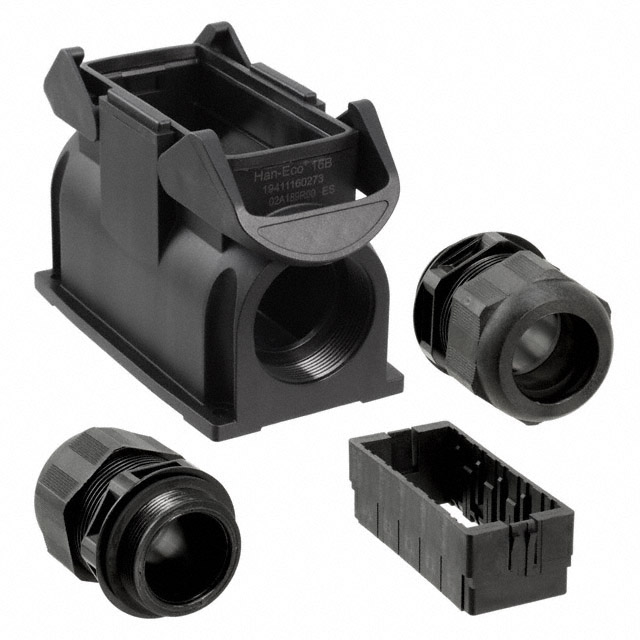

 HARTING | Locking Clip (2) on Base Bottom | Black | 78.2 mm | 2.677 " | 68 mm | 119 mm | 4.685 in | 3.079 in | Glass Filled Nylon Polyamide (PA) | 16 B | IP65 - Dust Tight Water Resistant | 125 °C | -40 C | Base - Box Mount | Side Entry | Feed Through |

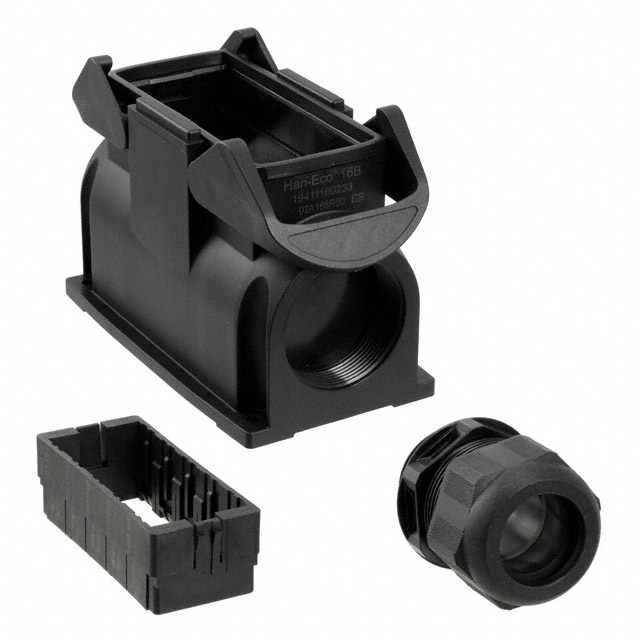

 HARTING | Locking Clip (2) on Base Bottom | Black | 78.2 mm | 2.677 " | 68 mm | 119 mm | 4.685 in | 3.079 in | Glass Filled Nylon Polyamide (PA) | 16 B | IP65 - Dust Tight Water Resistant | 125 °C | -40 C | Base - Box Mount | Side Entry | |

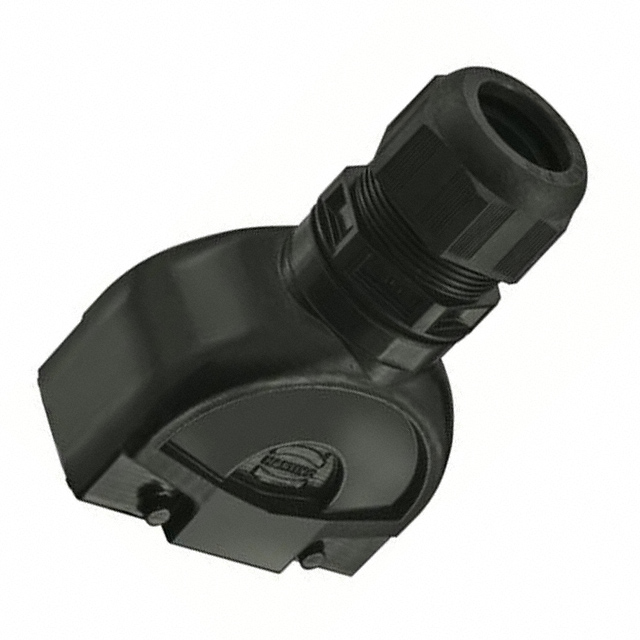

 HARTING | Locking Clip (2) on Base Bottom | Black | 134.9 mm | 2.244 " | 57 mm | 94 mm | 3.701 in | 5.311 in | Glass Filled Nylon Polyamide (PA) | 16 B | IP65 - Dust Tight Water Resistant | 125 °C | -40 C | Hood | Top Entry |
