1857A Series

Catalog

#22 FLDPE VLDPE PVC TRIAX

Part	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Dielectric Material	Shield Coverage	VoP, Velocity of Propagation	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Wire Gauge	Cable Group	Jacket Color	Impedance	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Cable Type	Length [x]	Length [x]
Belden Inc. 1857A 004500	0.143 in	3.63 mm	75 ░C	-30 ░C	Copper Bare	Foam Polyethylene (FPE)	95 %	79	Copper Bare	9.14 mm	0.36 in	Poly-Vinyl Chloride (PVC)	22 AWG	RG-59	Yellow	75 Ohms	19	34 AWG	Braid	Triaxial	152.4 m	500 ft
Belden Inc. 1857A B591000	0.143 in	3.63 mm	75 ░C	-30 ░C	Copper Bare	Foam Polyethylene (FPE)	95 %	79	Copper Bare	9.14 mm	0.36 in	Poly-Vinyl Chloride (PVC)	22 AWG	RG-59	Black	75 Ohms	19	34 AWG	Braid	Triaxial	304.8 m	1000 ft

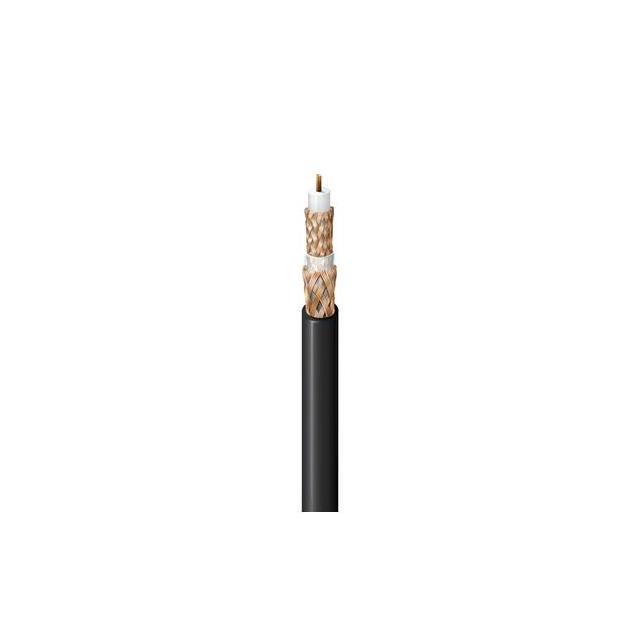

Belden Inc. 1857A 0061000	0.143 in	3.63 mm	75 ░C	-30 ░C	Copper Bare	Foam Polyethylene (FPE)	95 %	79	Copper Bare	9.14 mm	0.36 in	Poly-Vinyl Chloride (PVC)	22 AWG	RG-59	Blue	75 Ohms	19	34 AWG	Braid	Triaxial	304.8 m	1000 ft
Belden Inc. 1857A 0021000	0.143 in	3.63 mm	75 ░C	-30 ░C	Copper Bare	Foam Polyethylene (FPE)	95 %	79	Copper Bare	9.14 mm	0.36 in	Poly-Vinyl Chloride (PVC)	22 AWG	RG-59	Red	75 Ohms	19	34 AWG	Braid	Triaxial	304.8 m	1000 ft
Belden Inc. 1857A 0041000	0.143 in	3.63 mm	75 ░C	-30 ░C	Copper Bare	Foam Polyethylene (FPE)	95 %	79	Copper Bare	9.14 mm	0.36 in	Poly-Vinyl Chloride (PVC)	22 AWG	RG-59	Yellow	75 Ohms	19	34 AWG	Braid	Triaxial	304.8 m	1000 ft
Belden Inc. 1857A 0071000	0.143 in	3.63 mm	75 ░C	-30 ░C	Copper Bare	Foam Polyethylene (FPE)	95 %	79	Copper Bare	9.14 mm	0.36 in	Poly-Vinyl Chloride (PVC)	22 AWG	RG-59	Violet	75 Ohms	19	34 AWG	Braid	Triaxial	304.8 m	1000 ft
