TAS5441-Q1 Series

22-W, analog input 1-channel automotive class-D audio amplifier with load dump and I2C diagnostics

Catalog

22-W, analog input 1-channel automotive class-D audio amplifier with load dump and I2C diagnostics

Part	Secondary Attributes	Primary Attributes	Utilized IC / Part	Type	Function	Supplied Contents	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Qualification	Max Output Power x Channels @ Load	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Output Type	Mounting Type	Package / Case	Package / Case

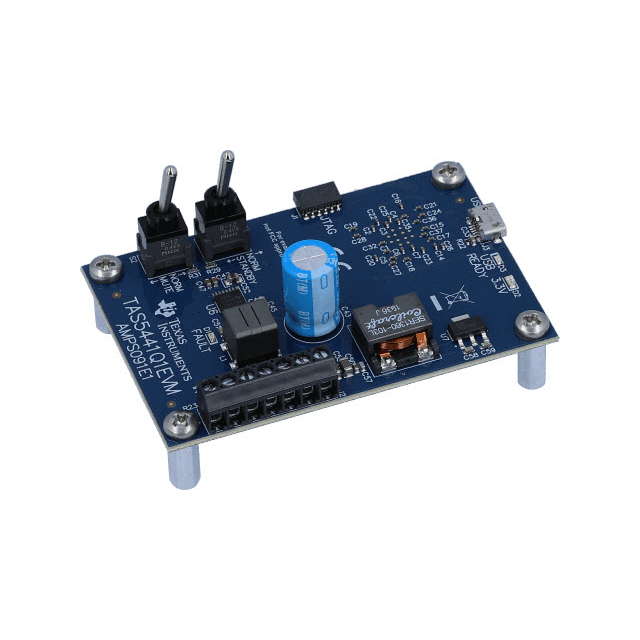

Texas Instruments TAS5441Q1EVM	Graphical User Interface (GUI) I2C/USB Interface(s)	Differential Inputs	TAS5441Q1	Audio	Audio Processing	Board(s)
Texas Instruments TAS5441QPWPRQ1				Class D			18 V	4.5 V	16-HTSSOP	AEC-Q100	1 channels 22 W	-40 °C	125 °C	Automotive	1-Channel (Mono)	Surface Mount	16-PowerTSSOP	0.173 in 4.4 mm Width

Catalog

22-W, analog input 1-channel automotive class-D audio amplifier with load dump and I2C diagnostics

Key Features

• AEC-Q100 Qualified for automotive applicationsTemperature grade 1: –40°C to 125°C, T AMono BTL Digital power amplifier22-W Output power at 1 0% THD+N into 4 Ω4.5-V to 18-V Operating range85% Efficiency into 4 ΩDifferential analog inputSpeaker Guard™ speaker protection with adjustable power limiter75-dB Power-supply rejection ratio (PSRR)Load diagnostic functions:Open and shorted output loadOutput-to-power and output-to-ground shortsProtection and monitoring functions:Short-circuit protection40-V Load dump protection per ISO-7637-2Output DC Level detection while music is playingOvertemperature protectionOvervoltage and Undervoltage protectionThermally enhanced 16-Pin HTSSOP (PWP) package with PowerPAD™ package (pad down)Designed for automotive EMC requirementsISO9000: 2002 TS16949 certified40-V Load dump protection in standbyNon-blocking I 2C in standbyAEC-Q100 Qualified for automotive applicationsTemperature grade 1: –40°C to 125°C, T AMono BTL Digital power amplifier22-W Output power at 1 0% THD+N into 4 Ω4.5-V to 18-V Operating range85% Efficiency into 4 ΩDifferential analog inputSpeaker Guard™ speaker protection with adjustable power limiter75-dB Power-supply rejection ratio (PSRR)Load diagnostic functions:Open and shorted output loadOutput-to-power and output-to-ground shortsProtection and monitoring functions:Short-circuit protection40-V Load dump protection per ISO-7637-2Output DC Level detection while music is playingOvertemperature protectionOvervoltage and Undervoltage protectionThermally enhanced 16-Pin HTSSOP (PWP) package with PowerPAD™ package (pad down)Designed for automotive EMC requirementsISO9000: 2002 TS16949 certified40-V Load dump protection in standbyNon-blocking I 2C in standby

Description
