8853.15 Series

Catalog

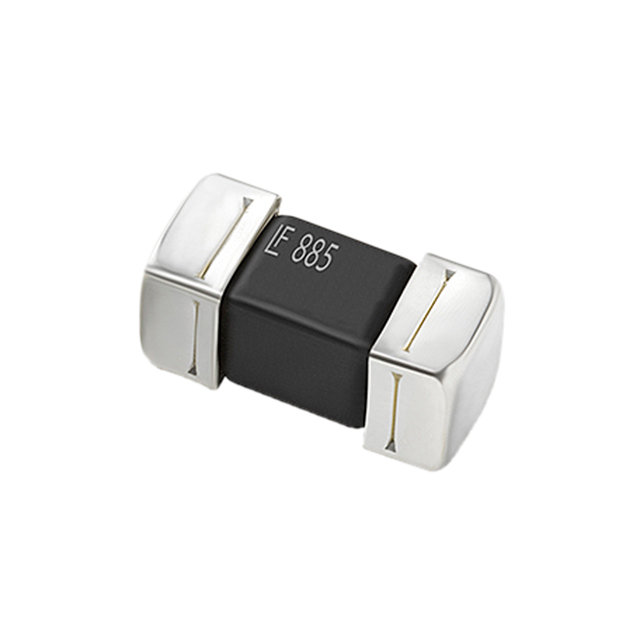

FUSE, SURFACE MOUNT, 3.15 A, 350 VAC, 350 VDC, 10.9MM X 4.8MM, NANO2 885 SERIES

Part	Fuse Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	DC Cold Resistance	Current Rating (Amps)	Package / Case	Breaking Capacity @ Rated Voltage	Melting I²t	Voltage Rating - DC	Mounting Type
Littelfuse/Commercial Vehicle Products 08853.15DR	Board Mount	cURus TUV	85 °C	-40 °C	0.0196 Ohms	3.15 A	2-SMD Square End Block	100 A	13.35	500 V	Surface Mount

• High DC Voltage up to 500VDC and Interrupting Current Rating up to 1500A

• Reliable/Robust Fuse Design (Solderless Platform)

• Meets Littelfuse’s automotive qualifications with a compact footprint of 10.86 x 4.78mm

• Small Size/Surface Mountable Type

• Operating temperature range from –40°C to +85°C
