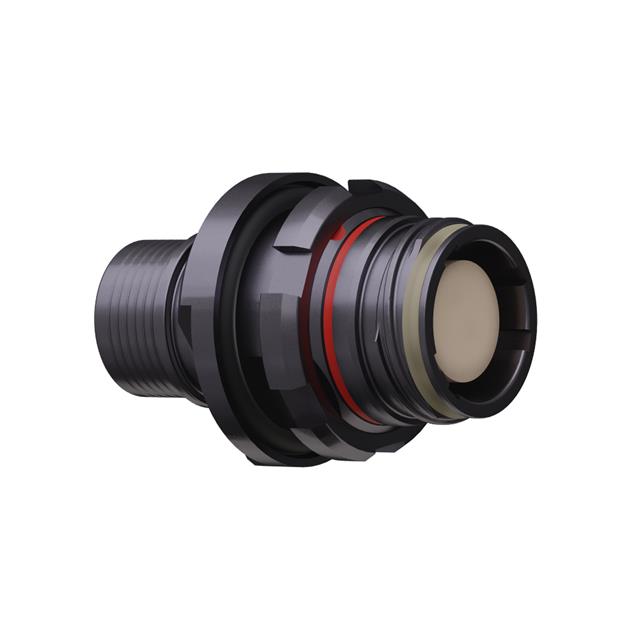

G6TAAT0-H Series
Manufacturer: ODU
Beta
⌘K
ODU AMC SERIES T RECEPTACLE, SHE
| Part | Shell Material | Primary Material | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Cable Opening | Cable Opening | Number of Positions | Ingress Protection | Mounting Feature | Fastening Type | Current Rating (Amps) | Shielding | Termination | Mounting Type | Shell Size - Insert [custom] | Contact Finish - Mating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Orientation | Contact Material | Voltage Rating | Connector Type | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Aluminum | Metal | UL94 V-0 | 50 µin | 1.27 µm | 14.6 mm | 0.575 in | 5 | IP68 IP69K | Bulkhead - Front Side Nut | Push-Pull Threaded | 13 A | Shielded | Crimp | Panel Mount | 12 | Gold | Silver | -65 ░C | 175 °C | Polyetheretherketone (PEEK) | A | Copper Alloy | 50 V | Receptacle Female Sockets | Tin Nickel | |
Aluminum | Metal | UL94 V-0 | 50 µin | 1.27 µm | 14.6 mm | 0.575 in | 18 | IP68 IP69K | Bulkhead - Front Side Nut | Push-Pull Threaded | 5 A 7.5 A | Shielded | Crimp | Panel Mount | 12 | Gold | Silver | -65 ░C | 175 °C | Polyetheretherketone (PEEK) | A | Copper Alloy | 50 V | Receptacle Female Sockets | Tin Nickel |
