315-074 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 74POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Flange Feature	Mounting Type	Termination	Color	Pitch	Pitch	Gender	Number of Positions/Bay/Row	Contact Type	Read Out	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Card Type	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 315-074-521-207	2	Polyester Thermoplastic	Flush Mount M3 Threaded Insert Top Opening	Panel Mount Through Hole	Solder	Green	3.96 mm	0.156 in	Female	37	Semi Bellows	Dual	0.25 Ám	10 Áin	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	74	2	-40 C	105 ░C	Gold	Non Specified - Dual Edge
EDAC Inc. 315-074-556-203	2	Polyester Thermoplastic	Floating Bobbin Flush Mount	Board Edge Straddle Mount	Solder	Green	3.96 mm	0.156 in	Female	37	Semi Bellows	Dual	0.25 Ám	10 Áin	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	74	2	-40 C	105 ░C	Gold	Non Specified - Dual Edge	Card Extender	0.116 "	2.95 mm
EDAC Inc. 315-074-520-258	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	Solder	Green	3.96 mm	0.156 in	Female	37	Semi Bellows	Dual	0.25 Ám	10 Áin	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	74	2	-40 C	105 ░C	Gold	Non Specified - Dual Edge

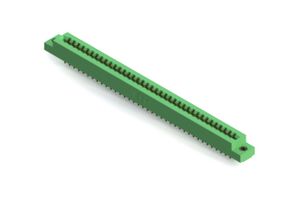

EDAC Inc. 315-074-556-207	2	Polyester Thermoplastic	Flush Mount M3 Threaded Insert Top Opening	Board Edge Straddle Mount	Solder	Green	3.96 mm	0.156 in	Female	37	Semi Bellows	Dual	0.25 Ám	10 Áin	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	74	2	-40 C	105 ░C	Gold	Non Specified - Dual Edge	Card Extender
EDAC Inc. 315-074-500-268	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount	Solder Eyelet(s)	Green	3.96 mm	0.156 in	Female	37	Semi Bellows	Dual	0.25 Ám	10 Áin	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	74	2	-40 C	105 ░C	Gold	Non Specified - Dual Edge
EDAC Inc. 315-074-520-201	2	Polyester Thermoplastic		Through Hole	Solder	Green	3.96 mm	0.156 in	Female	37	Semi Bellows	Dual	0.25 Ám	10 Áin	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	74	2	-40 C	105 ░C	Gold	Non Specified - Dual Edge
EDAC Inc. 315-074-500-201	2	Polyester Thermoplastic		Free Hanging (In-Line)	Solder Eyelet(s)	Green	3.96 mm	0.156 in	Female	37	Semi Bellows	Dual	0.25 Ám	10 Áin	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	74	2	-40 C	105 ░C	Gold	Non Specified - Dual Edge
EDAC Inc. 315-074-555-258	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Board Edge Straddle Mount	Solder	Green	3.96 mm	0.156 in	Female	37	Semi Bellows	Dual	0.25 Ám	10 Áin	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	74	2	-40 C	105 ░C	Gold	Non Specified - Dual Edge	Card Extender Card Guides
EDAC Inc. 315-074-520-278	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	Solder	Green	3.96 mm	0.156 in	Female	37	Semi Bellows	Dual	0.25 Ám	10 Áin	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	74	2	-40 C	105 ░C	Gold	Non Specified - Dual Edge
EDAC Inc. 315-074-520-204	2	Polyester Thermoplastic	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	Solder	Green	3.96 mm	0.156 in	Female	37	Semi Bellows	Dual	0.25 Ám	10 Áin	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	74	2	-40 C	105 ░C	Gold	Non Specified - Dual Edge		0.156 "	3.96 mm
