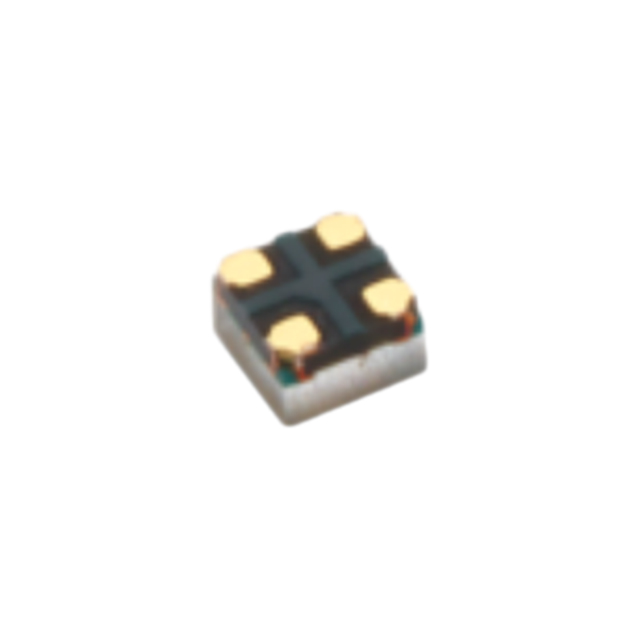

HSMF-C116 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED RGB TOP MNT SMD
| Part | Viewing Angle [custom] | Viewing Angle [custom] | Viewing Angle [custom] | Voltage - Forward (Vf) (Typ) | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Configuration | Mounting Type | Wavelength - Dominant | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Lens Size | Lens Style | Color | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 137 ° | 140 ° | 140 ° | 2 V 2.8 V 3 V | 466 nm | 631 nm | 520 nm | Common Anode | Surface Mount | 471nm Blue 528nm Green 622nm Red | 220 mcd | 80 mcd | 45 mcd | 1.05 mm | Square with Flat Top | Blue Green Red | 0404 (1010 Metric) | 1.05 mm | 1.05 mm | 10 mA | 5 mA | 5 mA |
