AUTO TVS SMTO HI-POWER
Key Features
• AEC-Q101 qualified
• SMTO-263 package, and foot print is compatible to industrial popular DO-218AB package
• Meet ISO7637-2 5a/5b protection and ISO16750 load dump test (refer to APP note for details)
• Breaking voltage equals (Vbrat 25°C x [1+αT x (Tj– 25]), with the typical temperature coefficient (αT) being 0.1 %
• Glass passivated chip junction in modified TO-263 package
• IEC-61000-4-2 ESD 30 kV (Air), 30 kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2
• EFT protection of data lines in accordance with IEC 61000-4-4
• Fast response time: typically less than 1.0ps from 0 Volts to BV min
• Excellent clamping capability
Description
AI

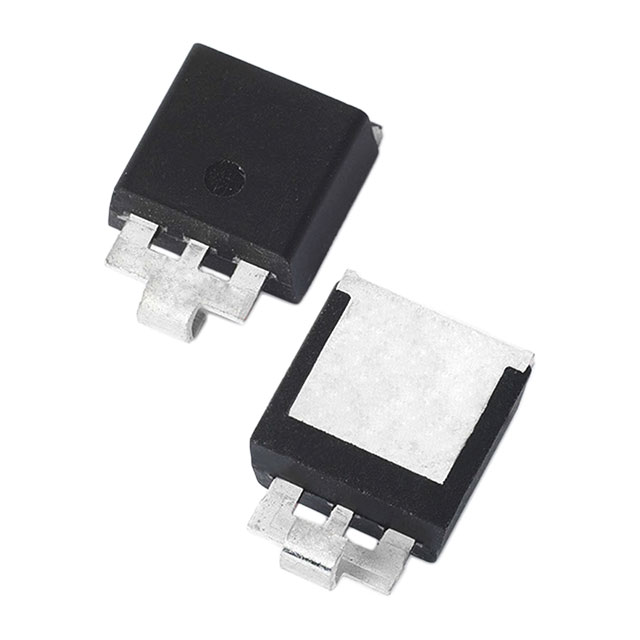

This part number will be Obsolete on Nov. 24th, 2020 and is not recommended for new designs. Replacement will be SLD13U-017 or SLD8S14A . The SLD8S Series is SMTO-263 packaged with leaded modification and is designed to provide precision overvoltage protection for sensitive electronics
