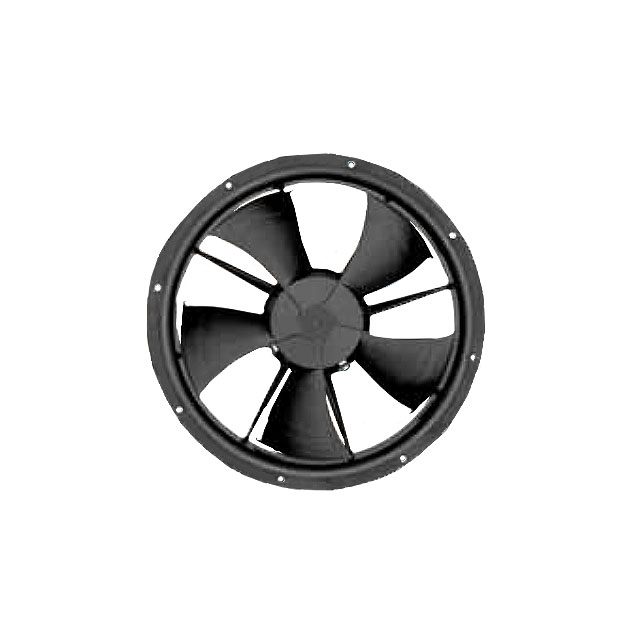

W1G230 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
ESM (ENERGY SAVING MOTOR) FAN
| Part | Material - Frame | Material - Blade | Current Rating (Amps) | Approval Agency | Static Pressure | Static Pressure | Voltage - Rated | Features | Bearing Type | Fan Type | Operating Temperature [Min] | Operating Temperature [Max] | RPM | Ingress Protection | Termination | Width [y] | Size / Dimension | Size / Dimension [diameter] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polypropylene (PP) | Polyamide (PA) Nylon | 0.35 A | CE CSA EAC UL VDE | 0.145 in H2O | 36.1 Pa | 115 VAC | Thermal Overload Protector (TOP) | Ball | Tubeaxial | -30 ░C | 50 °C | 1500 RPM | IP55 - Dust Protected Water Resistant | 3 Wire Leads with Splice Terminals | 78.5 mm | Round | 280 mm | 23 Watts |
ebm-papst Inc. | Polypropylene (PP) | Polyamide (PA) Nylon | 0.2 A | CE CSA EAC UL VDE | 0.145 in H2O | 36.1 Pa | 230 VAC | Thermal Overload Protector (TOP) | Ball | Tubeaxial | -30 ░C | 50 °C | 1000 RPM | IP55 - Dust Protected Water Resistant | 3 Wire Leads with Splice Terminals | 78.5 mm | Round | 280 mm | 26 W |
