A64-113 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN JACK 1PORT 100 BASE-T PCB
| Part | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Shield Material | Contact Material | LED Color | Number of Ports | Mounting Type | Termination | Applications | Number of Rows | Orientation | Height Above Board [z] | Height Above Board [z] | Shielding | Connector Type | Number of Cores per Jack | Features | Contact Finish | Tab Direction | Operating Temperature [Max] | Operating Temperature [Min] | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

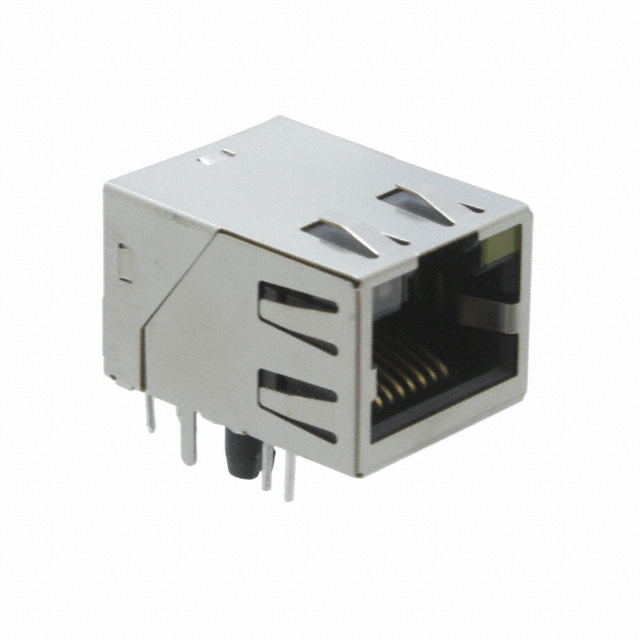

 EDAC Inc. | 0.38 µm | 15 µin | Nylon Polyamide (PA) Polyester | Copper Alloy | Phosphor Bronze | Green - Yellow | 1 | Through Hole | Solder | 10/100 Base-T | 1 | 90 ° | 0.53 in | 13.45 mm | EMI Finger Shielded | RJ45 | 5 | Board Lock | Gold | Up | 70 °C | 0 °C | |

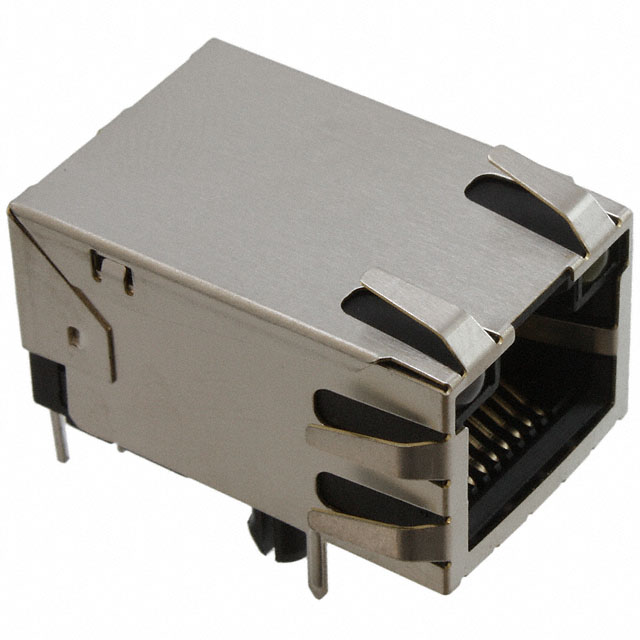

 EDAC Inc. | 0.38 µm | 15 µin | Polybutylene Terephthalate (PBT) Polyester | Green Orange Yellow | 1 | Through Hole | Solder | 10/100 Base-T | 1 | 90 ° | 0.528 in | EMI Finger Shielded | RJ45 | 5 | Board Lock | Gold | Up | 13.4 mm |
