845-030 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 30POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Number of Positions | Mounting Type | Contact Material | Termination | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Gender | Number of Positions/Bay/Row | Card Type | Contact Finish | Read Out | Pitch | Pitch | Number of Rows [custom] | Color | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

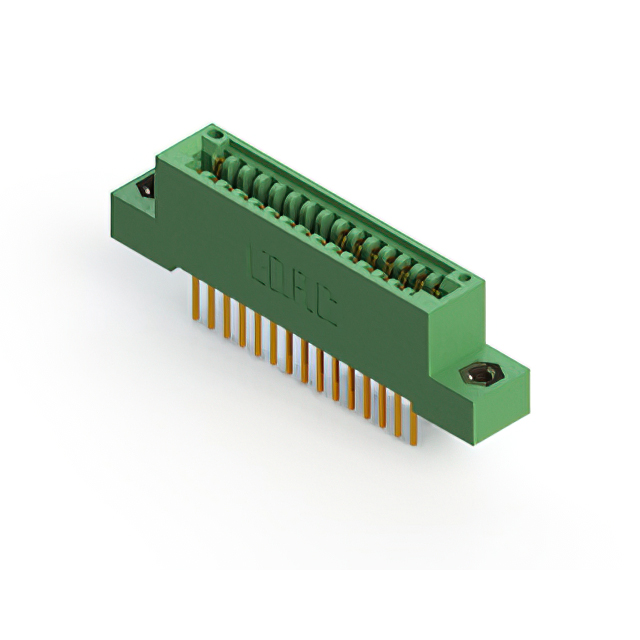

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 30 | Right Angle Through Hole | Copper Alloy | Solder | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -40 C | Cantilever | Female | 15 | Non Specified - Dual Edge | Gold | Dual | 0.1 " | 2.54 mm | 2 | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | ||||

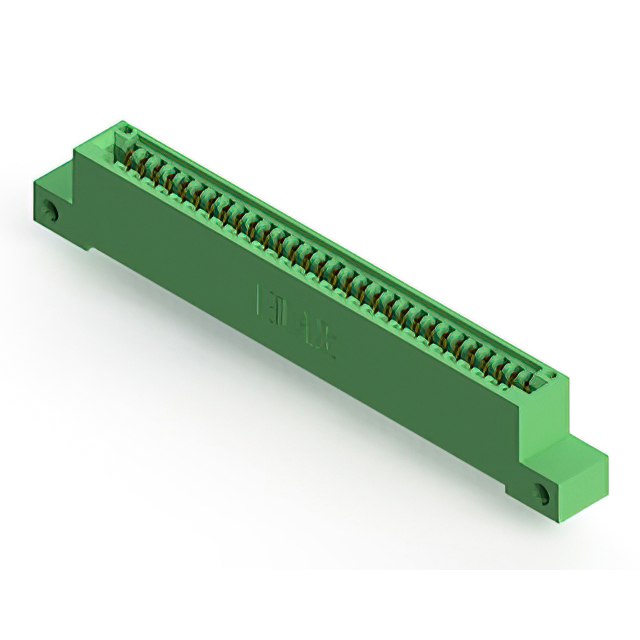

 EDAC Inc. | Diallyl Phthalate (DAP) | 30 | Through Hole | Copper Alloy | Wire Wrap | 125 °C | -40 C | Cantilever | Female | 30 | Non Specified - Single Edge | Gold | Single | 0.1 " | 2.54 mm | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | 1 | |||||

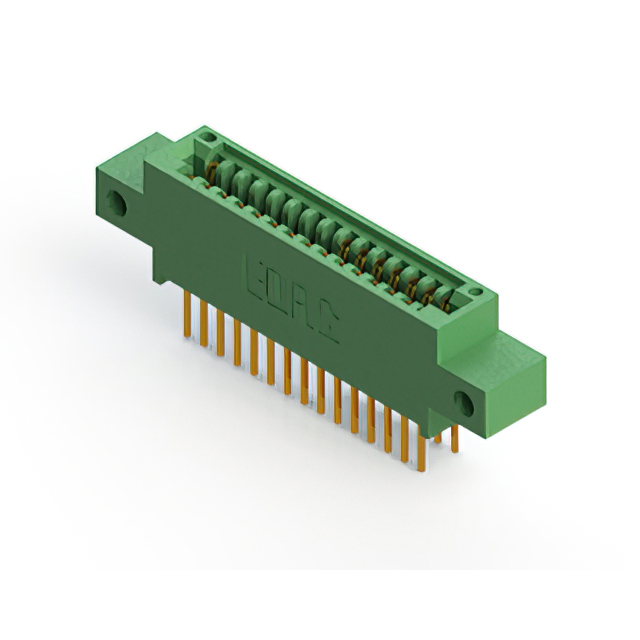

 EDAC Inc. | Diallyl Phthalate (DAP) | 30 | Right Angle Through Hole | Copper Alloy | Solder | Flush Mount Top Opening Unthreaded | 125 °C | -40 C | Cantilever | Female | 30 | Non Specified - Single Edge | Gold | Single | 0.1 " | 2.54 mm | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | 1 | 0.156 " | 3.96 mm | ||

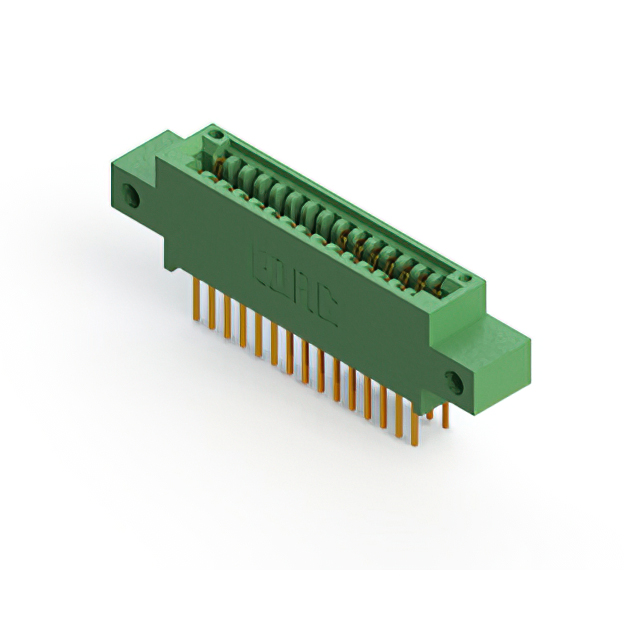

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 30 | Through Hole | Copper Alloy | Solder | Side Mount Opening Unthreaded | 125 °C | -40 C | Cantilever | Female | 15 | Non Specified - Dual Edge | Gold | Dual | 0.1 " | 2.54 mm | 2 | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | ||

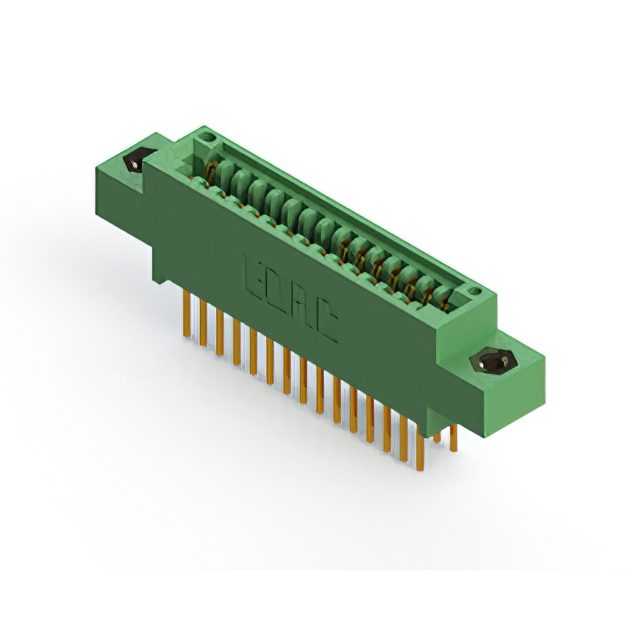

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 30 | Through Hole | Copper Alloy | Solder | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 C | Cantilever | Female | 15 | Non Specified - Dual Edge | Gold | Dual | 0.1 " | 2.54 mm | 2 | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | ||||

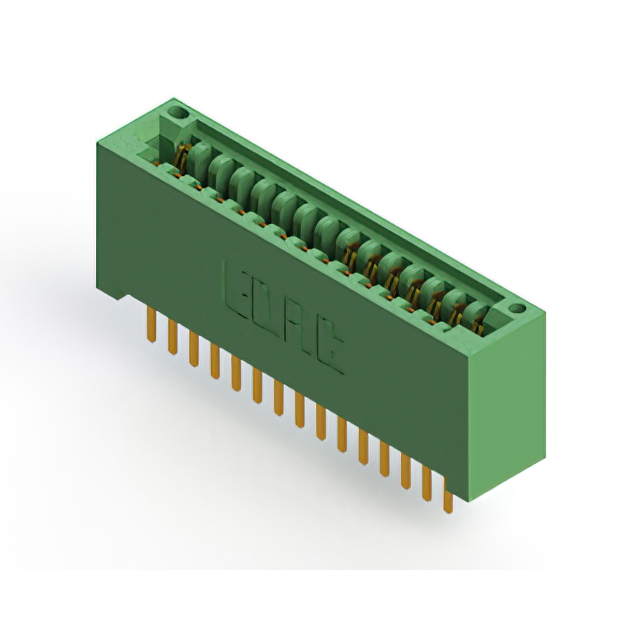

 EDAC Inc. | Diallyl Phthalate (DAP) | 30 | Through Hole | Copper Alloy | Solder | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -40 C | Cantilever | Female | 30 | Non Specified - Single Edge | Gold | Single | 0.1 " | 2.54 mm | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | 1 | ||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 30 | Through Hole | Copper Alloy | Solder | 125 °C | -40 C | Cantilever | Female | 15 | Non Specified - Dual Edge | Gold | Dual | 0.1 " | 2.54 mm | 2 | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | |||||

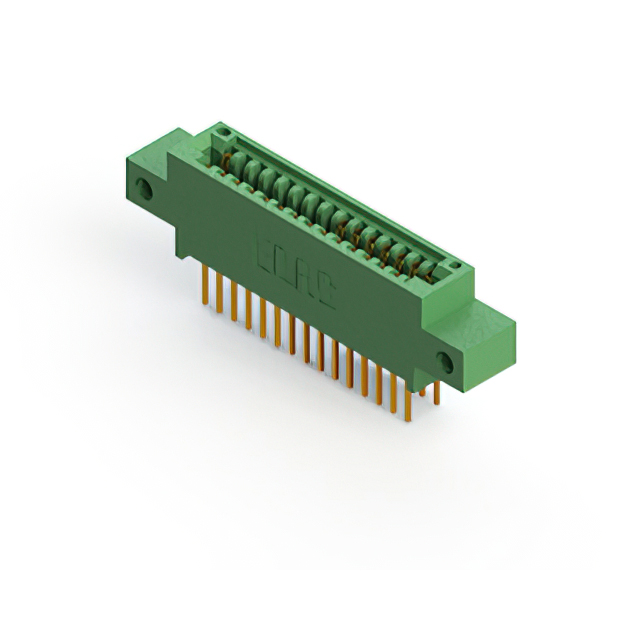

 EDAC Inc. | Diallyl Phthalate (DAP) | 30 | Through Hole | Copper Alloy | Solder | Flush Mount Side Opening Unthreaded | 125 °C | -40 C | Cantilever | Female | 30 | Non Specified - Single Edge | Gold | Single | 0.1 " | 2.54 mm | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | 1 | 0.128 " | 3.25 mm | ||

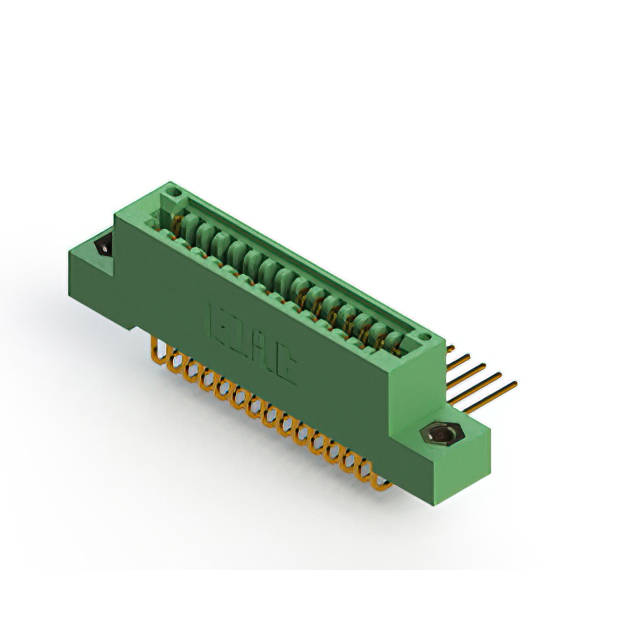

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 30 | Through Hole | Copper Alloy | Wire Wrap | Side Mount Opening Unthreaded | 125 °C | -40 C | Cantilever | Female | 15 | Non Specified - Dual Edge | Gold | Dual | 0.1 " | 2.54 mm | 2 | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 30 | Through Hole | Copper Alloy | Solder | Flush Mount Side Opening Unthreaded | 125 °C | -40 C | Cantilever | Female | 15 | Non Specified - Dual Edge | Gold | Dual | 0.1 " | 2.54 mm | 2 | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm |
