315-020 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 20POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Features	Card Type	Read Out	Pitch	Pitch	Number of Positions	Contact Type	Mounting Type	Contact Material	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Rows [custom]	Termination	Contact Finish	Color	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

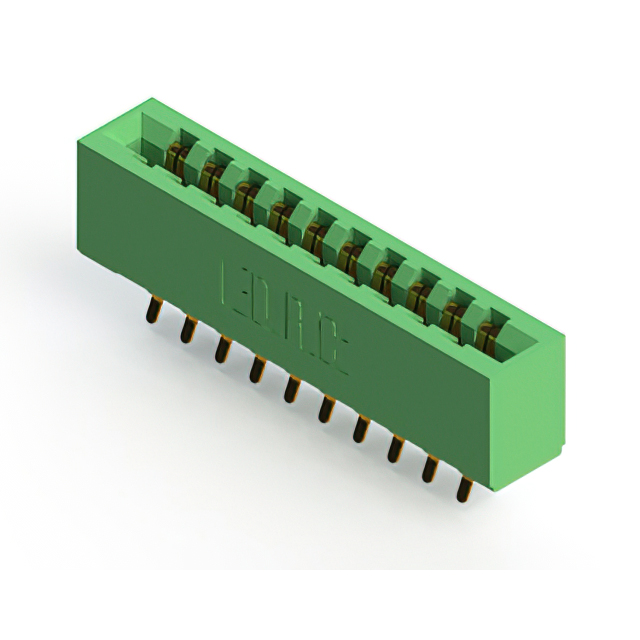

EDAC Inc. 315-020-556-201	2	Polyester Thermoplastic	-40 C	105 ░C	Card Extender	Non Specified - Dual Edge	Dual	3.96 mm	0.156 in	20	Semi Bellows	Board Edge Straddle Mount	Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	2	Solder	Gold	Green

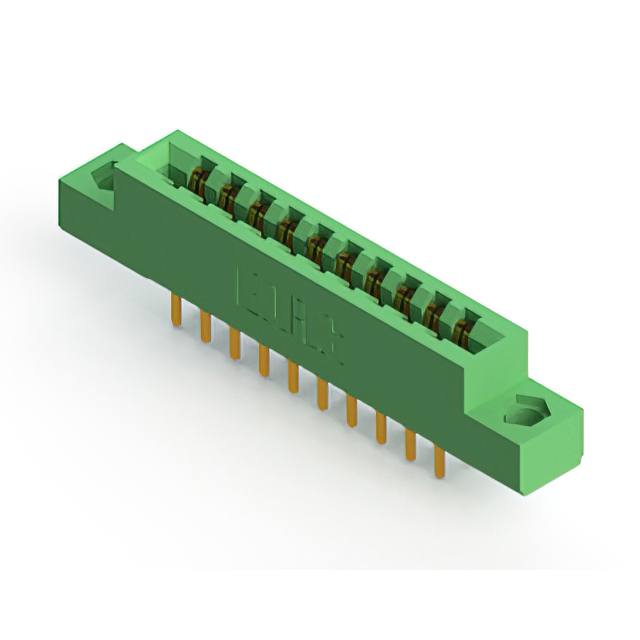

EDAC Inc. 315-020-520-204	2	Polyester Thermoplastic	-40 C	105 ░C		Non Specified - Dual Edge	Dual	3.96 mm	0.156 in	20	Semi Bellows	Panel Mount Through Hole	Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	2	Solder	Gold	Green	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm

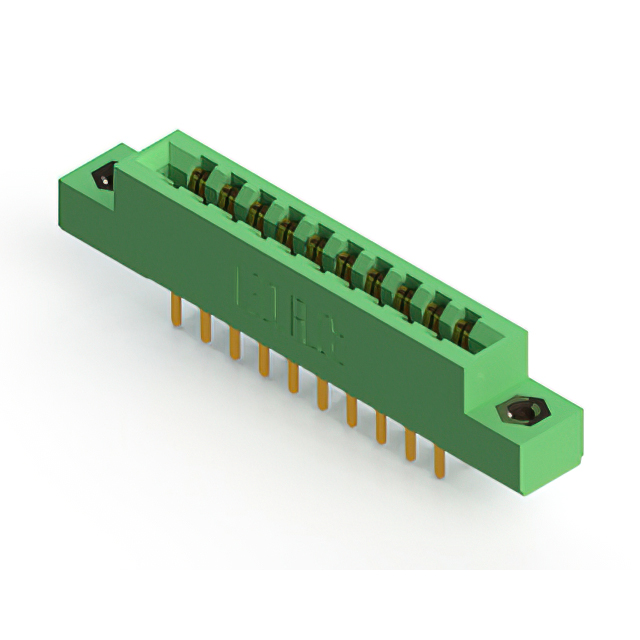

EDAC Inc. 315-020-520-208	2	Polyester Thermoplastic	-40 C	105 ░C		Non Specified - Dual Edge	Dual	3.96 mm	0.156 in	20	Semi Bellows	Panel Mount Through Hole	Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	2	Solder	Gold	Green	4-40 Flush Mount Threaded Insert Top Opening

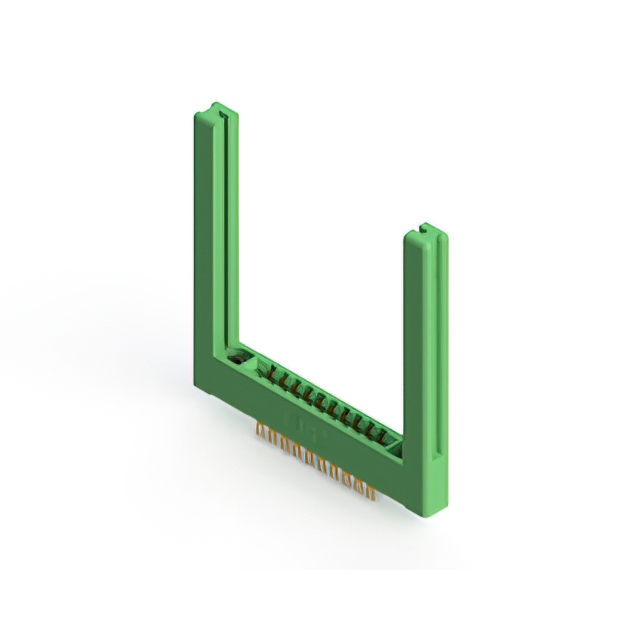

EDAC Inc. 315-020-500-258	2	Polyester Thermoplastic	-40 C	105 ░C		Non Specified - Dual Edge	Dual	3.96 mm	0.156 in	20	Semi Bellows	Panel Mount	Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	2	Solder Eyelet(s)	Gold	Green	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 315-020-520-268	2	Polyester Thermoplastic	-40 C	105 ░C		Non Specified - Dual Edge	Dual	3.96 mm	0.156 in	20	Semi Bellows	Panel Mount Through Hole	Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	2	Solder	Gold	Green	4-40 Flush Mount Threaded Insert Top Opening

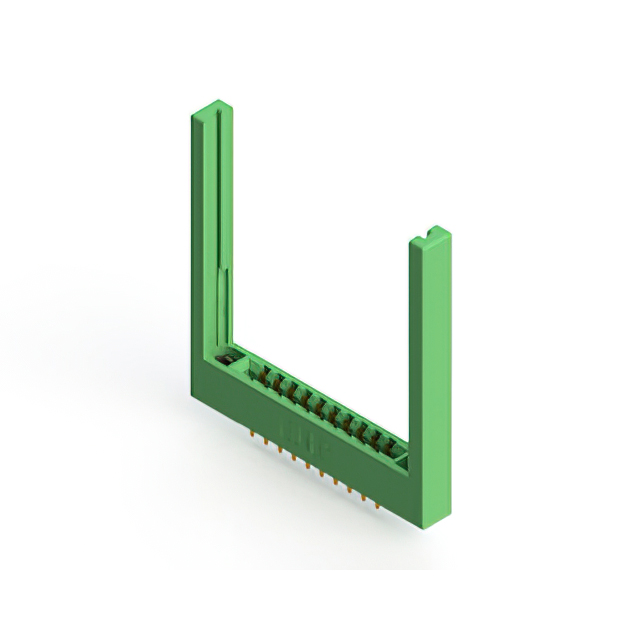

EDAC Inc. 315-020-521-268	2	Polyester Thermoplastic	-40 C	105 ░C		Non Specified - Dual Edge	Dual	3.96 mm	0.156 in	20	Semi Bellows	Panel Mount Through Hole	Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	2	Solder	Gold	Green	4-40 Flush Mount Threaded Insert Top Opening

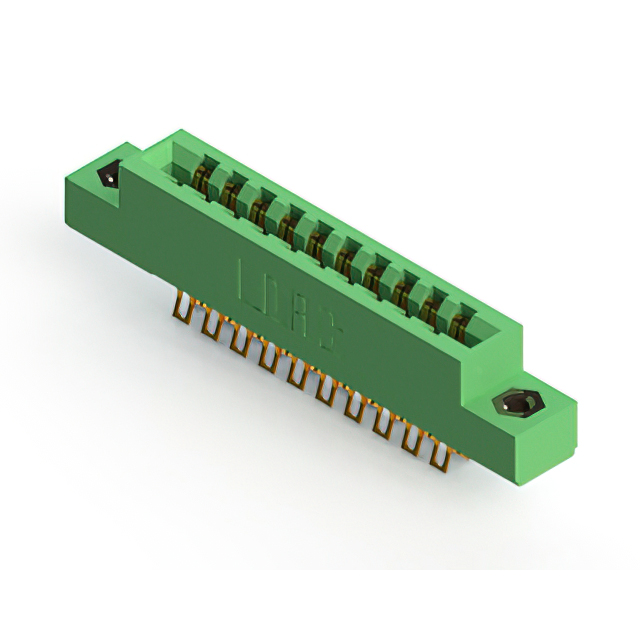

EDAC Inc. 315-020-555-208	2	Polyester Thermoplastic	-40 C	105 ░C	Card Extender	Non Specified - Dual Edge	Dual	3.96 mm	0.156 in	20	Semi Bellows	Board Edge Straddle Mount	Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	2	Solder	Gold	Green	4-40 Flush Mount Threaded Insert Top Opening

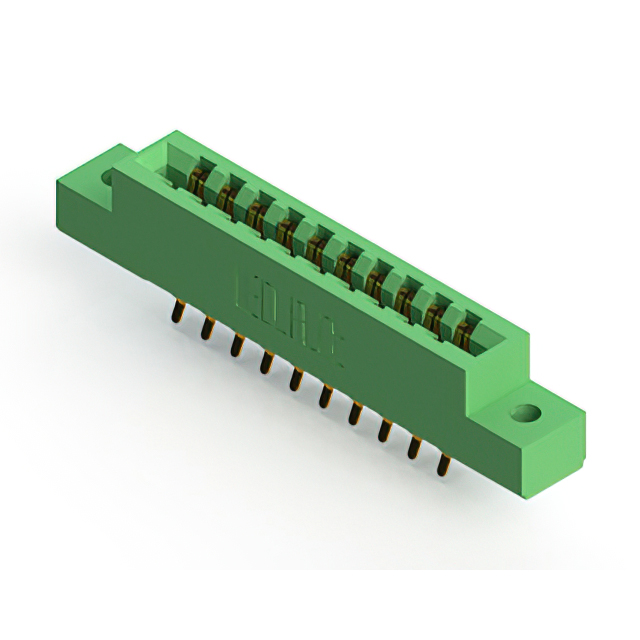

EDAC Inc. 315-020-556-202	2	Polyester Thermoplastic	-40 C	105 ░C	Card Extender	Non Specified - Dual Edge	Dual	3.96 mm	0.156 in	20	Semi Bellows	Board Edge Straddle Mount	Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	2	Solder	Gold	Green	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm

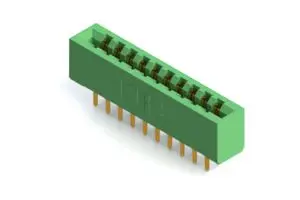

EDAC Inc. 315-020-520-201	2	Polyester Thermoplastic	-40 C	105 ░C		Non Specified - Dual Edge	Dual	3.96 mm	0.156 in	20	Semi Bellows	Through Hole	Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	2	Solder	Gold	Green

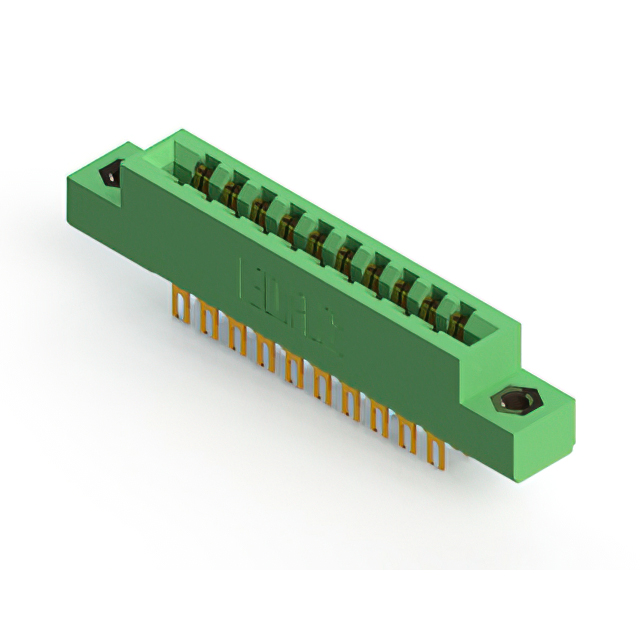

EDAC Inc. 315-020-500-207	2	Polyester Thermoplastic	-40 C	105 ░C		Non Specified - Dual Edge	Dual	3.96 mm	0.156 in	20	Semi Bellows	Panel Mount	Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	2	Solder Eyelet(s)	Gold	Green	Flush Mount M3 Threaded Insert Top Opening
