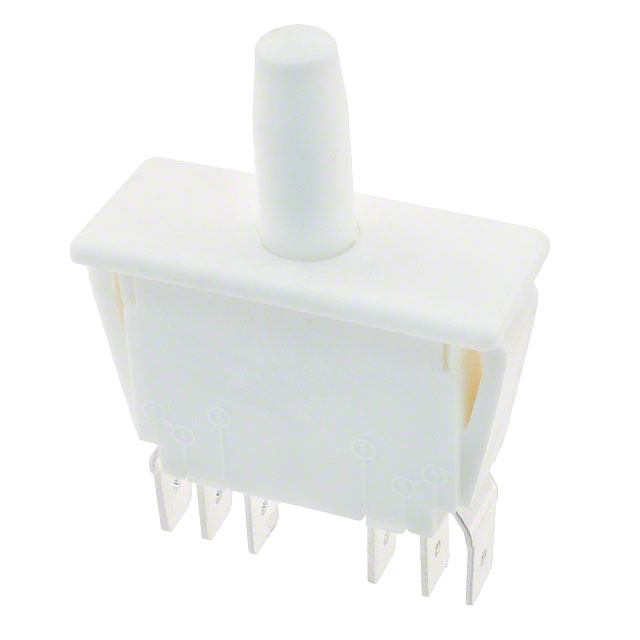

PP2-4H7 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH DETECTOR DPDT 16A 125V
| Part | Features | Actuator Type | Circuit | Voltage Rating - AC | Mounting Type | Operating Position | Operating Position | Switch Function | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Electrical Life | Mechanical Life | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | White Actuator | Round (Pin Plunger) | DPDT | 125 V | Panel Mount Snap-In | 0.345 in | 8.8 mm | On-Mom | Quick Connect - 0.250" (6.3mm) | 0 °C | 85 °C | 16 A | 6000 Cycles | 50000 Cycles | |
 E-Switch | White Actuator | Round (Pin Plunger) | DPDT | 125 V | Panel Mount Snap-In | 0.74 in | 18.8 mm | On-Mom | Quick Connect - 0.250" (6.3mm) | 0 °C | 85 °C | 16 A | 6000 Cycles | 50000 Cycles | 340 gf |
