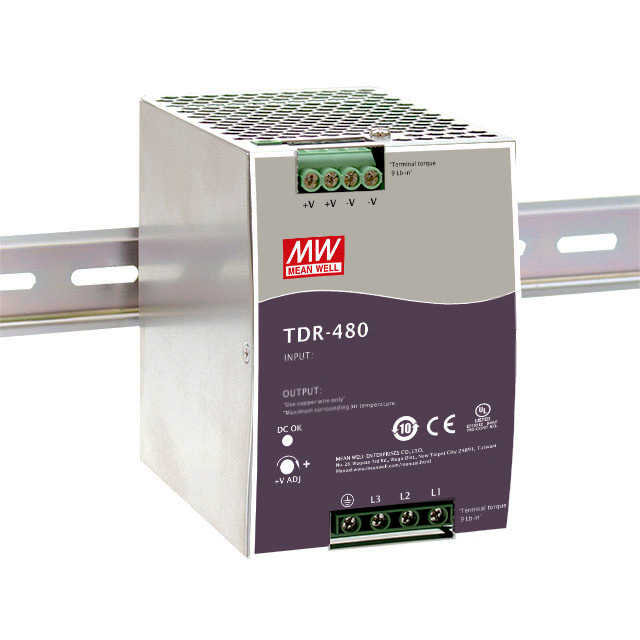

TDR-480 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC DIN RAIL SUPPLY 48V 480W
| Part | Minimum Load Required | Applications | Current - Output (Max) [Max] | Voltage - Isolation | Power (Watts) | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Input Type | Number of Outputs | Features | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output 1 | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Industrial ITE (Commercial) | 10 A | 3000 V | 480 W | 340 VAC | 550 VAC | AC | 1 | Adjustable Output PFC | 93 % | -30 °C | 70 °C | 5.06 " | 125.2 mm | 3.37 in | 128.5 mm | 4.93 in | 85.5 mm | 48 V | CB CE cULus | |
MEAN WELL USA Inc. | Industrial ITE (Commercial) | 20 A | 3000 V | 480 W | 340 VAC | 550 VAC | AC | 1 | Adjustable Output PFC | 92.5 % | -30 °C | 70 °C | 5.06 " | 125.2 mm | 3.37 in | 128.5 mm | 4.93 in | 85.5 mm | 24 V | CB CE cULus |
