M9MZ90 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

STANDARD MTR 1650 RPM 200/220V

Part	Function	Power - Rated	Approval Agency	Voltage - Rated	Mounting Hole Spacing [x]	Mounting Hole Spacing [x]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	RPM	Termination Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Torque - Rated (oz-in / mNm)	Weight	Weight	Length - Shaft and Bearing
Panasonic Industrial Automation Sales M9MZ90S4YS	Standard	90 W	CCC CE cURus	200 VAC 220 VAC	104 mm	4.094 "	37 mm	1.457 in	-10 °C	40 °C	520 mNm	73.64 oz-in	1650 RPM	Wire Leads	90 mm	3.543 "	90 mm	3.543 in	AC Motor	11 mm	0.433 in
Panasonic Industrial Automation Sales M9MZ90SK4YGA	Standard	90 W	CCC CE cURus	220 VAC	104 mm	4.094 "	37 mm	1.457 in	-10 °C	40 °C		510 mNm	1675 RPM	Connector	90 mm	3.543 "	90 mm	3.543 in	AC Motor	11 mm	0.433 in	72.22 oz-in
Panasonic Industrial Automation Sales M9MZ90SB4YGA	Standard	90 W	CCC CE cURus		104 mm	4.094 "	37 mm	1.457 in	-10 °C	40 °C		510 mNm	1675 RPM	Wire Leads	90 mm	3.543 "	90 mm	3.543 in	AC Motor	11 mm	0.433 in	72.22 oz-in
Panasonic Industrial Automation Sales M9MZ90GB4YGA	Standard	90 W	CCC CE UL	200 VAC 220 VAC	104 mm	4.094 "	20.5 mm	0.807 "	-10 °C	40 °C	520 mNm	73.64 oz-in	1650 RPM	Wire Leads	90 mm	3.543 "	90 mm	3.543 in	AC Motor
Panasonic Industrial Automation Sales M9MZ90S2YGA	Standard	90 W	CCC CE UL	200 VAC 220 VAC	104 mm	4.094 "	37 mm	1.457 in	-10 °C	40 °C		260 mNm	3300 RPM	Wire Leads	90 mm	3.543 "	90 mm	3.543 in	AC Motor	11 mm	0.433 in	36.82 oz-in

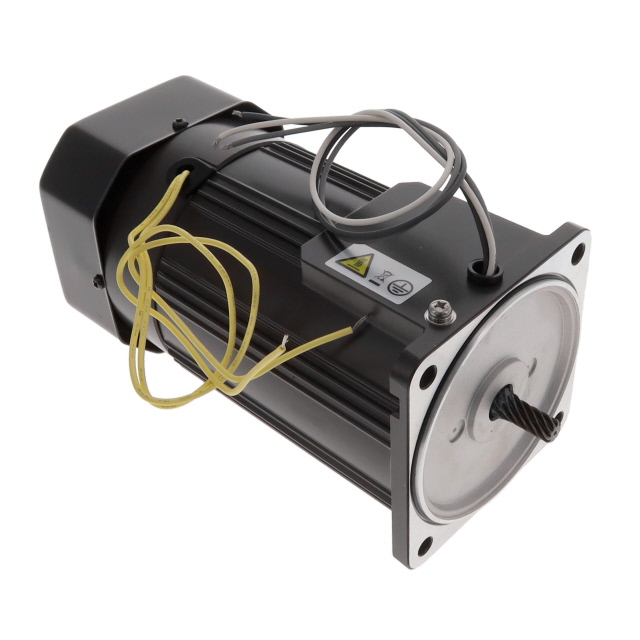

Panasonic Industrial Automation Sales M9MZ90GB4Y	Standard	90 W	CCC CE cURus	200 VAC 220 VAC	104 mm	4.094 "	20.5 mm	0.807 "	-10 °C	40 °C	520 mNm	73.64 oz-in	1650 RPM	Wire Leads	90 mm	3.543 "	90 mm	3.543 in	AC Motor
Panasonic Industrial Automation Sales M9MZ90GK4Y	Standard	90 W	CCC CE cURus	200 VAC 220 VAC	104 mm	4.094 "	20.5 mm	0.807 "	-10 °C	40 °C	520 mNm	73.64 oz-in	1650 RPM	Connector	90 mm	3.543 "	90 mm	3.543 in	AC Motor
Panasonic Industrial Automation Sales M9MZ90GK4CGA	Standard	90 W	CCC CE cULus	230 VAC	104 mm	4.094 "		0.079 in	-10 °C	40 °C		640 mNm		Connector	90 mm	3.543 "	90 mm	3.543 in	AC Motor			90.65 oz-in	3.3 kg	7.2 lbs	2 mm

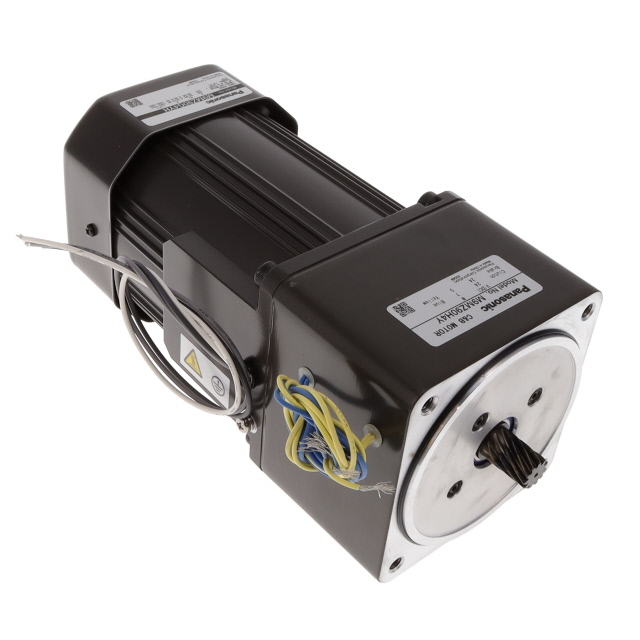

Panasonic Industrial Automation Sales M9MZ90H4Y	Standard	90 W	CCC CE cURus	200 VAC 220 VAC	104 mm	4.094 "			-10 °C	40 °C	520 mNm	73.64 oz-in	1650 RPM	Wire Leads	90 mm	3.543 "	90 mm	3.543 in	AC Motor
Panasonic Industrial Automation Sales M9MZ90G4Y	Standard	90 W	CCC CE cURus	200 VAC 220 VAC	104 mm	4.094 "	20.5 mm	0.807 "	-10 °C	40 °C	520 mNm	73.64 oz-in	1650 RPM	Wire Leads	90 mm	3.543 "	90 mm	3.543 in	AC Motor
