PWR163S Series

Catalog

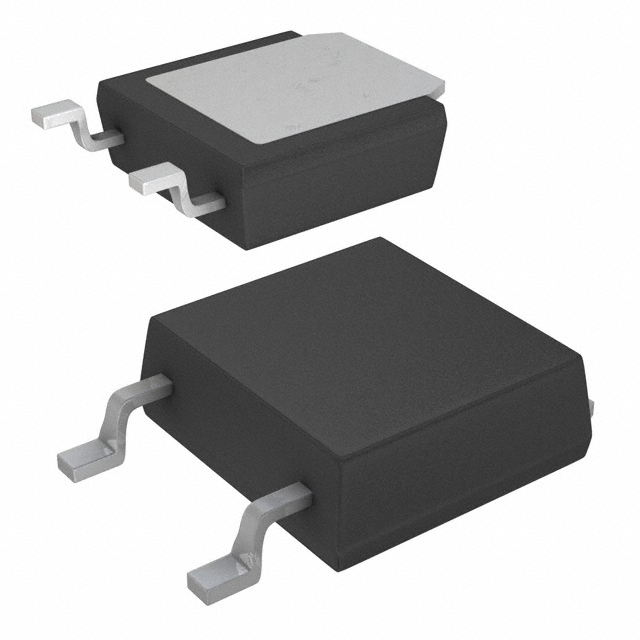

RES SMD 56K OHM 1% 25W DPAK

...

Part	Tolerance	Package / Case	Number of Terminations [custom]	Resistance	Features	Power (Watts)	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Supplier Device Package	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Bourns Inc. PWR163S-25-5602F	1 %	Non-Standard DPAK	2	56 kOhms	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 C	-55 C	AEC-Q200	DPAK Style	100 ppm/°C	3.17 mm	0.125 in	8.22 mm	0.324 in	0.32 "	8.13 mm
Bourns Inc. PWR163S-25-R033J	5 %	Non-Standard DPAK	2	33 mOhms	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 C	-55 C	AEC-Q200	DPAK Style	100 ppm/°C	3.17 mm	0.125 in	8.22 mm	0.324 in	0.32 "	8.13 mm
Bourns Inc. PWR163S-25-5R00F	1 %	Non-Standard DPAK	2	5 Ohms	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 C	-55 C	AEC-Q200	DPAK Style	100 ppm/°C	3.17 mm	0.125 in	8.22 mm	0.324 in	0.32 "	8.13 mm
Bourns Inc. PWR163S-25-50R0F	1 %	Non-Standard DPAK	2	50 Ohms	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 C	-55 C	AEC-Q200	DPAK Style	100 ppm/°C	3.17 mm	0.125 in	8.22 mm	0.324 in	0.32 "	8.13 mm
Bourns Inc. PWR163S-25-1R50J	5 %	Non-Standard DPAK	2	1.5 Ohms	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 C	-55 C	AEC-Q200	DPAK Style	100 ppm/°C	3.17 mm	0.125 in	8.22 mm	0.324 in	0.32 "	8.13 mm
Bourns Inc. PWR163S-25-4R70J	5 %	Non-Standard DPAK	2	4.7 Ohms	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 C	-55 C	AEC-Q200	DPAK Style	100 ppm/°C	3.17 mm	0.125 in	8.22 mm	0.324 in	0.32 "	8.13 mm
Bourns Inc. PWR163S-25-7500FE	1 %	Non-Standard DPAK	2	750 Ohms	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 C	-55 C	AEC-Q200	DPAK Style	100 ppm/°C	3.17 mm	0.125 in	8.22 mm	0.324 in	0.32 "	8.13 mm
Bourns Inc. PWR163S-25-1802FE	1 %	Non-Standard DPAK	2	18 kOhms	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 C	-55 C	AEC-Q200	DPAK Style	100 ppm/°C	3.17 mm	0.125 in	8.22 mm	0.324 in	0.32 "	8.13 mm
Bourns Inc. PWR163S-25-5R00FE	1 %	Non-Standard DPAK	2	5 Ohms	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 C	-55 C	AEC-Q200	DPAK Style	100 ppm/°C	3.17 mm	0.125 in	8.22 mm	0.324 in	0.32 "	8.13 mm
Bourns Inc. PWR163S-25-R040JE	5 %	Non-Standard DPAK	2		Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 C	-55 C	AEC-Q200	DPAK Style	100 ppm/°C	3.17 mm	0.125 in	8.22 mm	0.324 in	0.32 "	8.13 mm
