0E72 Series
Manufacturer: ZF Electronics
Beta
⌘K

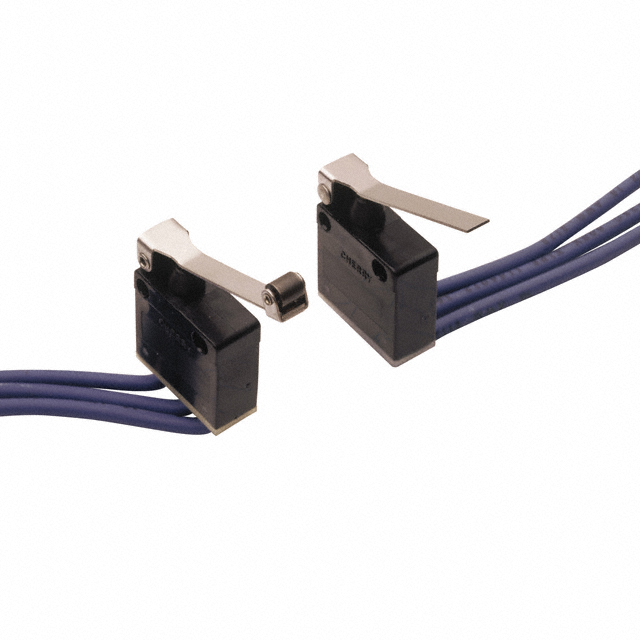

MICROSWITCH, SUBMINIATURE, ROLLER LEVER, SPDT, WIRE LEADED, 10.1 A
| Part | Circuit | Termination Style | Operating Position | Operating Position | Switch Function | Differential Travel | Differential Travel | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Electrical Life | Current Rating (Amps) | Pretravel | Pretravel | Operating Force | Voltage Rating - AC | Overtravel [custom] | Overtravel [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | SPDT | Wire Leads | 19.35 mm | 0.762 in | On-Mom | 0.025 in | 0.6 mm | 85 °C | -40 C | Lever Roller | 6000 Cycles | 10 A | 6.1 mm | 0.24 in | 75 gf | 125 V | 0.125 in | 3.2 mm | Chassis Mount |
