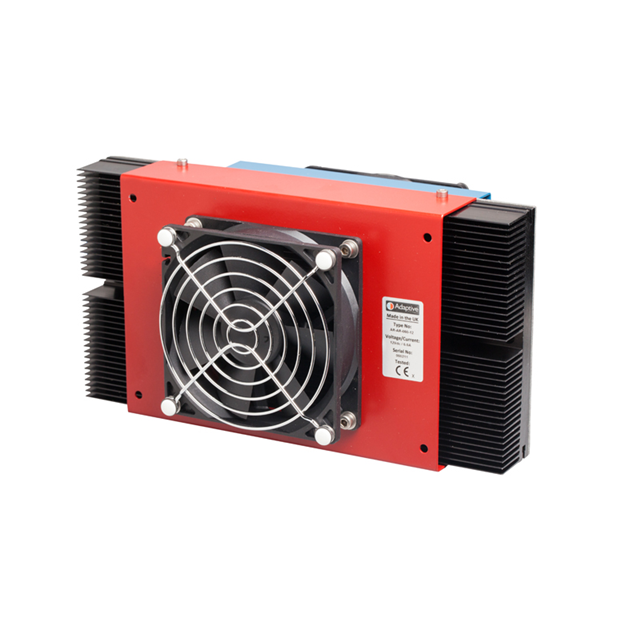

AR-AR-070 Series
Manufacturer: European Thermodynamics Ltd
Beta
⌘K
TE ASSY,AA,70W,24VDC
| Part | Power - Input | Dimensions - Overall [x] | Dimensions - Overall [z] | Dimensions - Overall [y] | Current | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Fan Location | Weight | Weight | Power - Cooling | Heat Transfer Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 European Thermodynamics Ltd | 84 W 88.8 W | 230 mm | 138.6 mm 150.7 mm | 122 mm 125.7 mm | 3.5 A 4.8 A | 24 V | 50 °C | -10 °C | Cold Side Warm Side | 5.5 lbs | 2.5 kg | 57 W | Air to Air |
