ATS-FPX Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

HEATSINK 30X30X20MM L-TAB FP

...

Part	Material	Material Finish	Type	Thermal Resistance @ Forced Air Flow	Package Cooled	Shape	Fin Height [z]	Fin Height [z]	Width [x]	Width [x]	Length	Length	Attachment Method	Width [y]	Width [y]	Fin Height [custom]	Fin Height [custom]	Length [x]	Fin Height	Fin Height	Length [x]	Width	Width

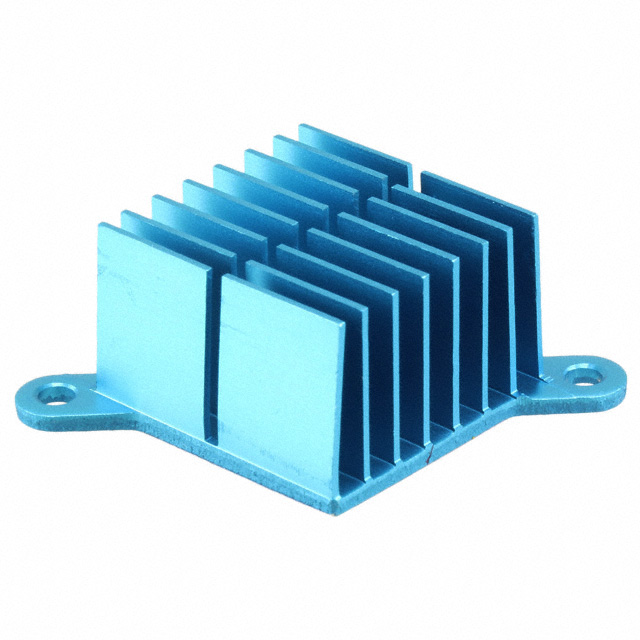

Advanced Thermal Solutions Inc. ATS-FPX030030020-51-C3-R0	Aluminum	Blue Anodized	Top Mount	14.22 °C/W	ASIC BGA CPU LGA	Fins Square	20 mm	0.79 in	30 mm	1.181 in	0.03 m	1.181 in	Push Pin

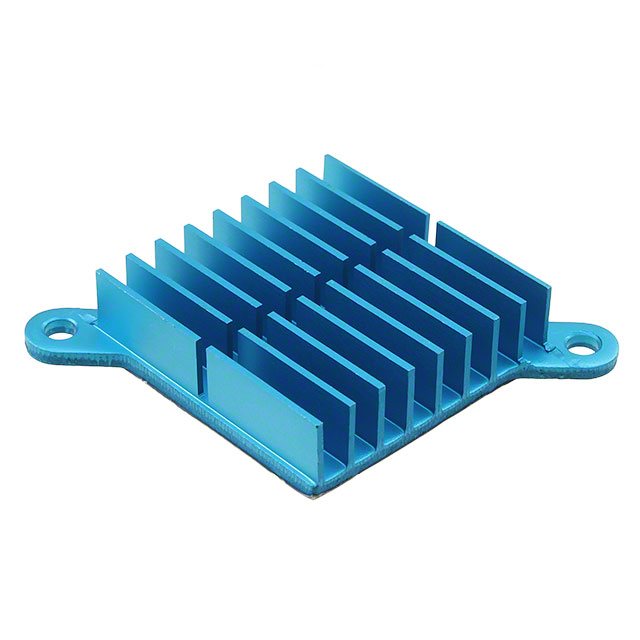

Advanced Thermal Solutions Inc. ATS-FPX035035010-55-C3-R0	Aluminum	Blue Anodized	Top Mount	24.11 °C/W	ASIC BGA CPU LGA	Fins Square					35 mm		Push Pin	1.378 "	35 mm	0.394 "	10 mm	1.378 "

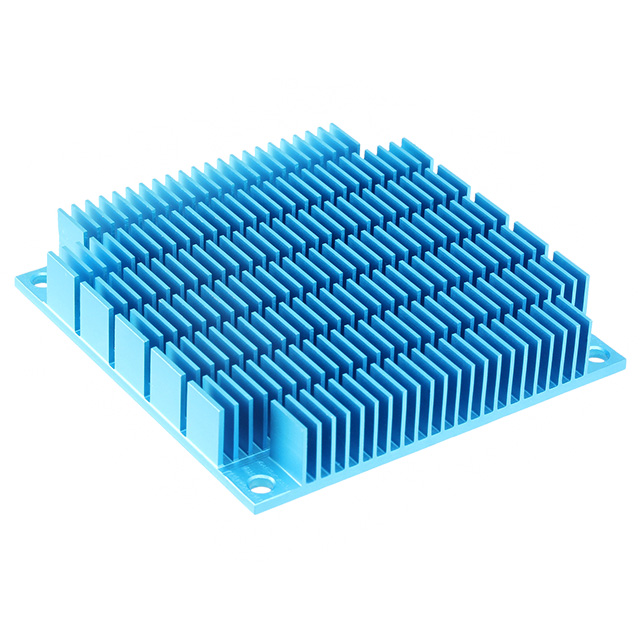

Advanced Thermal Solutions Inc. ATS-FPX070070013-27-C2-R0	Aluminum	Blue Anodized	Top Mount	12.24 °C/W	ASIC BGA CPU LGA	Fins Square			70 mm	2.756 "			Push Pin					2.756 in	0.5 "	12.7 mm	70 mm

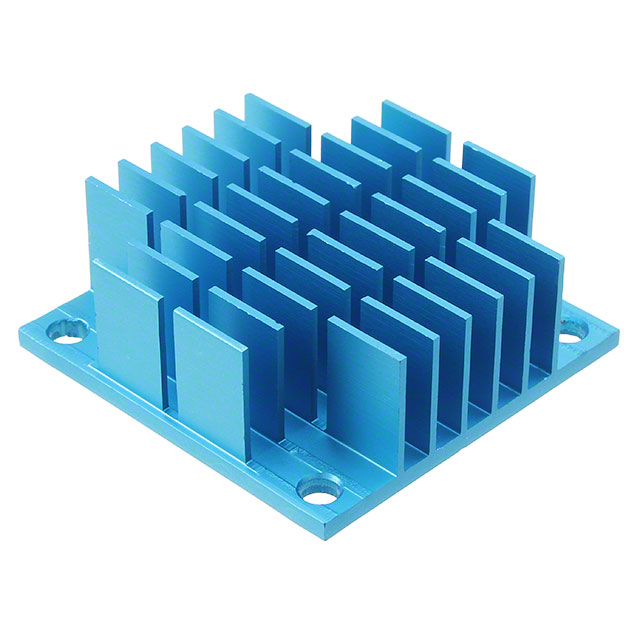

Advanced Thermal Solutions Inc. ATS-FPX040040015-92-C1-R0	Aluminum	Blue Anodized	Top Mount	16.45 °C/W	ASIC BGA CPU LGA	Fins Square	15 mm	0.59 in					Push Pin	1.575 in	40 mm

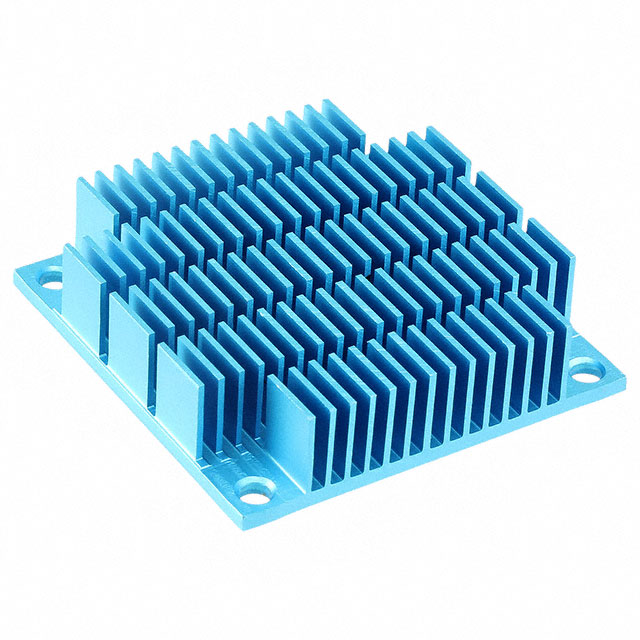

Advanced Thermal Solutions Inc. ATS-FPX050050013-12-C1-R0	Aluminum	Blue Anodized	Top Mount	15.84 °C/W	ASIC BGA CPU LGA	Fins Square			50 mm	1.969 in			Push Pin					1.969 in	0.5 "	12.7 mm	50 mm

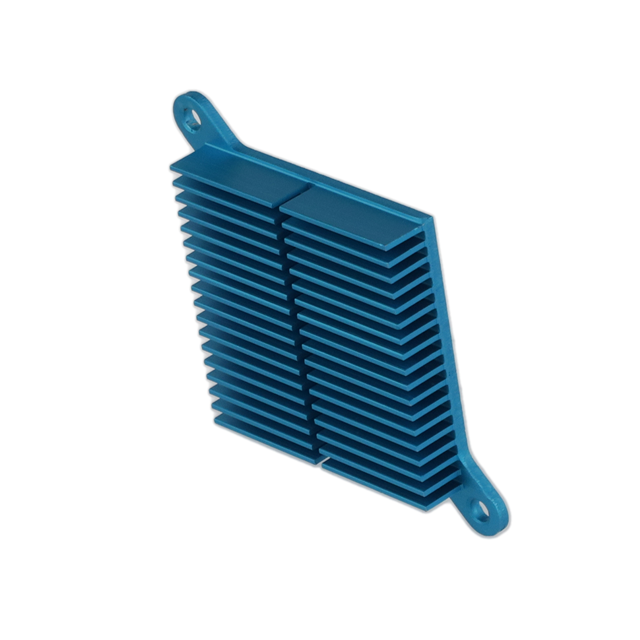

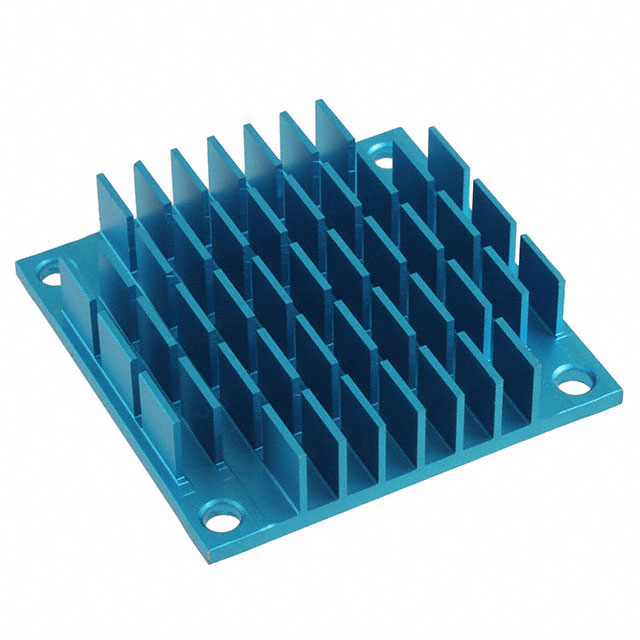

Advanced Thermal Solutions Inc. ATS-FPX045045010-97-C1-R0	Aluminum	Blue Anodized	Top Mount	20.28 °C/W	ASIC BGA CPU LGA	Fins Square							Push Pin			0.394 "	10 mm	1.772 in			45 mm	1.772 in	45 mm

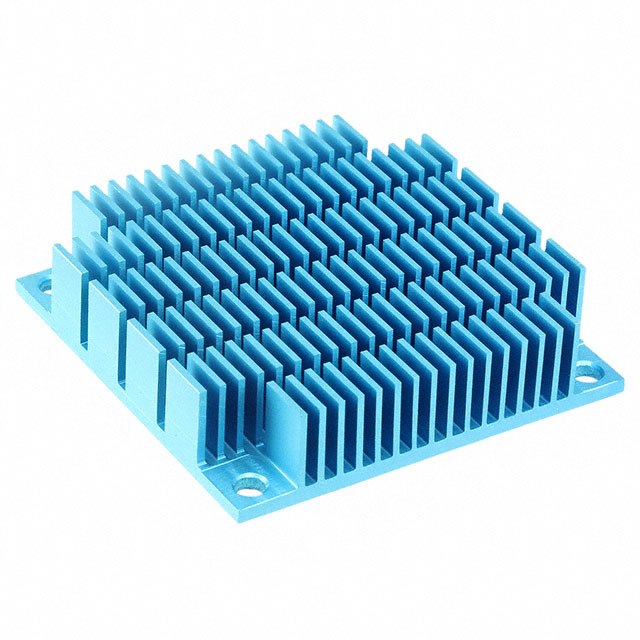

Advanced Thermal Solutions Inc. ATS-FPX054054013-17-C3-R0	Aluminum	Blue Anodized	Top Mount	15.51 °C/W	ASIC BGA CPU LGA	Fins Square			54 mm	2.126 in	54 mm	2.126 in	Push Pin						0.5 "	12.7 mm

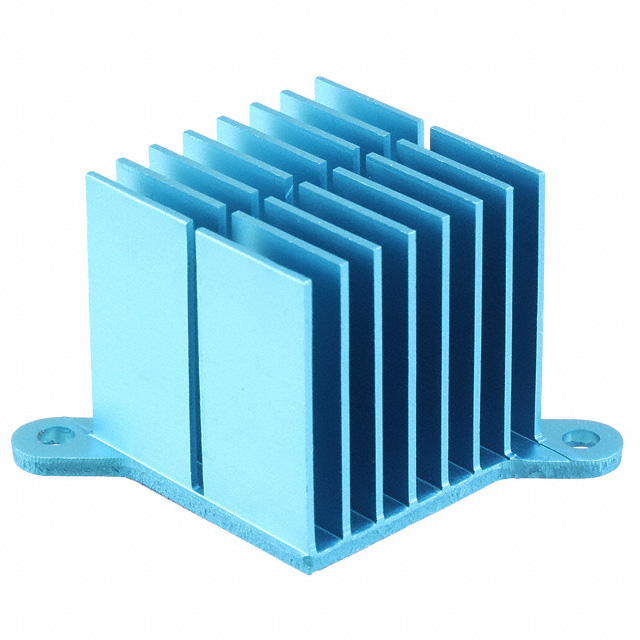

Advanced Thermal Solutions Inc. ATS-FPX030030030-53-C1-R0	Aluminum	Blue Anodized	Top Mount	8.52 °C/W	ASIC BGA CPU LGA	Fins Square	30 mm	1.181 in	30 mm	1.181 in	0.03 m	1.181 in	Push Pin

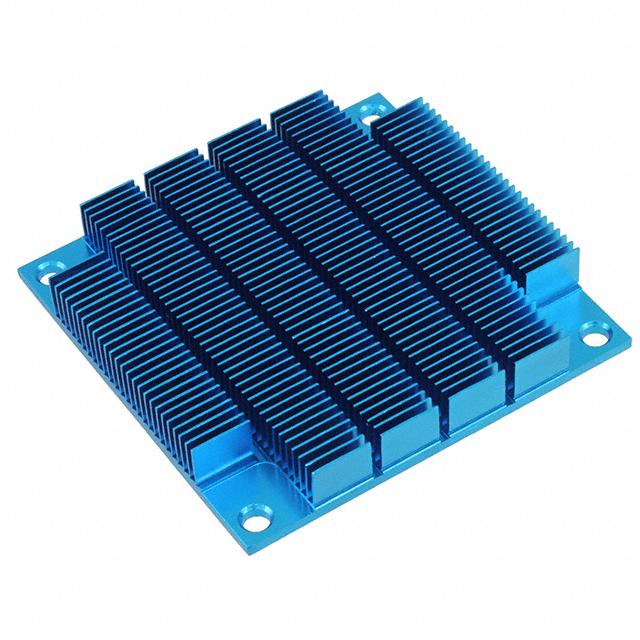

Advanced Thermal Solutions Inc. ATS-FPX060060010-111-C3-R1	Aluminum	Blue Anodized	Top Mount Skived	26.82 °C/W	ASIC BGA CPU LGA	Fins Square							Push Pin	2.362 in	60 mm			2.362 in	0.374 in	9.5 mm	60 mm

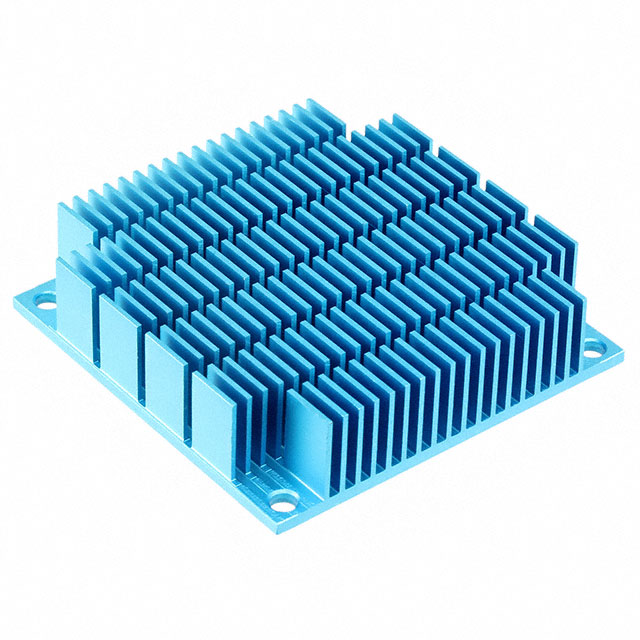

Advanced Thermal Solutions Inc. ATS-FPX060060015-23-C2-R0	Aluminum	Blue Anodized	Top Mount	12.01 °C/W	ASIC BGA CPU LGA	Fins Square	15 mm	0.59 in					Push Pin	2.362 in	60 mm			2.362 in			60 mm
