4116R Series
Manufacturer: Bourns Inc.
Beta
⌘K

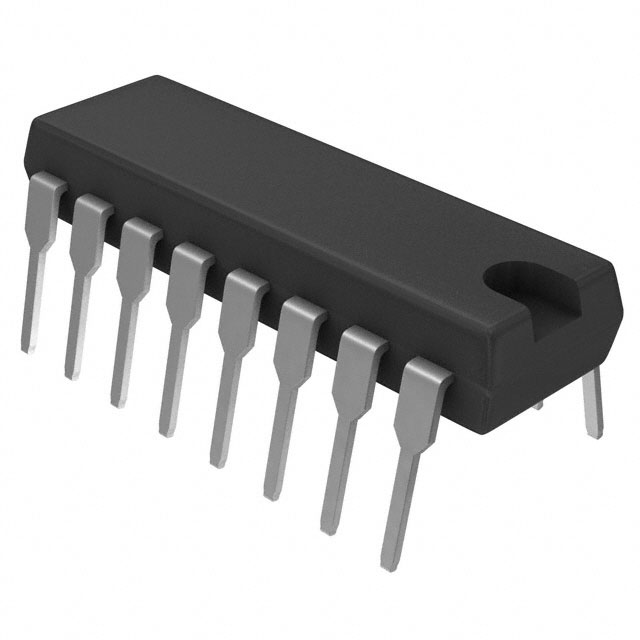

RES ARRAY 15 RES 120 OHM 16DIP
| Part | Circuit Type | Mounting Type | Temperature Coefficient | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Number of Pins | Package / Case [x] | Package / Case | Package / Case [x] | Resistor-Ratio-Drift | Operating Temperature [Min] | Operating Temperature [Max] | Power Per Element | Number of Resistors | Tolerance | Supplier Device Package | Resistance (Ohms) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Bussed | Through Hole | 100 ppm/°C | 0.3 " | 7.62 mm | 0.865 in | 21.97 mm | 16 | 0.3 in | 16-DIP | 7.62 mm | 50 ppm/°C | -55 C | 125 °C | 125 mW | 15 | 2 % | 16-DIP | 120 Ohms | 0.185 in | 4.69 mm | |||
 Bourns Inc. | Isolated | Through Hole | 250 ppm/°C | 0.3 " | 7.62 mm | 0.865 in | 21.97 mm | 16 | 0.3 in | 16-DIP | 7.62 mm | 50 ppm/°C | -55 C | 125 °C | 250 mW | 8 | 16-DIP | 47 Ohms | 0.185 in | 4.69 mm | ±1Ohm | |||
Bourns Inc. | Isolated | Through Hole | 100 ppm/°C | 0.3 " | 7.62 mm | 0.865 in | 21.97 mm | 16 | 0.3 in | 16-DIP | 7.62 mm | 50 ppm/°C | -55 C | 125 °C | 250 mW | 8 | 2 % | 16-DIP | 0.185 in | 4.69 mm | 330 Ohms | |||
Bourns Inc. | Isolated | Through Hole | 250 ppm/°C | 0.3 " | 7.62 mm | 0.865 in | 21.97 mm | 16 | 0.3 in | 16-DIP | 7.62 mm | 50 ppm/°C | -55 C | 125 °C | 250 mW | 8 | 16-DIP | 38 Ohms | 0.185 in | 4.69 mm | ±1Ohm | |||
Bourns Inc. | Dual Terminator | Through Hole | 100 ppm/°C | 0.3 " | 7.62 mm | 0.865 in | 21.97 mm | 16 | 0.3 in | 16-DIP | 7.62 mm | 50 ppm/°C | -55 C | 125 °C | 125 mW | 28 | 2 % | 16-DIP | 0.185 in | 4.69 mm | 680 Ohms | |||
Bourns Inc. | Isolated | Through Hole | 100 ppm/°C | 0.3 " | 7.62 mm | 0.865 in | 21.97 mm | 16 | 0.3 in | 16-DIP | 7.62 mm | 50 ppm/°C | -55 C | 125 °C | 250 mW | 8 | 2 % | 16-DIP | 0.185 in | 4.69 mm | 4.7 kOhms | |||
Bourns Inc. | Isolated | Through Hole | 100 ppm/°C | 0.3 " | 7.62 mm | 0.865 in | 21.97 mm | 16 | 0.3 in | 16-DIP | 7.62 mm | 50 ppm/°C | -55 C | 125 °C | 250 mW | 8 | 2 % | 16-DIP | 51 kOhms | 0.185 in | 4.69 mm | |||
Bourns Inc. | Isolated | Through Hole | 100 ppm/°C | 0.3 " | 7.62 mm | 0.865 in | 21.97 mm | 16 | 0.3 in | 16-DIP | 7.62 mm | 50 ppm/°C | -55 C | 125 °C | 250 mW | 8 | 2 % | 16-DIP | 0.185 in | 4.69 mm | 4.8k | |||
Bourns Inc. | Dual Terminator | Through Hole | 100 ppm/°C | 0.3 " | 7.62 mm | 0.865 in | 21.97 mm | 16 | 0.3 in | 16-DIP | 7.62 mm | 50 ppm/°C | -55 C | 125 °C | 125 mW | 28 | 2 % | 16-DIP | 0.185 in | 4.69 mm | 160 Ohms 240 Ohms | |||
Bourns Inc. | Bussed | Through Hole | 100 ppm/°C | 0.3 " | 7.62 mm | 0.865 in | 21.97 mm | 16 | 0.3 in | 16-DIP | 7.62 mm | 50 ppm/°C | -55 C | 125 °C | 125 mW | 15 | 2 % | 16-DIP | 0.185 in | 4.69 mm | 4.7 kOhms |
