325-110 Series
Manufacturer: EDAC Inc.
Beta
⌘K

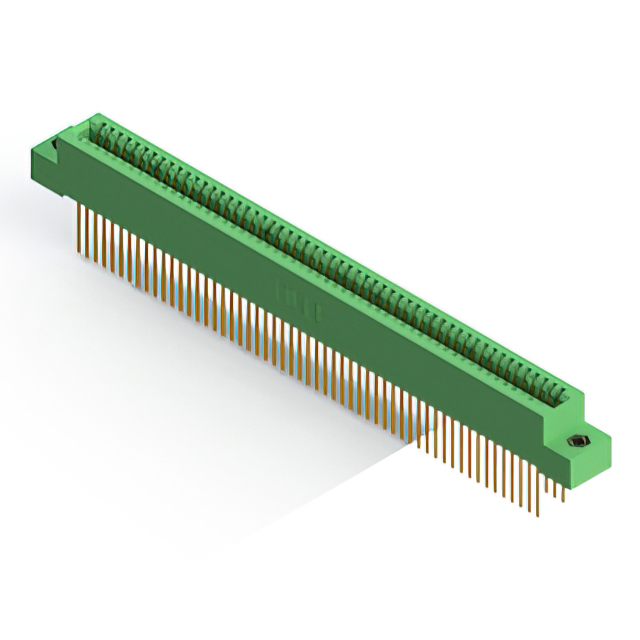

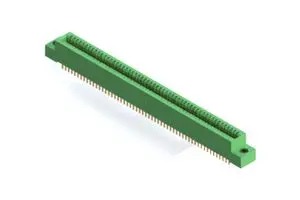

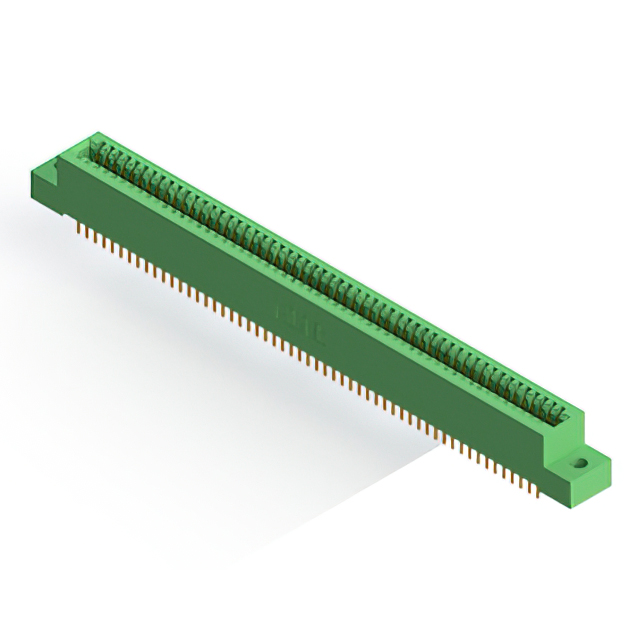

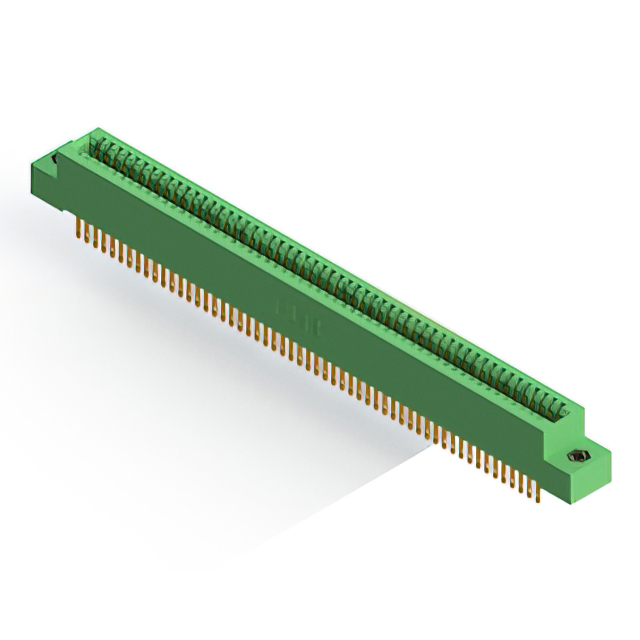

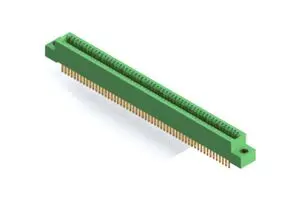

CONN EDGE DUAL FML 110POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Mounting Type | Card Type | Read Out | Pitch | Pitch | Gender | Contact Type | Card Thickness | Card Thickness | Number of Positions/Bay/Row | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Color | Flange Feature | Number of Rows [custom] | Contact Material | Contact Finish | Termination | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | Dual | 0.1 " | 2.54 mm | Female | Cantilever | 3.18 mm | 0.125 in | 55 | 110 | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Copper Alloy | Gold | Solder Eyelet(s) | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | Dual | 0.1 " | 2.54 mm | Female | Cantilever | 3.18 mm | 0.125 in | 55 | 110 | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Green | Flush Mount Top Opening Unthreaded | 2 | Copper Alloy | Gold | Solder | 0.16 " | 4.06 mm |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | Dual | 0.1 " | 2.54 mm | Female | Cantilever | 3.18 mm | 0.125 in | 55 | 110 | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Green | Flush Mount M3 Threaded Insert Top Opening | 2 | Copper Alloy | Gold | Solder | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | Dual | 0.1 " | 2.54 mm | Female | Cantilever | 3.18 mm | 0.125 in | 55 | 110 | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Copper Alloy | Gold | Solder | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | Dual | 0.1 " | 2.54 mm | Female | Cantilever | 3.18 mm | 0.125 in | 55 | 110 | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Green | Flush Mount M3 Threaded Insert Top Opening | 2 | Copper Alloy | Gold | Wire Wrap | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | Dual | 0.1 " | 2.54 mm | Female | Cantilever | 3.18 mm | 0.125 in | 55 | 110 | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Green | 2 | Copper Alloy | Gold | Solder | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | Dual | 0.1 " | 2.54 mm | Female | Cantilever | 3.18 mm | 0.125 in | 55 | 110 | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Green | Flush Mount M3 Threaded Insert Top Opening | 2 | Copper Alloy | Gold | Solder Eyelet(s) | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | Dual | 0.1 " | 2.54 mm | Female | Cantilever | 3.18 mm | 0.125 in | 55 | 110 | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Green | Flush Mount Top Opening Unthreaded | 2 | Copper Alloy | Gold | Wire Wrap | 0.16 " | 4.06 mm |
