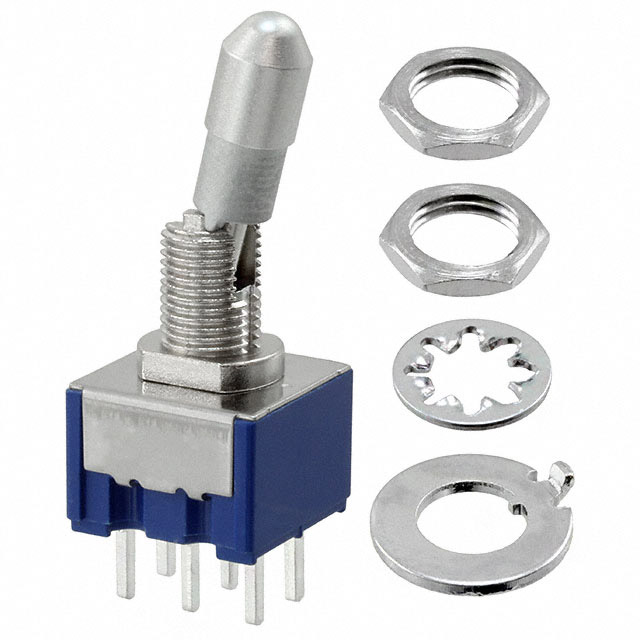

8E2012 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH TOGGLE DPDT 25MA 20V
| Part | Electrical Life | Voltage Rating - DC | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Bushing Thread | Mounting Type | Panel Cutout Dimensions [diameter] | Switch Function | Features | Actuator Length [x] | Circuit | Current Rating (Amps) | Illumination | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

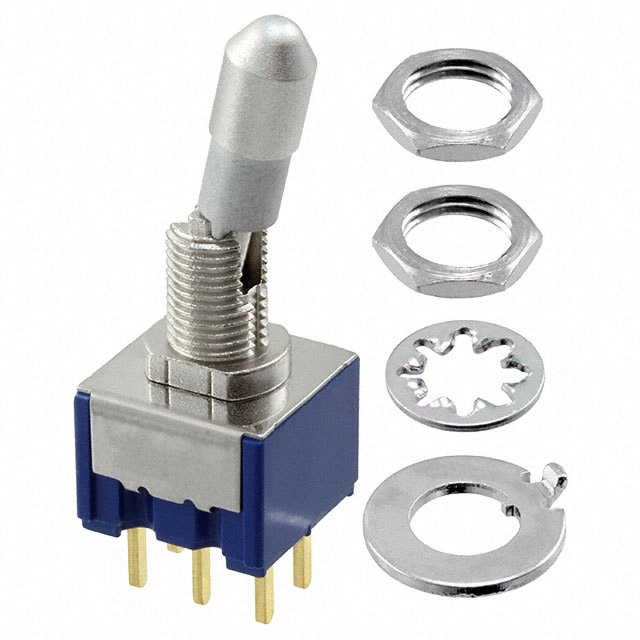

 Nidec Components Corporation | 50000 Cycles | 20 V | Locking Lever | 85 °C | -30 ░C | PC Pin | 1/4-40 | Panel Mount | 6.5 mm | On-On | Sealed - Flux Protection | 16.5 mm | DPDT | 25 mA | Non-Illuminated | |
 Nidec Components Corporation | 50000 Cycles | 30 V | Locking Lever | 85 °C | -20 ░C | PC Pin | 1/4-40 | Panel Mount | 6.5 mm | On-On | Sealed - Flux Protection | 16.5 mm | DPDT | 4 A 6 A | Non-Illuminated | 125 V |
