B72214R Series

Catalog

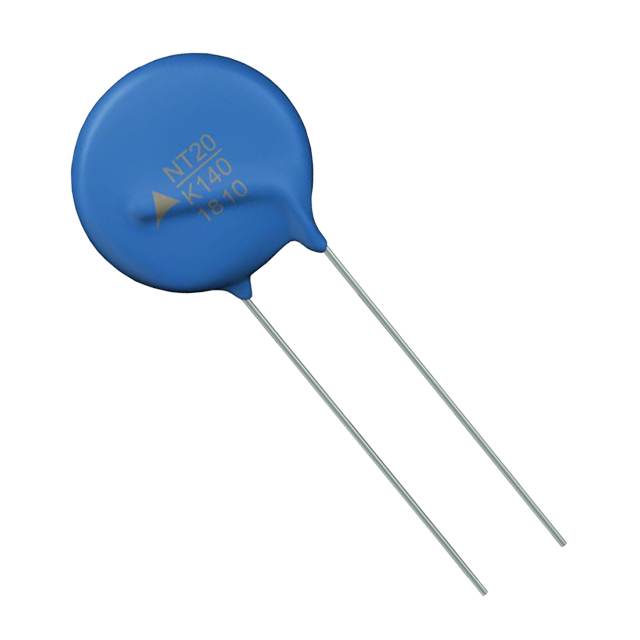

VARISTOR 470V 6KA DISC 17MM

Part	Energy	Maximum AC Volts [Max]	Varistor Voltage (Min) [Min]	Varistor Voltage (Typ)	Number of Circuits	Mounting Type	Current - Surge	Package / Case	Varistor Voltage (Max) [Max]	Capacitance @ Frequency	Maximum DC Volts [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Max)
EPCOS - TDK Electronics B72214R2301K101	125 J	300 V	423 V	470 V	1	Through Hole	6000 A	Disc 17mm	517 V	1 kHz 400 pF	385 V	Thermally Protected	85 C	-40 ¯C
EPCOS - TDK Electronics B72214R2151K101	60 J	150 V	216 V	240 V	1	Through Hole	6000 A	Disc 17mm	264 V	1 kHz 750 pF	200 V	Thermally Protected	85 C	-40 ¯C
EPCOS - TDK Electronics B72214R2321K101		320 V	459 V	510 V	1	Through Hole	6000 A	Disc 17mm	561 V	1 kHz 370 pF	420 V	Thermally Protected	85 C	-40 ¯C
EPCOS - TDK Electronics B72214R2271K101	110 J	275 V	387 V	430 V	1	Through Hole	6000 A	Disc 17mm		1 kHz 440 pF	350 V	Thermally Protected	85 C	-40 ¯C	473 V
