H9004 Series
Manufacturer: Harwin Inc.
Beta
⌘K

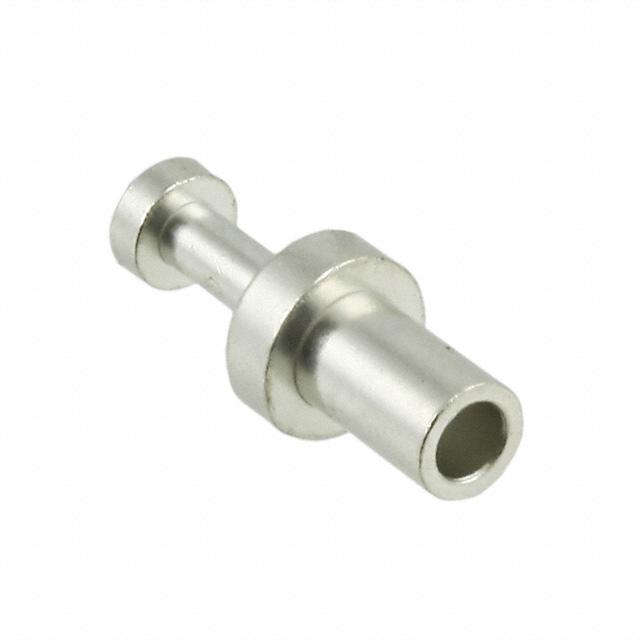

TERMINAL, TURRET SOLDER, 2.09MM, 7.14MM ROHS COMPLIANT: YES
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Board Thickness | Board Thickness | Terminal Type | Length - Overall [x] | Length - Overall [x] | Insulation | Number of Turrets | Staking Side ID | Staking Side ID | Length - Above Board [x] | Length - Above Board [x] | Mounting Type | Length - Below Flange [Max] [x] | Length - Below Flange [Min] [x] | Length - Below Flange [Max] [x] | Length - Below Flange [Min] [x] | Contact Material | Contact Finish | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 0.125 in | 3.18 mm | 1.98 mm | 0.078 in | 0.063 in | 1.6 mm | Single End | 7.14 mm | 0.281 in | Non-Insulated | Single | 0.055 in | 1.4 mm | 0.192 in | 4.88 mm | Through Hole | 2.46 mm | 0.092 " | 0.097 " | 2.34 mm | Brass Alloy | Tin | 2.01 mm | 0.079 in | 2.08 mm | 0.082 in | Swage |
