CT110 Series

Catalog

XTREMESENSE HIGH LINEARITY, HIGH

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Accuracy	For Measuring	Sensitivity	Mounting Type	Linearity	Number of Channels [custom]	Frequency [Min]	Frequency [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Current - Sensing	Current - Supply (Max) [Max]	Package / Case	Supplier Device Package	Polarization	Response Time	Supplied Contents	Sensing Range [Max]	Sensing Range [Min]	Contents	Interface
Allegro MicroSystems CT110PDV-ID6	5.5 V	2.7 V	Current Ratiometric Voltage	0.5 %	AC DC	200 mV/A	Surface Mount	0.15 %	1	DC	200 kHz	85 °C	-40 C	Magnetoresistive	10 A	2.5 mA	6-TDFN Exposed Pad	6-DFN (3x3)	Bidirectional	20 µs
Allegro MicroSystems CT110RDV-ID6	5.5 V	2.7 V	Current Ratiometric Voltage	0.5 %	AC DC	40 mV/g	Surface Mount	0.15 %	1	DC	200 kHz	85 °C	-40 C	Magnetoresistive	15 A	2.5 mA	6-TDFN Exposed Pad	6-DFN (3x3)	Bidirectional	20 µs

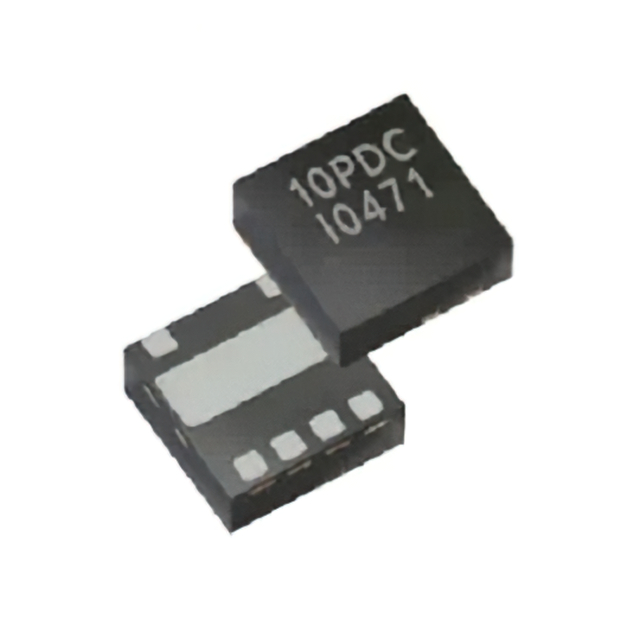

Allegro MicroSystems CT110FDC-ID6	5.5 V	2.7 V	Current Ratiometric Voltage	0.5 %	AC DC	200 mV/A	Surface Mount	0.15 %	1	DC	200 kHz	85 °C	-40 C	Magnetoresistive	5 A	2.5 mA	6-TDFN Exposed Pad	6-DFN (3x3)	Bidirectional	20 µs
Allegro MicroSystems CT110RDC-ID6	5.5 V	2.7 V	Current Ratiometric Voltage	0.5 %	AC DC	80 LSB/°/s	Surface Mount	0.15 %	1	DC	200 kHz	85 °C	-40 C	Magnetoresistive	15 A	2.5 mA	6-TDFN Exposed Pad	6-DFN (3x3)	Bidirectional	20 µs
Allegro MicroSystems CT110FDV-ID6	5.5 V	2.7 V	Current Ratiometric Voltage	0.5 %	AC DC	100 mV/g	Surface Mount	0.15 %	1	DC	200 kHz	85 °C	-40 C	Magnetoresistive	5 A	2.5 mA	6-TDFN Exposed Pad	6-DFN (3x3)	Bidirectional	20 µs
Allegro MicroSystems CT110PDV-HD6	5.5 V	2.7 V	Current Ratiometric Voltage	0.5 %	AC DC	200 mV/A	Surface Mount	0.15 %	1	DC	200 kHz	125 °C	-40 C	Magnetoresistive	10 A	2.5 mA	6-TDFN Exposed Pad	6-DFN (3x3)	Bidirectional	20 µs
Allegro MicroSystems CT110PDC-ID6	5.5 V	2.7 V	Current Ratiometric Voltage	0.5 %	AC DC	200 mV/A	Surface Mount	0.15 %	1	DC	200 kHz	85 °C	-40 C	Magnetoresistive	10 A	2.5 mA	6-TDFN Exposed Pad	6-DFN (3x3)	Bidirectional	20 µs

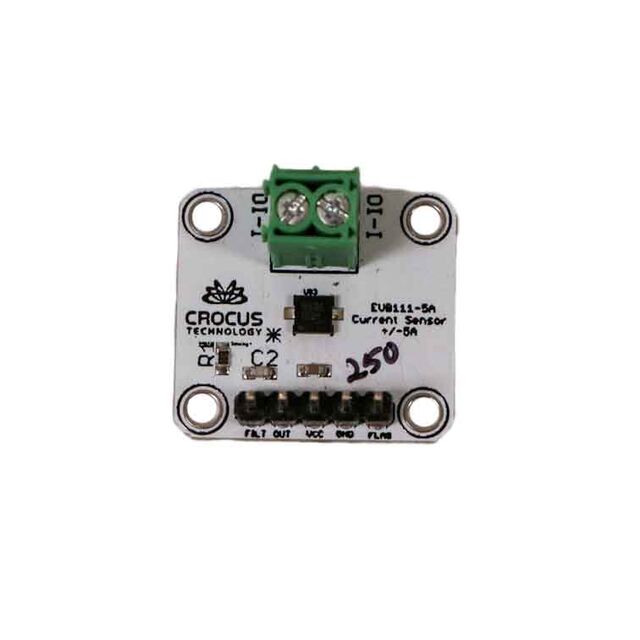

Allegro MicroSystems EVB111-5.0A	5.5 V	2.7 V				412.5 mV/A								Current Sensor							Board(s)	5 A	-5 A	Board(s)	Analog
