WP132 Series

Catalog

LED ORANGE CLEAR T-1 T/H

Part	Voltage - Forward (Vf) (Typ)	Size / Dimension [diameter]	Supplier Device Package	Wavelength - Dominant	Lens Size	Lens Size	Wavelength - Peak	Lens Color	Height (Max) [Max] [z]	Lens Transparency	Current - Test	Mounting Type	Lens Style	Package / Case	Millicandela Rating	Configuration	Viewing Angle	Color

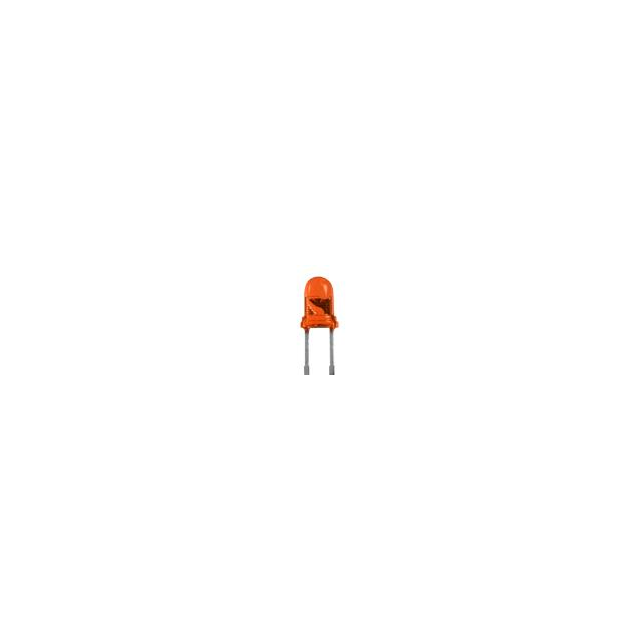

Kingbright WP132XNT	2.05 V	3 mm	T-1	602 nm	3 mm	T-1	607 nm	Orange	5.2 mm	Clear	20 mA	Through Hole	Round with Domed Top	Radial	20 mcd	Standard	50 °

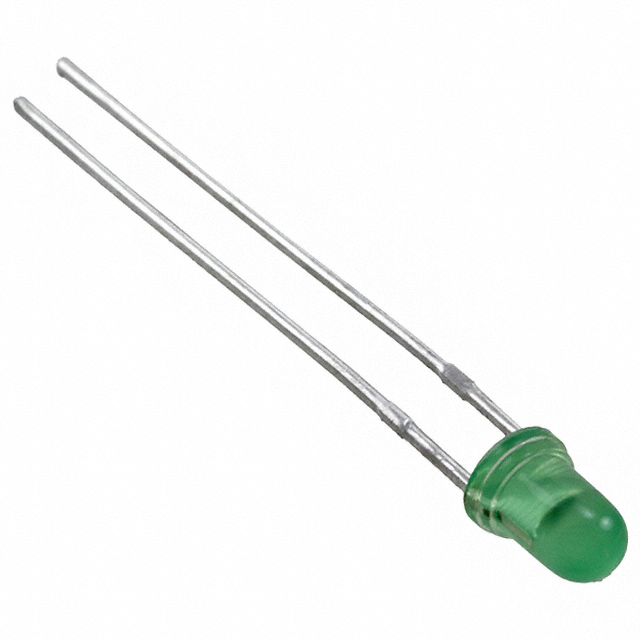

Kingbright WP132XGD	2.2 V	3 mm	T-1	568 nm	3 mm	T-1	565 nm	Green	5.2 mm	Diffused	20 mA	Through Hole	Round with Domed Top	Radial	25 mcd	Standard	60 °	Green

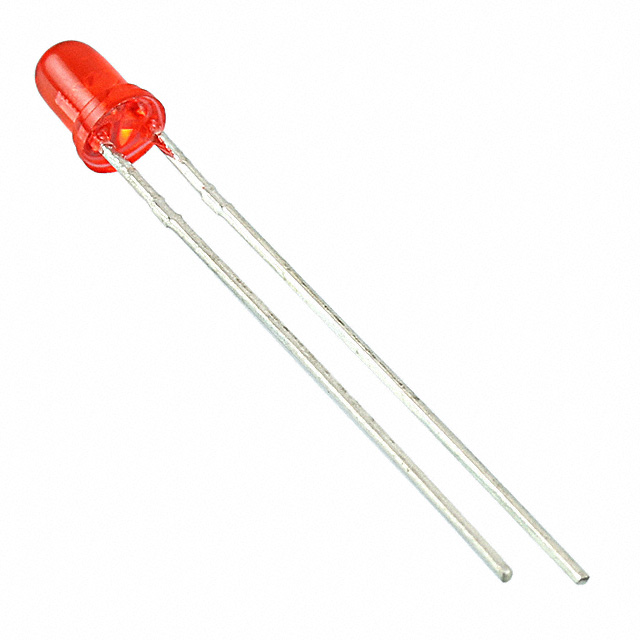

Kingbright WP132XIT	2 V	3 mm	T-1	617 nm	3 mm	T-1	627 nm	Red	5.2 mm	Clear	20 mA	Through Hole	Round with Domed Top	Radial	20 mcd	Standard	50 °	Red
Kingbright WP132XGT	2.2 V	3 mm	T-1	568 nm	3 mm	T-1	565 nm	Green	5.2 mm	Clear	20 mA	Through Hole	Round with Domed Top	Radial	40 mcd	Standard	50 °	Green
Kingbright WP132XNC	2.05 V	3 mm	T-1	602 nm	3 mm	T-1	607 nm	Colorless	5.2 mm	Clear	20 mA	Through Hole	Round with Domed Top	Radial	20 mcd	Standard	50 °
Kingbright WP132XGC	2.2 V	3 mm	T-1	568 nm	3 mm	T-1	565 nm	Colorless	5.2 mm	Clear	20 mA	Through Hole	Round with Domed Top	Radial	40 mcd	Standard	50 °	Green

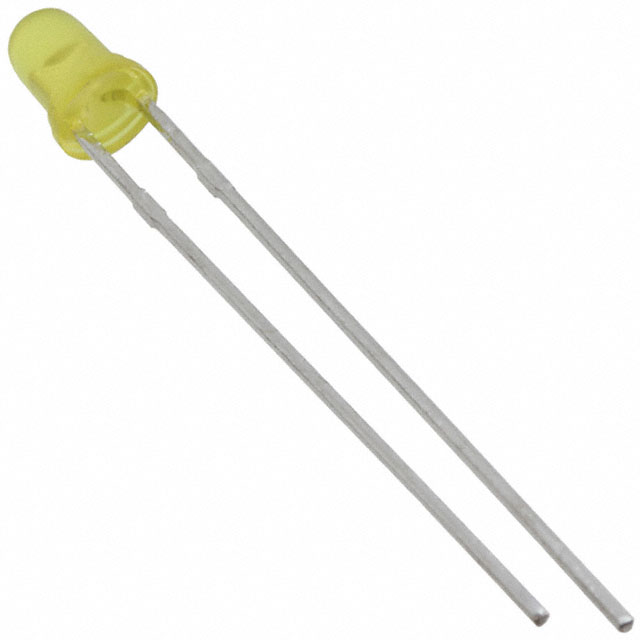

Kingbright WP132XYD	2.1 V	3 mm	T-1	588 nm	3 mm	T-1	590 nm	Yellow	5.2 mm	Diffused	20 mA	Through Hole	Round with Domed Top	Radial	15 mcd	Standard	60 °	Yellow

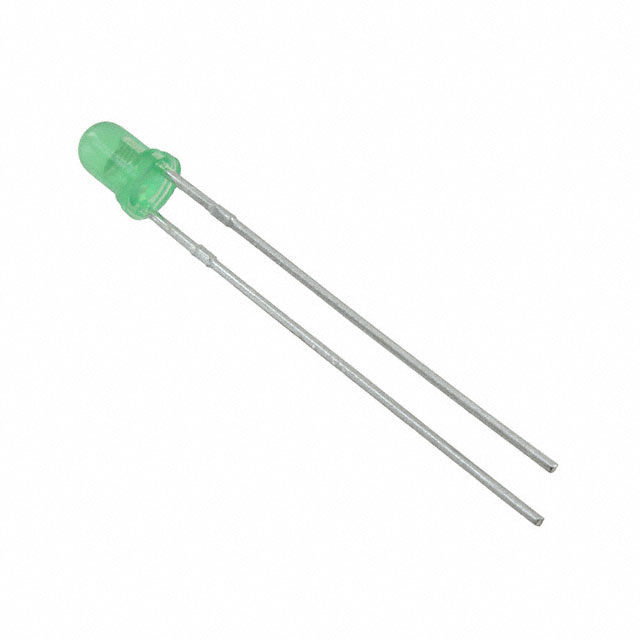

Kingbright WP132XPGD	2.25 V	3 mm	T-1	557 nm	3 mm	T-1	557 nm	Green	5.2 mm	Diffused	20 mA	Through Hole	Round with Domed Top	Radial	10 mcd	Standard	60 °	Green

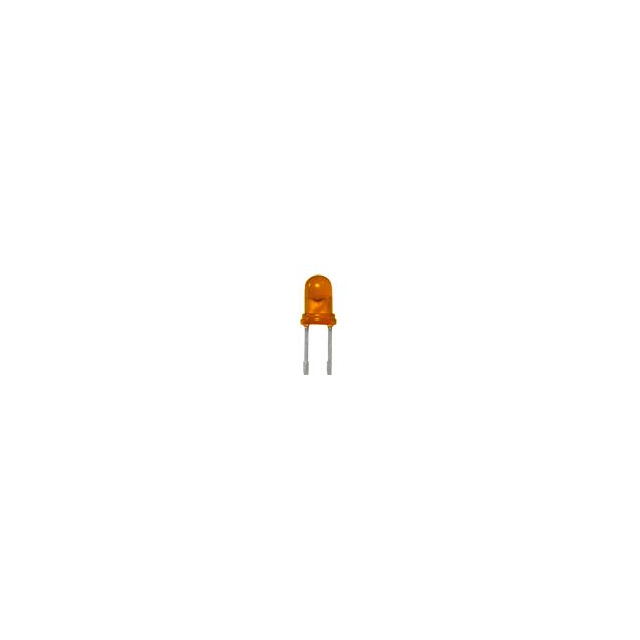

Kingbright WP132XND	2.05 V	3 mm	T-1	602 nm	3 mm	T-1	607 nm	Orange	5.2 mm	Diffused	20 mA	Through Hole	Round with Domed Top	Radial	16 mcd	Standard	60 °

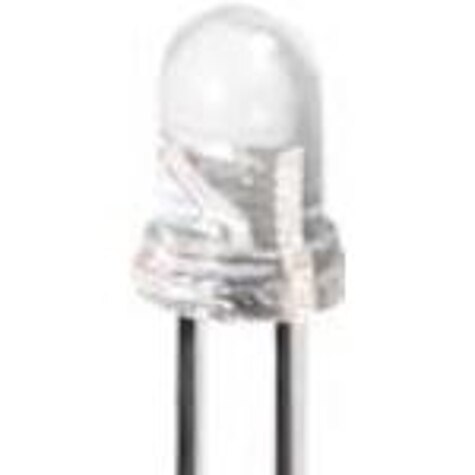

Kingbright WP132XYC	2.1 V	3 mm	T-1	588 nm	3 mm	T-1	590 nm	Colorless	5.2 mm	Clear	20 mA	Through Hole	Round with Domed Top	Radial	20 mcd	Standard	50 °	Yellow
