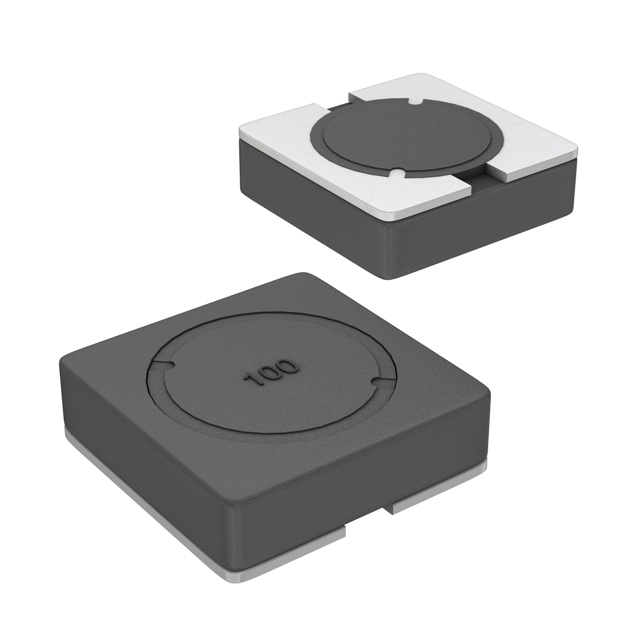

SRR5018 Series

Catalog

IND5.8X5.8X1.8MM,47UH30%0.52A,SHDSMD /TAPE & REEL - 7" REEL

Part	Inductance Frequency - Test	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material - Core	Mounting Type	Q @ Freq	Tolerance	Current Rating (Amps)	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Package / Case	Inductance	Frequency - Self Resonant	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRR5018-470Y	100 kHz	0.6 A	125 °C	-40 C	550 mOhm	0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	Surface Mount	2.52 MHz 8.9	30 %	0.52 A	Shielded	0.079 in	2 mm	Drum Core Wirewound	Nonstandard	47 µH	14 MHz
Bourns Inc. SRR5018-4R1Y	100 kHz	2.1 A	125 °C	-40 C		0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	Surface Mount	7.96 MHz 8	30 %	2 A	Shielded	0.079 in	2 mm	Drum Core Wirewound	Nonstandard	4.1 µH	60 MHz	55 mOhm
Bourns Inc. SRR5018-181Y	100 kHz	320 mA	125 °C	-40 C		0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	Surface Mount	13.6 796 kHz	30 %	0.25 A	Shielded	0.079 in	2 mm	Drum Core Wirewound	Nonstandard	180 µH	10 MHz	2.3 Ohm
Bourns Inc. SRR5018-820Y	100 kHz	450 mA	125 °C	-40 C		0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	Surface Mount	2.52 MHz 9.1	30 %	0.38 A	Shielded	0.079 in	2 mm	Drum Core Wirewound	Nonstandard	82 µH	11 MHz	950 mOhm
Bourns Inc. SRR5018-3R0Y	100 kHz	2.4 A	125 °C	-40 C		0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	Surface Mount		30 %	2.2 A	Shielded	0.079 in	2 mm	Drum Core Wirewound	Nonstandard	3 ÁH	79 MHz	45 mOhm	7.96 MHz	8.3
Bourns Inc. SRR5018-560Y	100 kHz	550 mA	125 °C	-40 C		0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	Surface Mount	2.52 MHz 8.9	30 %	480 mA	Shielded	0.079 in	2 mm	Drum Core Wirewound	Nonstandard	56 µH	13 MHz
Bourns Inc. SRR5018-100Y	100 kHz	1.25 A	125 °C	-40 C	130 mOhm	0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	Surface Mount	2.52 MHz 11	30 %	1.1 A	Shielded	0.079 in	2 mm	Drum Core Wirewound	Nonstandard	10 µH	41 MHz
Bourns Inc. SRR5018-7R5Y	100 kHz		125 °C	-40 C		0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	Surface Mount		30 %	1.35 A	Shielded	0.079 in	2 mm	Drum Core Wirewound	Nonstandard	7.5 µH	42 MHz	90 mOhm	7.96 MHz	7.9
Bourns Inc. SRR5018-220Y	100 kHz	900 mA	125 °C	-40 C		0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	Surface Mount	2.52 MHz 14.7	30 %	800 mA	Shielded	0.079 in	2 mm	Drum Core Wirewound	Nonstandard	22 µH	22 MHz	280 mOhm
Bourns Inc. SRR5018-8R9Y	100 kHz	1.25 A	125 °C	-40 C	116 mOhm	0.228 in	5.8 mm	0.228 in	5.8 mm	Ferrite	Surface Mount		30 %	1.25 A	Shielded	0.079 in	2 mm	Drum Core Wirewound	Nonstandard	8.9 µH	40 MHz		7.96 MHz	7.3
