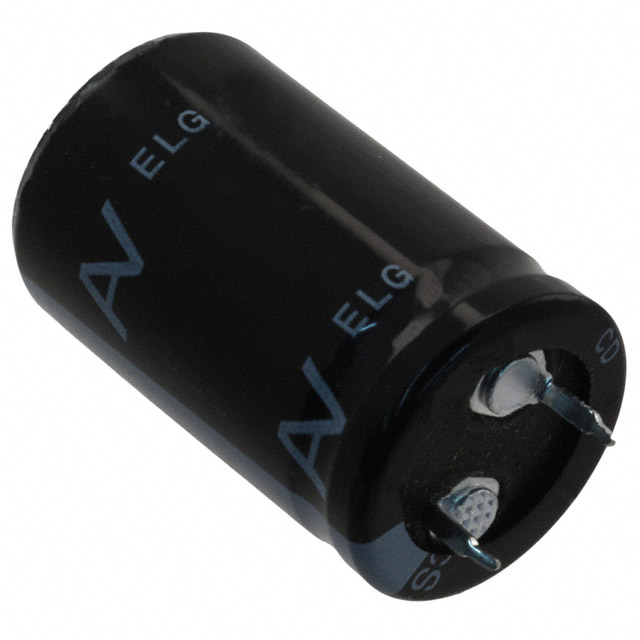

ELG107M Series
Manufacturer: KEMET
Beta
⌘K
CAP ALUM 100UF 20% 400V SNAP TH
| Part | Capacitance | Voltage - Rated | Applications | Ripple Current @ High Frequency | ESR (Equivalent Series Resistance) | Mounting Type | Package / Case | Lead Spacing | Lead Spacing | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Polarization | Size / Dimension [diameter] | Size / Dimension [diameter] | Ripple Current @ Low Frequency | Lifetime @ Temp. | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 100 µF | 400 V | General Purpose | 942.5 mA | 582 mOhm | Through Hole | Radial Can - Snap-In | 0.394 in | 10 mm | 20 % | 105 ░C | -25 °C | 37 mm | 1.457 in | Polar | 0.866 " | 22 mm | 650 mA | 2000 Hrs | |
 KEMET | 100 µF | 450 V | General Purpose | 870 mA | 628 mOhm | Through Hole | Radial Can - Snap-In | 0.394 in | 10 mm | 20 % | 105 ░C | -25 °C | 1.26 in | Polar | 0.984 " | 25 mm | 600 mA | 2000 Hrs | 32 mm |
