Q5-2X-3/8 Series

Manufacturer: Qualtek

Catalog

HEATSHRINK 3/8"-6" BLACK 1=16PC

Part	Shelf Life	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Length	Material	Features	Shrink Temperature	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Type	Length [x]	Length [x]
Qualtek Q5-2X-3/8-01-QB6IN-16	60 Months	-45 °C	125 °C	152.4 mm	0.5 '	6 "	Polyolefin (PO)	Adhesive Lined Self Extinguishing	100 °C	1	2	0.76 mm	0.03 in	0.187 in	4.75 mm	40 °C	14 °F	-50 °F	40 °C	0.375 in	9.53 mm	Black	Tubing Flexible

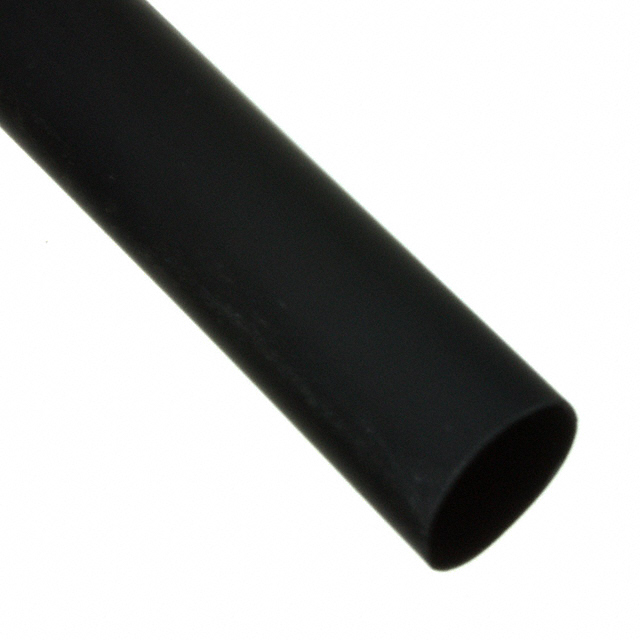

Qualtek Q5-2X-3/8-01-QB48IN-25	60 Months	-45 °C	125 °C				Polyolefin (PO)	Adhesive Lined Self Extinguishing	100 °C	1	2	0.76 mm	0.03 in	0.187 in	4.75 mm	40 °C	14 °F	-50 °F	40 °C	0.375 in	9.53 mm	Black	Tubing Flexible	4 ft	1.22 m

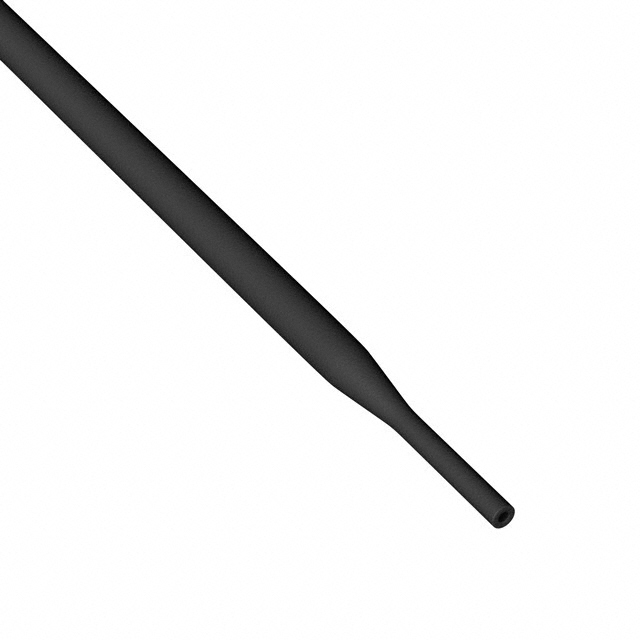

Qualtek Q5-2X-3/8-01-SS50M	60 Months	-45 °C	125 °C	50 m	164 ft		Polyolefin (PO)	Adhesive Lined Self Extinguishing	100 °C	1	2	0.76 mm	0.03 in	0.187 in	4.75 mm	40 °C	14 °F	-50 °F	40 °C	0.375 in	9.53 mm	Black	Tubing Flexible
