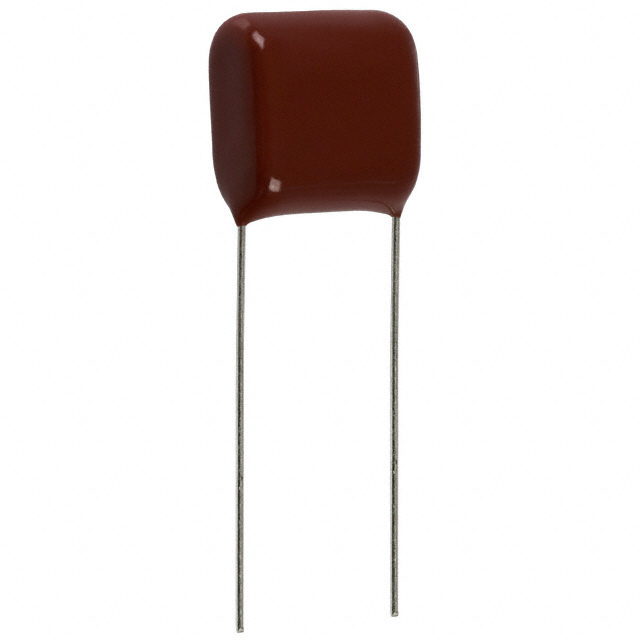

ECQ-E2155 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 1.5UF 5% 250VDC RADIAL

Part	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Package / Case	Lead Spacing	Lead Spacing	Applications	Voltage Rating - DC	Capacitance	Tolerance	Lead Spacing	Size / Dimension [y]	Height - Seated (Max) [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-E2155RJB	PC Pins	0.815 in	20.7 mm	-40 C	105 ░C	Polyester Metallized	0.339 "	8.6 mm	0.602 "	15.3 mm	Through Hole	Radial	0.492 in	12.5 mm	General Purpose	250 V	1500 nF	5 %
Panasonic Electronic Components ECQ-E2155JBB	PC Pins	0.815 in	20.7 mm	-40 C	105 ░C	Polyester Metallized	0.339 "	8.6 mm	0.602 "	15.3 mm	Through Hole	Radial	5 mm		General Purpose	250 V	1500 nF	5 %	0.197 "
Panasonic Electronic Components ECQ-E2155KF	PC Pins	0.701 in		-40 C	105 ░C	Polyester Metallized	0.354 in		0.728 in	18.5 mm	Through Hole	Radial	15 mm		General Purpose	250 V	1500 nF	10 %	0.591 in	9 mm	17.8 mm
Panasonic Electronic Components ECQ-E2155JFW	PC Pins			-40 C	105 ░C	Polyester Metallized	0.354 in		0.728 in	18.5 mm	Through Hole	Radial	10 mm		General Purpose	250 V	1500 nF	5 %	0.394 in	9 mm		21.8 mm	0.858 "
Panasonic Electronic Components ECQ-E2155JF	PC Pins	0.701 in		-40 C	105 ░C	Polyester Metallized	0.354 in		0.728 in	18.5 mm	Through Hole	Radial	15 mm		General Purpose	250 V	1500 nF	5 %	0.591 in	9 mm	17.8 mm
Panasonic Electronic Components ECQ-E2155KB3	PC Pins	0.815 in	20.7 mm	-40 C	105 ░C	Polyester Metallized	0.339 "	8.6 mm	0.602 "	15.3 mm	Through Hole	Radial	5 mm		General Purpose	250 V	1500 nF	10 %	0.197 "
Panasonic Electronic Components ECQ-E2155JFB	PC Pins			-40 C	105 ░C	Polyester Metallized	0.354 in		0.728 in	18.5 mm	Through Hole	Radial	10 mm		General Purpose	250 V	1500 nF	5 %	0.394 in	9 mm		21.8 mm	0.858 "
Panasonic Electronic Components ECQ-E2155RKF	PC Pins			-40 C	105 ░C	Polyester Metallized	0.354 in		0.728 in	18.5 mm	Through Hole	Radial	15 mm		General Purpose	250 V	1500 nF	10 %	0.591 in	9 mm		21.8 mm	0.858 "
Panasonic Electronic Components ECQ-E2155JB3	PC Pins	0.815 in	20.7 mm	-40 C	105 ░C	Polyester Metallized	0.339 "	8.6 mm	0.602 "	15.3 mm	Through Hole	Radial	5 mm		General Purpose	250 V	1500 nF	5 %	0.197 "
Panasonic Electronic Components ECQ-E2155KBB	PC Pins	0.815 in	20.7 mm	-40 C	105 ░C	Polyester Metallized	0.339 "	8.6 mm	0.602 "	15.3 mm	Through Hole	Radial	5 mm		General Purpose	250 V	1500 nF	10 %	0.197 "
