796643 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK HDR 18POS VERT 5MM

Part	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Contact Material	Insulation Height	Insulation Height	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Type	Header Orientation	Contact Mating Finish	Voltage - UL	Mounting Type	Termination Style	Color	Number of Levels	Pitch	Pitch	Positions Per Level	Positions Per Level [custom]
TE Connectivity AMP Connectors 1-796643-8	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	18	-40 C	110 °C	Header Male Pins Shrouded (4 Side)	Vertical	Tin	300 V	Through Hole	Solder	Black	1	0.197 in	5 mm	18
TE Connectivity AMP Connectors 2-796643-4	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	24	-40 C	110 °C	Header Male Pins Shrouded (4 Side)	Vertical	Tin	300 V	Through Hole	Solder	Black	1	0.197 in	5 mm		24

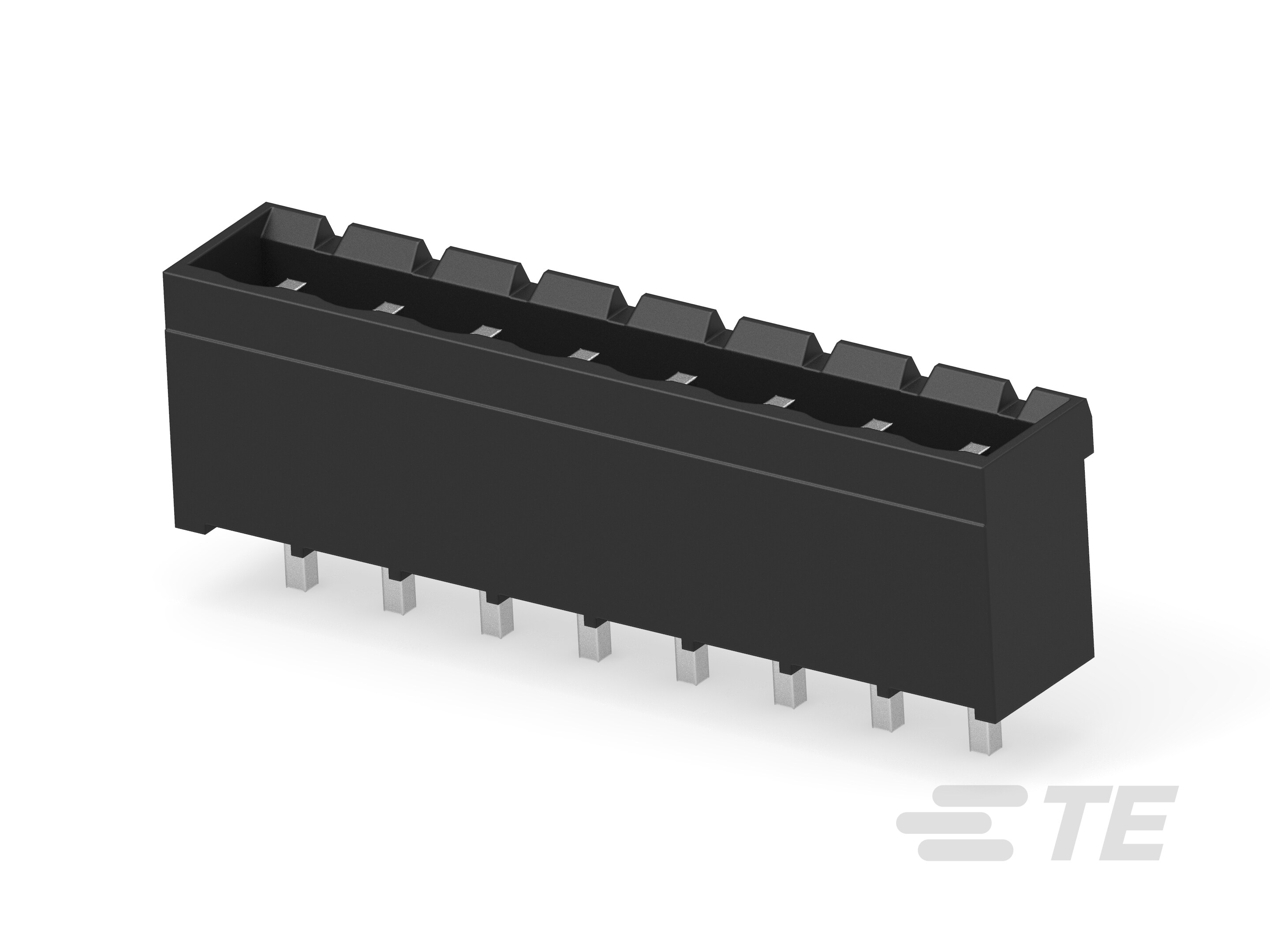

TE Connectivity AMP Connectors 796643-8	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	8	-40 C	110 °C	Header Male Pins Shrouded (4 Side)	Vertical	Tin	300 V	Through Hole	Solder	Black	1	0.197 in	5 mm	8
TE Connectivity AMP Connectors 796643-7	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	7	-40 C	110 °C	Header Male Pins Shrouded (4 Side)	Vertical	Tin	300 V	Through Hole	Solder	Black	1	0.197 in	5 mm		7
TE Connectivity AMP Connectors 1-796643-1	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	11	-40 C	110 °C	Header Male Pins Shrouded (4 Side)	Vertical	Tin	300 V	Through Hole	Solder	Black	1	0.197 in	5 mm	11
TE Connectivity AMP Connectors 1-796643-6	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	16	-40 C	110 °C	Header Male Pins Shrouded (4 Side)	Vertical	Tin	300 V	Through Hole	Solder	Black	1	0.197 in	5 mm	16
TE Connectivity AMP Connectors 1-796643-3	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	13	-40 C	110 °C	Header Male Pins Shrouded (4 Side)	Vertical	Tin	300 V	Through Hole	Solder	Black	1	0.197 in	5 mm	13
TE Connectivity AMP Connectors 1-796643-5	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	15	-40 C	110 °C	Header Male Pins Shrouded (4 Side)	Vertical	Tin	300 V	Through Hole	Solder	Black	1	0.197 in	5 mm	15
TE Connectivity AMP Connectors 1-796643-9	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	19	-40 C	110 °C	Header Male Pins Shrouded (4 Side)	Vertical	Tin	300 V	Through Hole	Solder	Black	1	0.197 in	5 mm	19
TE Connectivity AMP Connectors 796643-2	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	2	-40 C	110 °C	Header Male Pins Shrouded (4 Side)	Vertical	Tin	300 V	Through Hole	Solder	Black	1	0.197 in	5 mm	2
