97R10 Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mechanical Life	Contact Finish	Body Material	Pitch [x]	Pitch [x]	Number of Positions	Circuit	Termination Style	Height Above Board [z]	Height Above Board [z]	Actuator Level	Actuator Type	Length [x]	Length [x]	Mounting Type	Contact Material	Features
Grayhill Inc. 97R10T	24 VDC	85 °C	-40 °C	25 mA	1000 Cycles	Gold	Nylon Polyamide (PA)	0.05 in	1.27 mm	10	SPST	Gull Wing	0.061 "	1.55 mm	Flush Recessed	Slide (Standard)	13.93 mm	0.548 in	Surface Mount	Copper Alloy

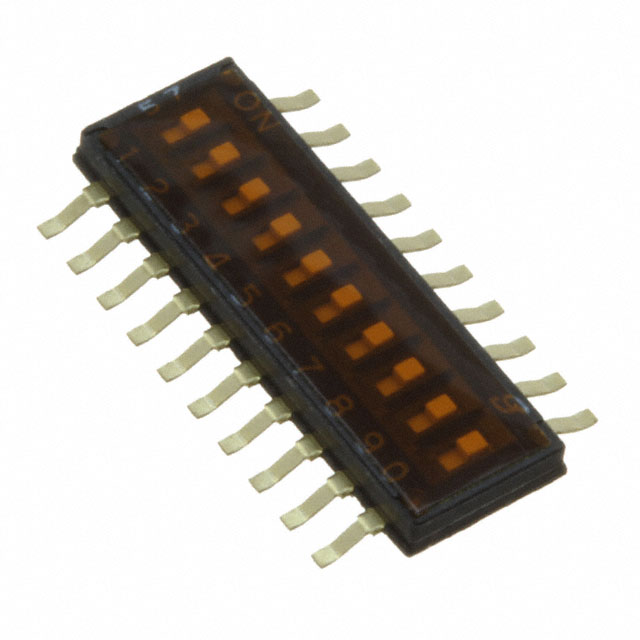

Grayhill Inc. 97R10ST	24 VDC	85 °C	-40 °C	25 mA	1000 Cycles	Gold	Nylon Polyamide (PA)	0.05 in	1.27 mm	10	SPST	Gull Wing	0.061 "	1.55 mm	Flush Recessed	Slide (Standard)	13.93 mm	0.548 in	Surface Mount	Copper Alloy	Tape Seal
Grayhill Inc. 97R10SRT	24 VDC	85 °C	-40 °C	25 mA	1000 Cycles	Gold	Nylon Polyamide (PA)	0.05 in	1.27 mm	10	SPST	Gull Wing	0.061 "	1.55 mm	Flush Recessed	Slide (Standard)	13.93 mm	0.548 in	Surface Mount	Copper Alloy	Tape Seal
