ZGL41 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

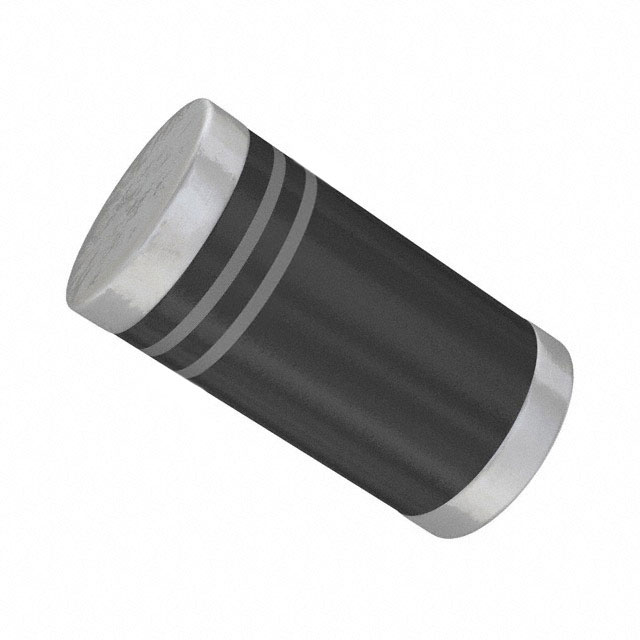

DIODE ZENER 200V 1W GL41

Part	Tolerance	Supplier Device Package	Impedance (Max) (Zzt) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Power - Max [Max]	Voltage - Zener (Nom) (Vz)	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Mounting Type
Vishay General Semiconductor - Diodes Division ZGL41-200A-E3/96	5 %	DO-213AB (GL41)	1200 Ohms	-55 °C	150 °C	DO-213AB MELF	1 W	200 V	1 µA	1.5 V	Surface Mount
Vishay General Semiconductor - Diodes Division ZGL41-190A-E3/97	5 %	DO-213AB (GL41)	1050 Ohms	-55 °C	150 °C	DO-213AB MELF	1 W	190 V	1 µA	1.5 V	Surface Mount
Vishay General Semiconductor - Diodes Division ZGL41-150A-E3/97	5 %	DO-213AB (GL41)	600 Ohms	-55 °C	150 °C	DO-213AB MELF	1 W	150 V	1 µA	1.5 V	Surface Mount
Vishay General Semiconductor - Diodes Division ZGL41-110-E3/97	10 %	DO-213AB (GL41)	300 Ohms	-55 °C	150 °C	DO-213AB MELF	1 W	110 V		1.5 V	Surface Mount
Vishay General Semiconductor - Diodes Division ZGL41-200-E3/97	10 %	DO-213AB (GL41)	1200 Ohms	-55 °C	150 °C	DO-213AB MELF	1 W	200 V	1 µA	1.5 V	Surface Mount
Vishay General Semiconductor - Diodes Division ZGL41-100A-E3/96	5 %	DO-213AB (GL41)	250 Ohms	-55 °C	150 °C	DO-213AB MELF	1 W	100 V	1 µA	1.5 V	Surface Mount
Vishay General Semiconductor - Diodes Division ZGL41-170-E3/96	10 %	DO-213AB (GL41)	800 Ohms	-55 °C	150 °C	DO-213AB MELF	1 W	170 V	1 µA	1.5 V	Surface Mount
Vishay General Semiconductor - Diodes Division ZGL41-200A-E3/97	5 %	DO-213AB (GL41)	1200 Ohms	-55 °C	150 °C	DO-213AB MELF	1 W	200 V	1 µA	1.5 V	Surface Mount
Vishay General Semiconductor - Diodes Division ZGL41-180A-E3/96	5 %	DO-213AB (GL41)	900 Ohms	-55 °C	150 °C	DO-213AB MELF	1 W	180 V	1 µA	1.5 V	Surface Mount
Vishay General Semiconductor - Diodes Division ZGL41-150A-E3/96	5 %	DO-213AB (GL41)	600 Ohms	-55 °C	150 °C	DO-213AB MELF	1 W	150 V	1 µA	1.5 V	Surface Mount
