09628240 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, W/ FRAME, BASE, BULKHEAD MOUNT, ALUMINUM DIE-CAST, 2 LEVER, 24B

Part	Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Connector Type	Lock Location	Style

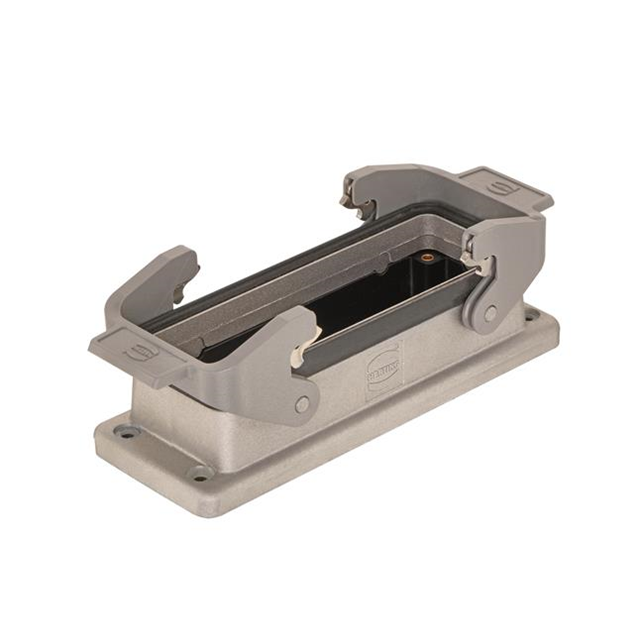

HARTING 09628240315	24 B	IP66 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	1.406 in	35.7 mm	5.709 "	2.126 in	54 mm	145 mm	Base - Panel Mount	Locking Clip (2) on Base Bottom	Bottom Entry
HARTING 09628240270
HARTING 09628240391	24 B	IP65 - Dust Tight Water Resistant	200 °C	-40 C	Aluminum Die Cast	1.197 in	30.4 mm	5.709 "	1.906 "	48.4 mm	145 mm	Base - Panel Mount	Locking Clip (2) on Base Bottom	Bottom Entry

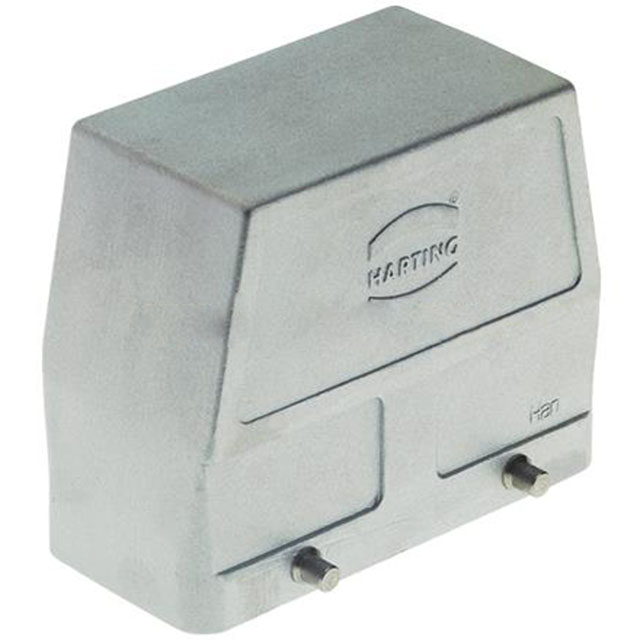

HARTING 09628240801	24 B	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	2.992 in	76 mm	4.724 in	1.693 "	43 mm	120 mm	Hood	Locking Clip (2) on Base Bottom	Bottom Entry

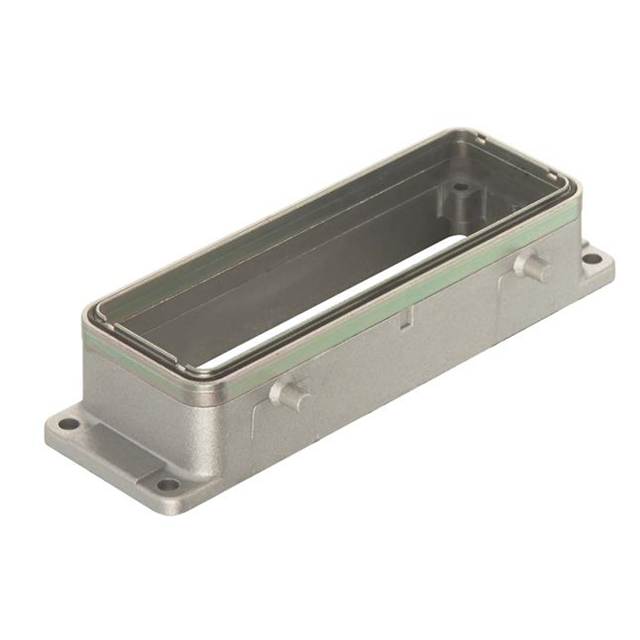

HARTING 09628240306	24 B	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast							Base - Panel Mount	Locking Clip (2) on Base Bottom	Bottom Entry
HARTING 09628240312
HARTING 09628240392	24 B	IP66 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	1.406 in	35.7 mm	5.709 "	2.126 in	54 mm	145 mm	Base - Panel Mount	Locking Clip (2) on Base Bottom	Bottom Entry

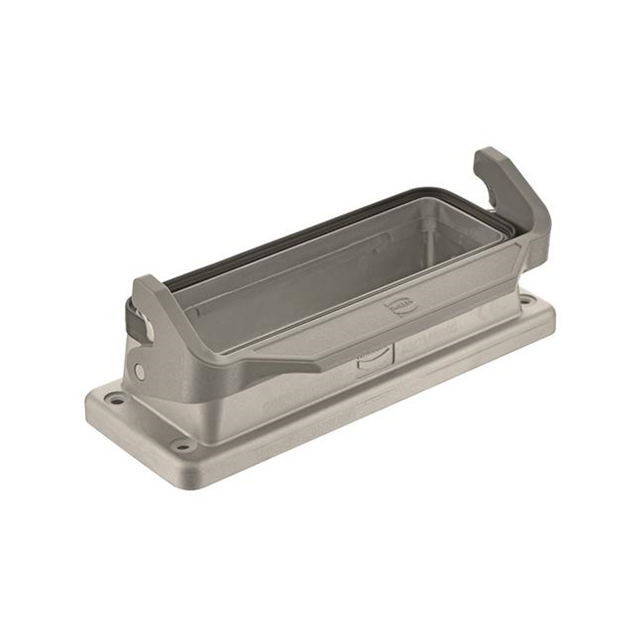

HARTING 09628240398	24 B	IP66 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	1.406 in	35.7 mm	5.709 "	2.126 in	54 mm	145 mm	Base - Panel Mount	Locking Clip (1) on Base Bottom	Bottom Entry
HARTING 09628240397	24 B	IP66 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	1.406 in	35.7 mm	5.709 "	2.126 in	54 mm	145 mm	Base - Panel Mount	Locking Clip (1) on Base Bottom	Bottom Entry
