RFTNC Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

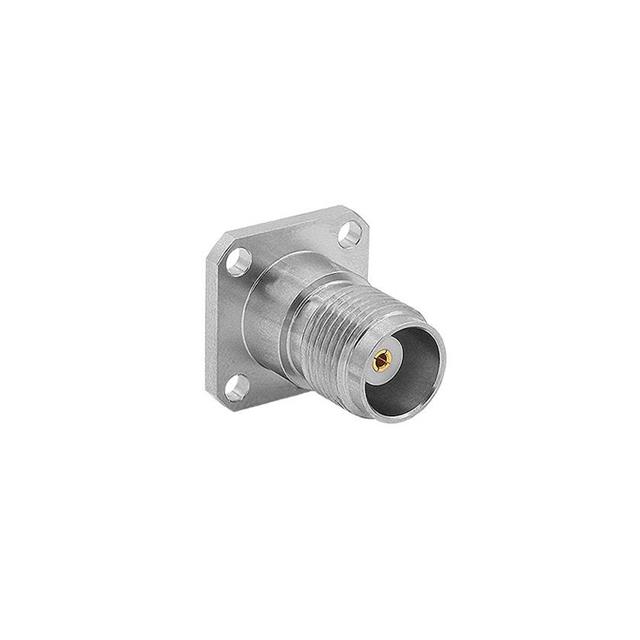

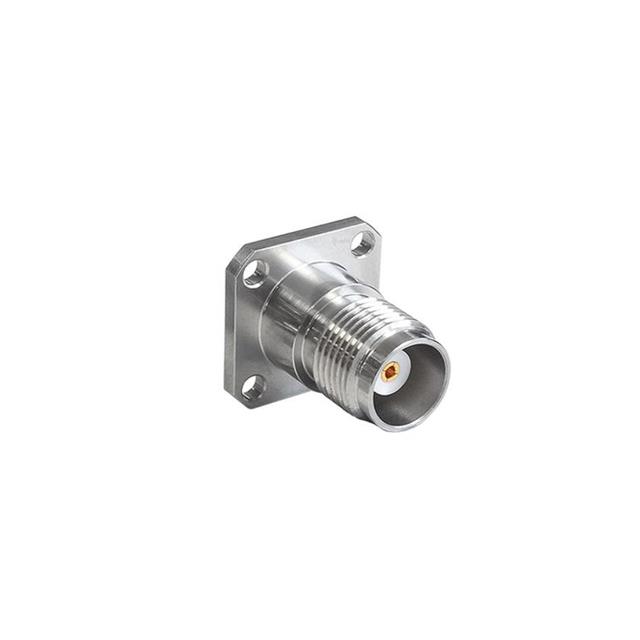

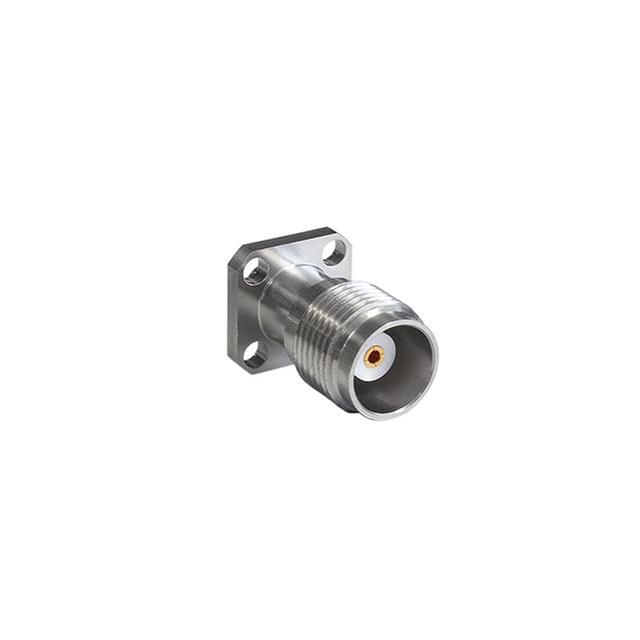

RF / COAXIAL CONNECTOR, TNCA COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Dielectric Material | Mounting Type | Connector Type | Center Contact Material | Number of Ports | Fastening Type | Shield Termination | Frequency - Max [Max] | Impedance | Connector Style | Contact Termination | Mounting Feature | Housing Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Stainless Steel | 500 V | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Panel Mount Through Hole | Female Socket Jack | Beryllium Copper | 1 | Threaded | Solder | 11 GHz | 50 Ohms | TNCA | Solder | Flange | Silver | |
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Stainless Steel | 500 V | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Panel Mount | Female Socket Jack | Beryllium Copper | 1 | Threaded | Screw | 18 GHz | 50 Ohms | TNCA | Compression | Flange | Silver | |
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Stainless Steel | 500 V | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Panel Mount Through Hole | Female Socket Jack | Beryllium Copper | 1 | Threaded | Solder | 11 GHz | 50 Ohms | TNCA | Solder | Flange | Silver | Extended Insulation |
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Stainless Steel | 500 V | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Panel Mount | Female Socket Jack | Beryllium Copper | 1 | Threaded | Screw | 18 GHz | 50 Ohms | TNCA | Compression | Flange | Silver | |
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Stainless Steel | 500 V | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Panel Mount | Plug Male Pin | Beryllium Copper | 1 | Threaded | Screw | 18 GHz | 50 Ohms | TNCA | Compression | Flange | Silver | |
BULGIN LIMITED | 500 | -65 ░C | 165 °C | Stainless Steel | 500 V | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Panel Mount | Female Socket Jack | Beryllium Copper | 1 | Threaded | Screw | 18 GHz | 50 Ohms | TNCA | Compression | Flange | Silver | |
BULGIN LIMITED | 500 | -65 ░C | 165 °C | Stainless Steel | 500 V | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Panel Mount | Female Socket Jack | Beryllium Copper | 1 | Threaded | Screw | 18 GHz | 50 Ohms | TNCA | Compression | Flange | Silver | |
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Stainless Steel | 500 V | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Panel Mount | Plug Male Pin | Beryllium Copper | 1 | Threaded | Screw | 18 GHz | 50 Ohms | TNCA | Compression | Flange | Silver | |
BULGIN LIMITED | 500 | -65 ░C | 165 °C | Stainless Steel | 500 V | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Panel Mount | Plug Male Pin | Beryllium Copper | 1 | Threaded | Screw | 18 GHz | 50 Ohms | TNCA | Compression | Flange | Silver | |
BULGIN LIMITED | 500 | -65 ░C | 165 °C | Stainless Steel | 500 V | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Panel Mount | Female Socket Jack | Beryllium Copper | 1 | Threaded | Screw | 18 GHz | 50 Ohms | TNCA | Compression | Flange | Silver |
