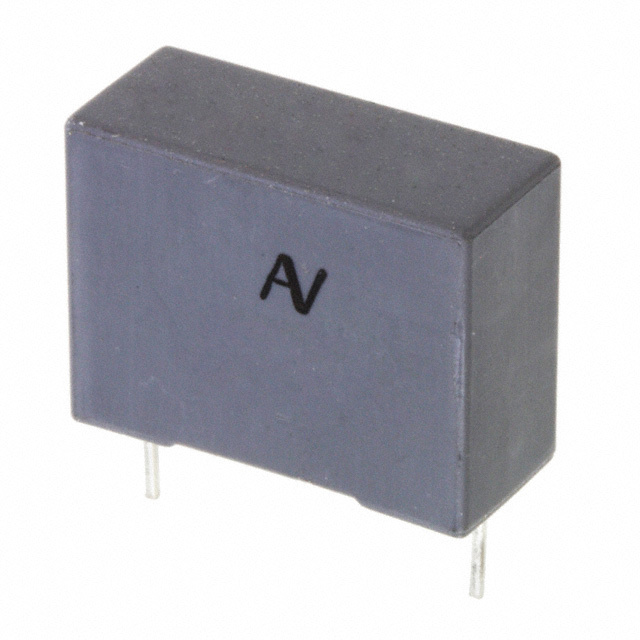

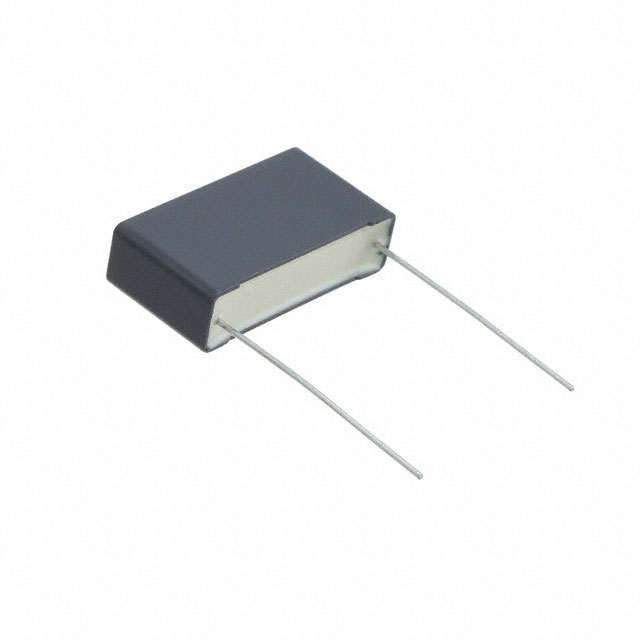

R71QR Series

Manufacturer: KEMET

Catalog

CAPACITOR, FILM, PP, 0.47UF, 1KV, RADIAL

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Applications	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Tolerance	Voltage Rating - DC	Voltage Rating - DC	Voltage Rating - AC	Capacitance	Height - Seated (Max) [Max]
KEMET R71QR34704010K	0.354 in	32 mm	1.26 in	9 mm	Through Hole	Radial	0.673 in	17.1 mm	Polypropylene (PP) Metallized	DV/DT High Frequency High Pulse Power Factor Correction (PFC) Switching	PC Pins	-40 C	110 °C	27.5 mm	1.083 in	10 %	1 kV	1 kVDC	275 V	0.47 µF

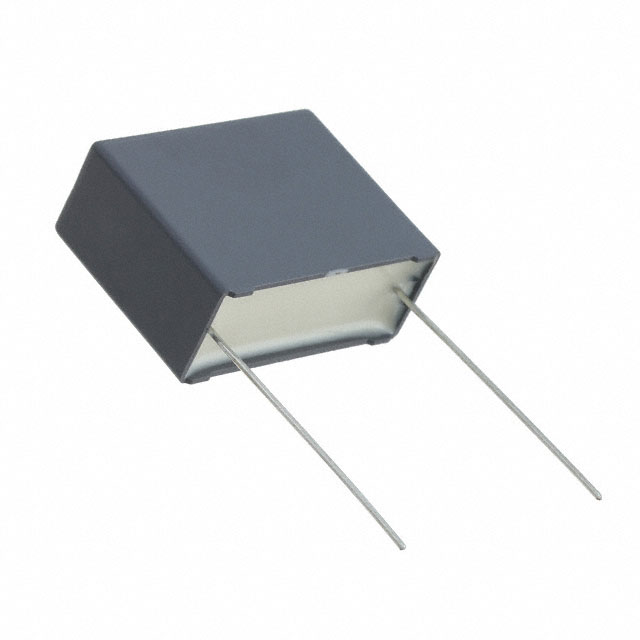

KEMET R71QR41004010K	0.512 "	32 mm	1.26 in	13 mm	Through Hole	Radial	22.1 mm		Polypropylene (PP) Metallized	DV/DT High Frequency High Pulse Power Factor Correction (PFC) Switching	PC Pins	-40 C	110 °C	27.5 mm	1.083 in	10 %	1 kV	1 kVDC	275 V	1 µF	0.87 in
KEMET R71QR32204000K	0.354 in	32 mm	1.26 in	9 mm	Through Hole	Radial	0.673 in	17.1 mm	Polypropylene (PP) Metallized	DV/DT High Frequency High Pulse Power Factor Correction (PFC) Switching	PC Pins	-40 C	110 °C	27.5 mm	1.083 in	10 %	1 kV	1 kVDC	275 V	0.22 µF
KEMET R71QR4180AA10K	0.551 in	32 mm	1.26 in	14 mm	Through Hole	Radial	28.1 mm		Polypropylene (PP) Metallized	DV/DT High Frequency High Pulse Power Factor Correction (PFC) Switching	PC Pins	-40 C	110 °C	27.5 mm	1.083 in	10 %	1 kV	1 kVDC	275 V	1.8 µF	1.106 in
