PX0727 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

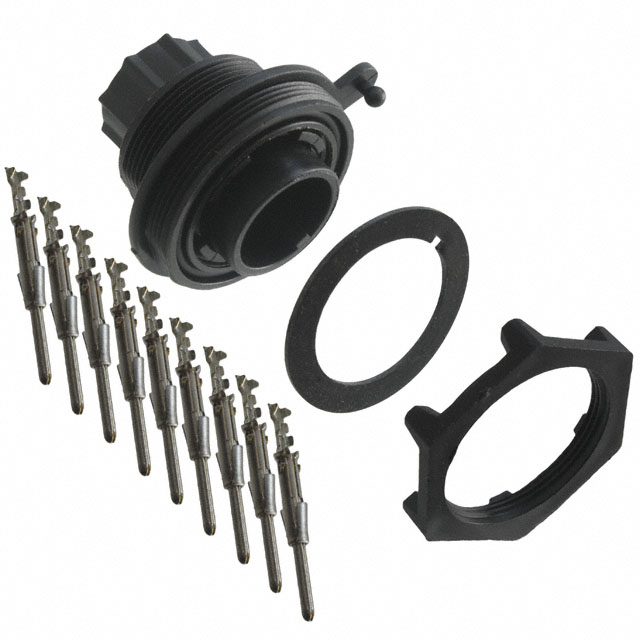

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT PLUG, 9 CONTACTS, CRIMP PIN, THREADED
| Part | Primary Material | Shell Material | Current Rating (Amps) | Number of Positions | Material Flammability Rating | Connector Type | Insert Material [custom] | Insert Material [custom] | Mounting Feature | Mounting Type | Orientation | Color | Voltage Rating | Ingress Protection | Fastening Type | Termination | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Plastic | Glass Filled Nylon Polyamide (PA) | 5 A | 9 | UL94 HB | Receptacle Male Pins | Nylon | Polyamide (PA) | Bulkhead - Rear Side Nut Flange | Panel Mount | Keyed | Black | 150 VAC | IP68 IP69K | Threaded | Crimp | Unshielded | -20 ░C | 70 °C | Copper Alloy |
 BULGIN LIMITED | Plastic | Glass Filled Nylon Polyamide (PA) | 5 A | 9 | UL94 HB | Receptacle Female Sockets | Nylon | Polyamide (PA) | Bulkhead - Rear Side Nut Flange | Panel Mount | Keyed | Black | 150 VAC | IP68 IP69K | Threaded | Crimp | Unshielded | -20 ░C | 70 °C | Copper Alloy |
