222EJ1 Series
Manufacturer: CTS Electrocomponents
Beta
⌘K

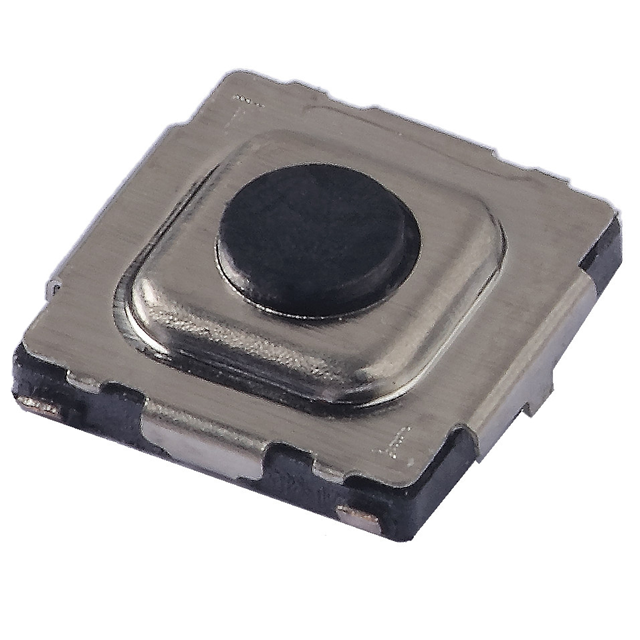

SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Switch Travel | Actuator Orientation | Actuator Height off PCB, Vertical [z] | Illumination | Termination Style | Operating Force | Features | Contact Rating @ Voltage | Mounting Type | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Outline [y] | Outline [x] | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Electrocomponents | 1000000 Cycles | 0.25 mm | Top Actuated | 1.5 mm | Non-Illuminated | J Lead | 160 gf | Tactile Feedback | 0.05 A 12 VDC | Surface Mount | Standard | 85 °C | -40 C | Off-Mom | 5 mm | 5 mm | SPST-NO |
