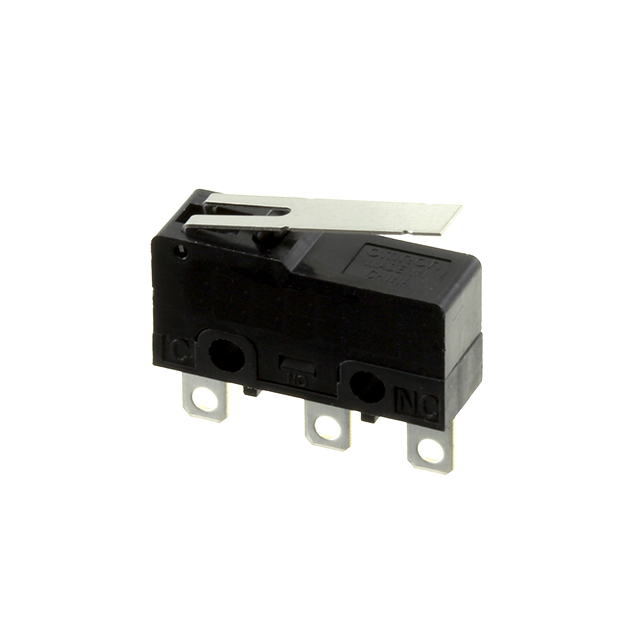

D2S Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

Catalog

SWITCH SNAP ACTION SPDT 10A 250V

...

Part	Mounting Type	Operating Position	Operating Position	Electrical Life	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Differential Travel	Differential Travel	Voltage Rating - AC	Termination Style	Mechanical Life	Features	Release Force	Actuator Type	Current Rating (Amps)	Overtravel	Overtravel	Circuit	Switch Function	Voltage Rating - DC	Pretravel	Pretravel	Operating Position [custom]	Operating Position [custom]
Omron Electronics Inc-EMC Div D2S-10LD	Through Hole	9.4 mm	0.37 in	50000 Cycles	IP40	-25 °C	85 °C	50 gf	0.8 mm	0.031 "	250 V	PC Pin	10000000 Cycles	Sealed - Flux Protection	6.118 gf	Lever Straight	10 A	0.04 in	1 mm	SPDT	On-Mom

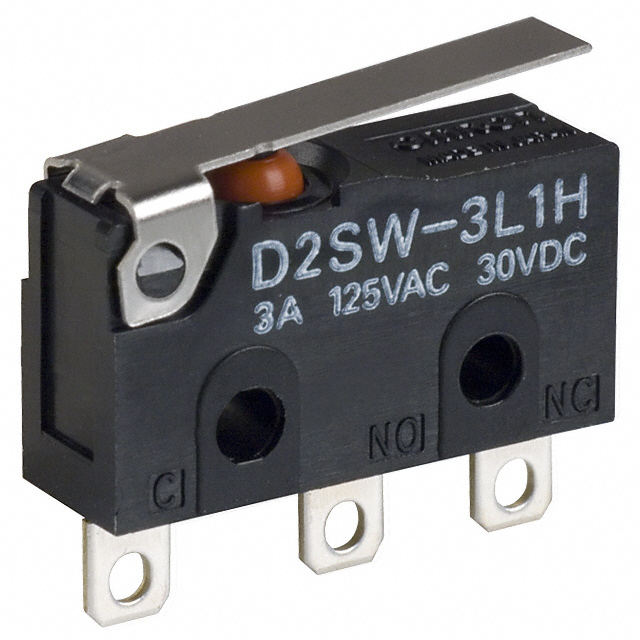

Omron Electronics Inc-EMC Div D2SW-3L1HS	Chassis Mount	8.8 mm	0.345 in	200000 Cycles	IP67 - Dust Tight Waterproof	-40 °C	85 °C	60 gf	0.8 mm	0.031 "	125 V	Solder Lug	5000000 Cycles		6.118 gf	Lever Straight	3 A	0.04 in	1 mm	SPDT	On-Mom	30 V
Omron Electronics Inc-EMC Div D2S-01D	Through Hole	8.4 mm	0.33 in		IP67 - Dust Tight Waterproof	-25 °C	85 °C	150 gf	0.1 mm	0.004 in		PC Pin			6 gf	Round (Pin Plunger)	100 mA	0.015 "	0.4 mm	SPDT	On-Mom	30 V	0.7 mm	0.028 in

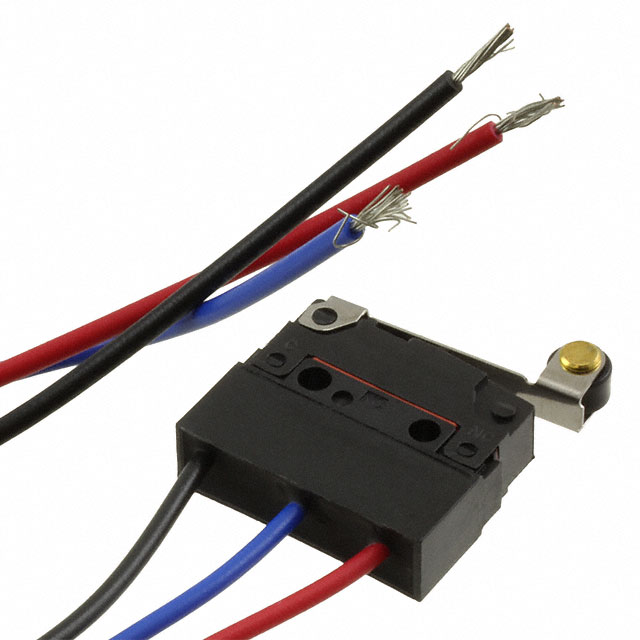

Omron Electronics Inc-EMC Div D2SW-P2L2M	Chassis Mount			50000 Cycles	IP67 - Dust Tight Waterproof	-20 C	70 °C	61 gf	0.8 mm	0.031 "	250 V	Wire Leads	1000000 Cycles		5.099 gf	Lever Roller	2 A	0.03 in	0.76 mm	SPDT	On-Mom	30 V			0.571 in	14.5 mm
Omron Electronics Inc-EMC Div D2S-5	Chassis Mount	8.4 mm	0.33 in		IP67 - Dust Tight Waterproof	-25 °C	85 °C	150 gf	0.1 mm	0.004 in	125 V	Solder Lug			6 gf	Round (Pin Plunger)	5 A	0.015 "	0.4 mm	SPDT	On-Mom		0.7 mm	0.028 in
Omron Electronics Inc-EMC Div D2SW-3L1DS	Through Hole	8.8 mm	0.345 in	200000 Cycles	IP67 - Dust Tight Waterproof	-40 °C	85 °C	60 gf	0.8 mm	0.031 "	125 V	PC Pin	5000000 Cycles		6.118 gf	Lever Straight	3 A	0.04 in	1 mm	SPDT	On-Mom	30 V

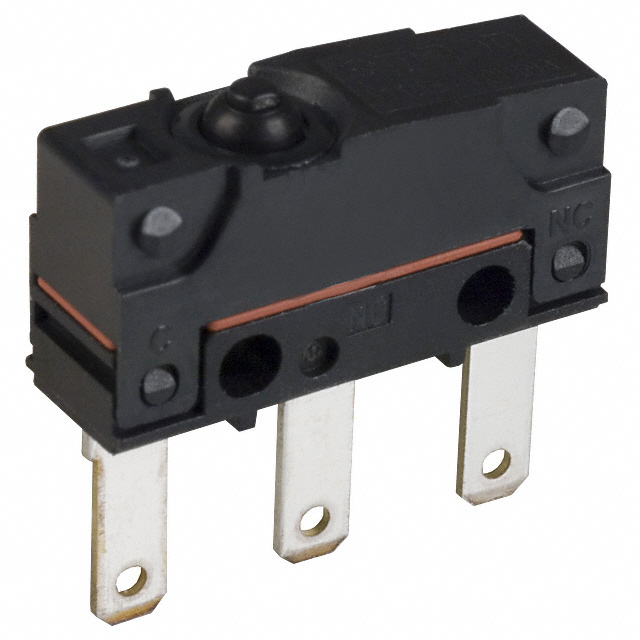

Omron Electronics Inc-EMC Div D2SW-P2T	Chassis Mount	8.4 mm	0.33 in	50000 Cycles	IP67 - Dust Tight Waterproof	-20 C	70 °C	183 gf	0.15 mm	0.006 in	250 V	Quick Connect - 0.110" (2.8mm)	1000000 Cycles		20 gf	Round (Pin Plunger)	2 A	0.015 "	0.4 mm	SPDT	On-Mom	30 V	0.6 mm	0.024 in

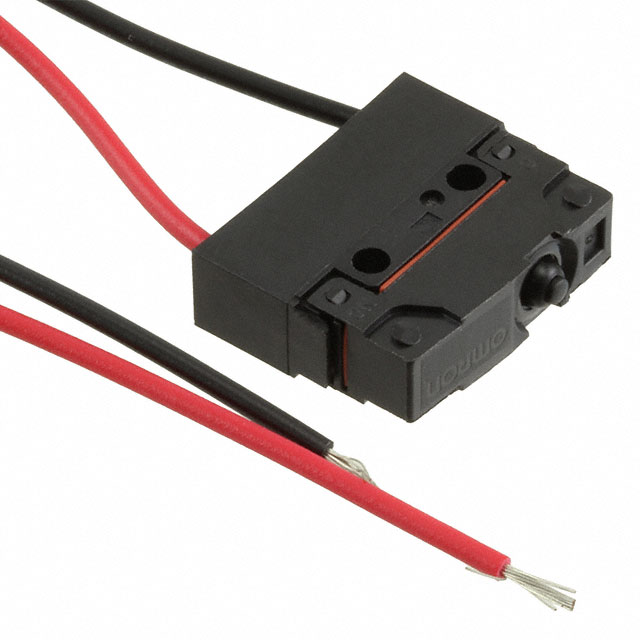

Omron Electronics Inc-EMC Div D2SW-P2-2M	Chassis Mount	8.4 mm	0.33 in	50000 Cycles	IP67 - Dust Tight Waterproof	-20 C	70 °C	183 gf	0.15 mm	0.006 in	250 V	Wire Leads	1000000 Cycles		20 gf	Round (Pin Plunger)	2 A	0.015 "	0.4 mm	SPST-NC	On-Mom	30 V	0.6 mm	0.024 in
Omron Electronics Inc-EMC Div D2S-01-F	Chassis Mount	8.4 mm	0.33 in		IP67 - Dust Tight Waterproof	-25 °C	85 °C	50 gf	0.1 mm	0.004 in		Solder Lug			25 gf	Round (Pin Plunger)	100 mA	0.015 "	0.4 mm	SPDT	On-Mom	30 V	0.7 mm	0.028 in
Omron Electronics Inc-EMC Div D2S-01L2	Chassis Mount	15.1 mm	0.594 "	200000 Cycles	IP40	-25 °C	85 °C	50 gf	0.8 mm	0.031 "	125 V	Solder Lug	30000000 Cycles	Sealed - Flux Protection	6.118 gf	Lever Roller	100 mA	0.04 in	1 mm	SPDT	On-Mom	30 V
