FDSD024 Series
Manufacturer: Belden Inc.
Beta
⌘K

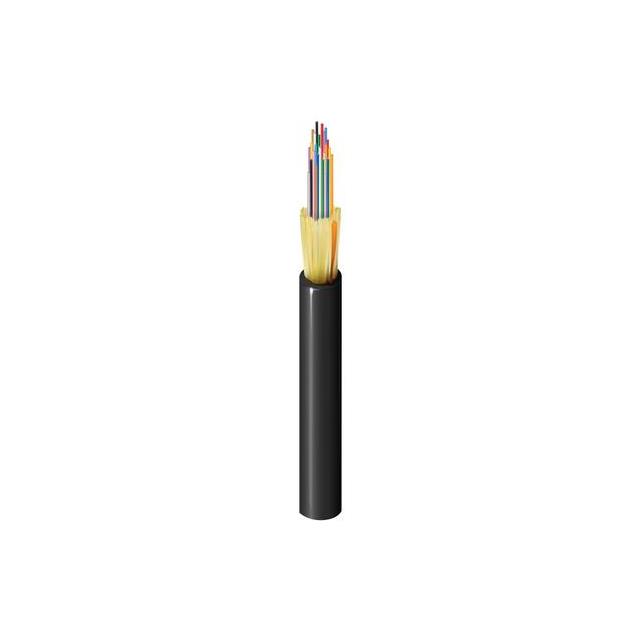

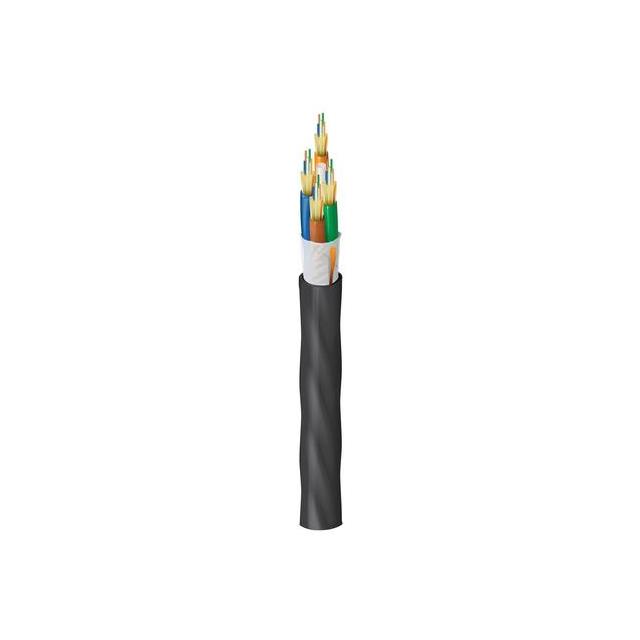

CBL FIBER OPTIC 125UM SINGLEMODE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Core Diameter [diameter] | Jacket (Insulation) Material | Style | Ratings | Type | Tensile Strength | Features | Features | Cladding Diameter [diameter] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 °C | -40 C | 9 µm | Poly-Vinyl Chloride (PVC) | Multiple Fibers | OFCP | Singlemode | 40.8 kg | 24 | Armored | 125 µm | Black | 14.73 mm | 0.58 in |
 Belden Inc. | 70 °C | -40 C | 9 µm | Poly-Vinyl Chloride (PVC) | Multiple Fibers | OFCP | Singlemode | 81.6 kg | 24 | Armored | 125 µm | Black | 22.25 mm | 0.876 in |
 Belden Inc. | 70 °C | -40 C | 9 µm | Poly-Vinyl Chloride (PVC) | Multiple Fibers | OFNR | Singlemode | 40.8 kg | 24 Fibers Rip Cord | 125 µm | Black | 8.26 mm | 0.325 in | |
 Belden Inc. | 70 °C | -40 C | 9 µm | Poly-Vinyl Chloride (PVC) | Multiple Fibers | OFNR | Singlemode | 81.6 kg | 24 Fibers Rip Cord | 125 µm | Black | 14.27 mm | 0.562 in |
