9CR1212 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

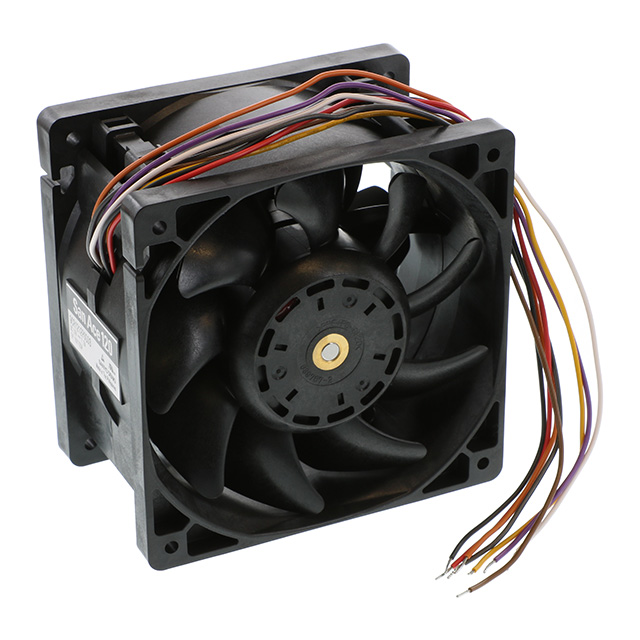

FAN AXIAL DUAL 120X76MM 12VDC
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Current Rating (Amps) | Material - Blade | Lifetime @ Temp. | Approval Agency | RPM [custom] | RPM [custom] | Noise | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Voltage - Rated | Termination | Features | Width [x] | Power (Watts) | Weight [custom] | Weight [custom] | Air Flow | Air Flow | Bearing Type | Size / Dimension [z] | Size / Dimension [x] | Static Pressure | Static Pressure | Fan Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 10.8 VDC | 13.2 VDC | Plastic | 7.2 A | Plastic | 40000 Hrs | cURus TUV | 3800 RPM | 6200 RPM | 70 dB(A) | 60 °C | 60 °C | -4 °F | -20 ░C | 12 VDC | 4 | Counter-Rotating Locked Rotor Protection PWM Control Speed Sensor (Tach) | 76 mm | 86.4 W | 0.67 kg | 1.5 lbs | 300 CFM | 8.4 mł/min | Ball | 120 mm | 120 mm | 480.8 Pa | 1.93 in H2O | Tubeaxial (Dual) |
