3RH21224 Series

Manufacturer: Siemens

Catalog

CONT RELAY FOR RAILWAY,2NO+1NC,

Part	Operate Time	Release Time	Coil Power	Must Operate Voltage	Features	Mounting Type	Switching Voltage [Max]	Coil Voltage	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Termination Style	Coil Voltage [Max]	Coil Voltage [Min]
Siemens 3RH21224LB400LA0	130 ms	20 ms	13 W	16.8 VDC	Auxiliary Contacts	Chassis Mount DIN Rail	690 VAC	24 VDC	10 A	70 °C	-40 C	3PST-2NO/1NC (2 Form A 1 Form B)	Screw Terminal
Siemens 3RH21224KB40	130 ms	20 ms	2.8 W	16.8 VDC	Auxiliary Contacts	Chassis Mount DIN Rail	690 VAC	24 VDC	10 A	60 °C	-25 °C	4PST-2NO/2NC (2 Form A 2 Form B)	Screw Terminal
Siemens 3RH21224BG40	100 ms	13 ms	4 W	100 VDC	Auxiliary Contacts	Chassis Mount DIN Rail	690 VAC	125 VDC	10 A	60 °C	-25 °C	4PST-2NO/2NC (2 Form A 2 Form B)	Screw Terminal
Siemens 3RH21224LB40	130 ms	20 ms	2.8 W	16.8 VDC	Auxiliary Contacts	Chassis Mount DIN Rail	690 VAC	24 VDC	10 A	60 °C	-25 °C	4PST-2NO/2NC (2 Form A 2 Form B)	Screw Terminal
Siemens 3RH21224AR60	33 ms	15 ms	37 VA		Auxiliary Contacts	Chassis Mount DIN Rail	690 VAC		10 A	60 °C	-25 °C	4PST-2NO/2NC (2 Form A 2 Form B)	Screw Terminal	440 VAC	400 VAC
Siemens 3RH21224AN60	33 ms	15 ms	37 VA		Auxiliary Contacts	Chassis Mount DIN Rail	690 VAC		10 A	60 °C	-25 °C	4PST-2NO/2NC (2 Form A 2 Form B)	Screw Terminal	220 VAC/DC	200 VAC/DC

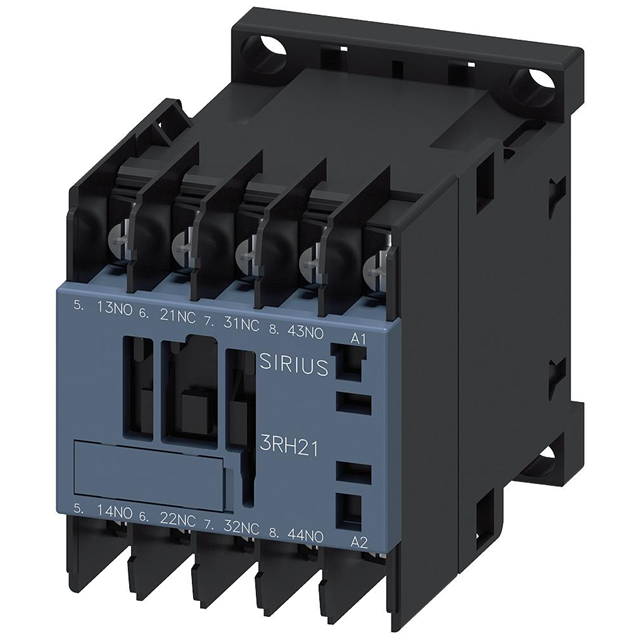

Siemens 3RH21224AB00	33 ms	15 ms	37 VA		Auxiliary Contacts	Chassis Mount DIN Rail	690 VAC	24 VAC	10 A	60 °C	-25 °C	4PST-2NO/2NC (2 Form A 2 Form B)	Screw Terminal
Siemens 3RH21224KB400LA0	130 ms	20 ms	13 W	16.8 VDC	Auxiliary Contacts	Chassis Mount DIN Rail	690 VAC	24 VDC	10 A	70 °C	-40 C	3PST-2NO/1NC (2 Form A 1 Form B)	Screw Terminal
Siemens 3RH21224AG60	33 ms	15 ms	37 VA		Auxiliary Contacts	Chassis Mount DIN Rail	690 VAC		10 A	60 °C	-25 °C	4PST-2NO/2NC (2 Form A 2 Form B)	Screw Terminal	110 VAC	100 VAC
Siemens 3RH21224BB40	100 ms	13 ms	4 W	19.2 VDC	Auxiliary Contacts	Chassis Mount DIN Rail	690 VAC	24 VDC	10 A	60 °C	-25 °C	4PST-2NO/2NC (2 Form A 2 Form B)	Screw Terminal
