850-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN HEADER SMD R/A 23POS 1.27MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Insulation Height	Insulation Height	Contact Shape	Termination	Contact Finish - Post	Number of Rows	Mounting Type	Contact Finish - Mating	Contact Material	Number of Positions Loaded	Shrouding	Insulation Material	Connector Type	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Positions	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Number of Positions [custom]	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length
Mill-Max Manufacturing Corp. 850-10-023-40-001000	10 Áin	0.25 çm	Male Pin	0.087 "	2.2 mm	Circular	Solder	Gold	1	Right Angle Surface Mount	Gold	Brass Alloy	All	Unshrouded	Nylon 4/6 Polyamide (PA46)	Header	Push-Pull	1.27 mm	0.05 in	Black	23	3 mm	0.118 in	0.25 µm	10 µin

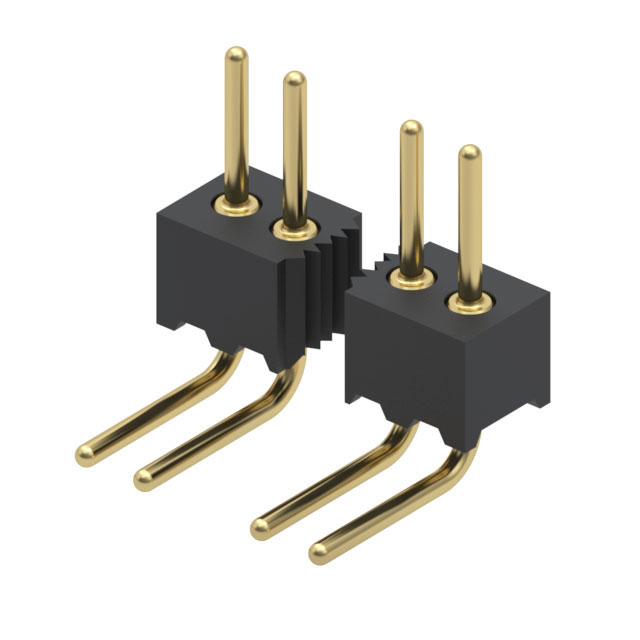

Mill-Max Manufacturing Corp. 850-10-030-20-001000	10 Áin	0.25 çm	Male Pin	0.087 "	2.2 mm	Circular	Solder	Gold	1	Right Angle Through Hole	Gold	Brass Alloy	All	Unshrouded	Nylon 4/6 Polyamide (PA46)	Header	Push-Pull	1.27 mm	0.05 in	Black	30	3 mm	0.118 in	0.25 µm	10 µin	0.118 in	3 mm

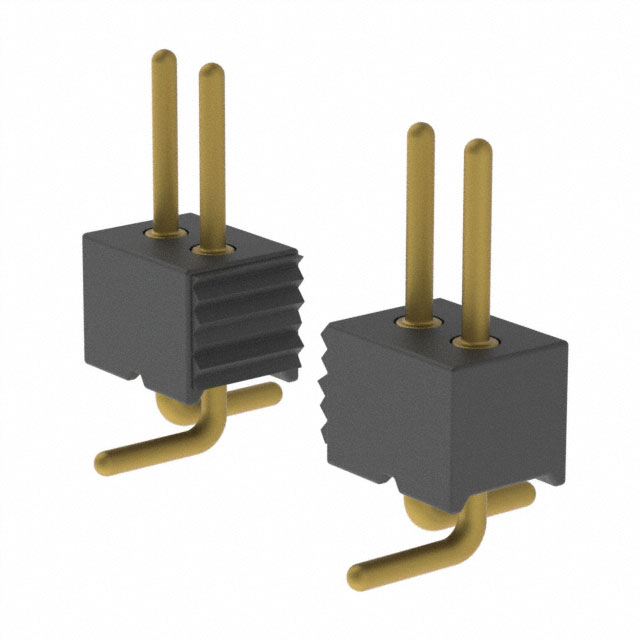

Mill-Max Manufacturing Corp. 850-10-032-30-002000	10 Áin	0.25 çm	Male Pin	0.087 "	2.2 mm	Circular	Solder	Gold	1	Surface Mount	Gold	Brass Alloy	All	Unshrouded	Nylon 4/6 Polyamide (PA46)	Header	Push-Pull	1.27 mm	0.05 in	Black		3 mm	0.118 in	0.25 µm	10 µin

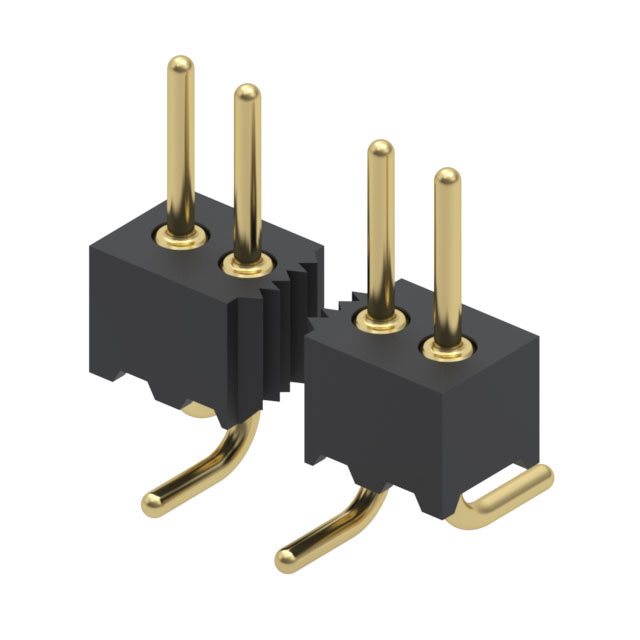

Mill-Max Manufacturing Corp. 850-10-005-30-001000	10 Áin	0.25 çm	Male Pin	0.087 "	2.2 mm	Circular	Solder	Gold	1	Surface Mount	Gold	Brass Alloy	All	Unshrouded	Nylon 4/6 Polyamide (PA46)	Header	Push-Pull	1.27 mm	0.05 in	Black	5	3 mm	0.118 in	0.25 µm	10 µin
Mill-Max Manufacturing Corp. 850-10-006-30-002000	10 Áin	0.25 çm	Male Pin	0.087 "	2.2 mm	Circular	Solder	Gold	1	Surface Mount	Gold	Brass Alloy	All	Unshrouded	Nylon 4/6 Polyamide (PA46)	Header	Push-Pull	1.27 mm	0.05 in	Black	6	3 mm	0.118 in	0.25 µm	10 µin
Mill-Max Manufacturing Corp. 850-10-031-40-001000	10 Áin	0.25 çm	Male Pin	0.087 "	2.2 mm	Circular	Solder	Gold	1	Right Angle Surface Mount	Gold	Brass Alloy	All	Unshrouded	Nylon 4/6 Polyamide (PA46)	Header	Push-Pull	1.27 mm	0.05 in	Black		3 mm	0.118 in	0.25 µm	10 µin			31
Mill-Max Manufacturing Corp. 850-10-006-40-001000	10 Áin	0.25 çm	Male Pin	0.087 "	2.2 mm	Circular	Solder	Gold	1	Right Angle Surface Mount	Gold	Brass Alloy	All	Unshrouded	Nylon 4/6 Polyamide (PA46)	Header	Push-Pull	1.27 mm	0.05 in	Black	6	3 mm	0.118 in	0.25 µm	10 µin

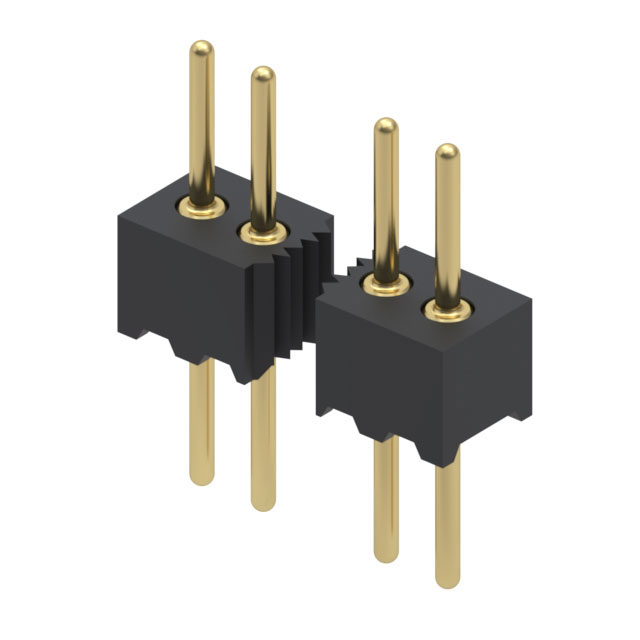

Mill-Max Manufacturing Corp. 850-10-025-10-001000	10 Áin	0.25 çm	Male Pin	0.087 "	2.2 mm	Circular	Solder	Gold	1	Through Hole	Gold	Brass Alloy	All	Unshrouded	Nylon 4/6 Polyamide (PA46)	Header	Push-Pull	1.27 mm	0.05 in	Black	25	3 mm	0.118 in	0.25 µm	10 µin				0.114 in	2.9 mm	8.1 mm	0.319 in
Mill-Max Manufacturing Corp. 850-10-004-40-001000	10 Áin	0.25 çm	Male Pin	0.087 "	2.2 mm	Circular	Solder	Gold	1	Right Angle Surface Mount	Gold	Brass Alloy	All	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)	Header	Push-Pull	1.27 mm	0.05 in	Black	4	3 mm	0.118 in	0.25 µm	10 µin
Mill-Max Manufacturing Corp. 850-10-017-20-001000	10 Áin	0.25 çm	Male Pin	0.087 "	2.2 mm	Circular	Solder	Gold	1	Right Angle Through Hole	Gold	Brass Alloy	All	Unshrouded	Nylon 4/6 Polyamide (PA46)	Header	Push-Pull	1.27 mm	0.05 in	Black		3 mm	0.118 in	0.25 µm	10 µin	0.118 in	3 mm
