H2176 Series
Manufacturer: Harwin Inc.
Beta
⌘K

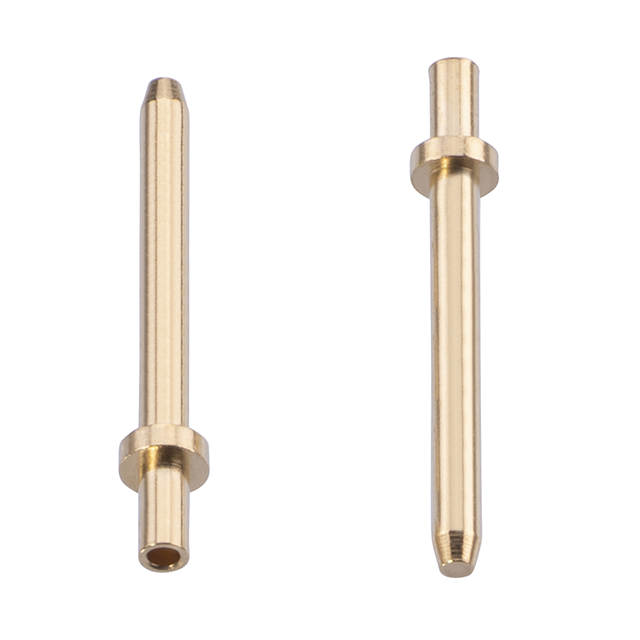

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES
| Part | Length - Above Flange | Length - Above Flange [x] | Terminal Style | Board Thickness | Board Thickness | Length - Overall | Length - Overall | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Termination | Contact Material | Terminal Type | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 9.02 mm | 0.355 in | Single End | 0.063 in | 1.6 mm | 0.457 " | 11.61 mm | Non-Insulated | 1.77 mm | 0.07 in | Gold | 2.08 mm | 0.082 " | 1.04 mm | 1.14 mm | 0.041 in | 0.045 in | Swage | Brass | PC Pin | Through Hole | 0.041 in | 1.04 mm |
