131644 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

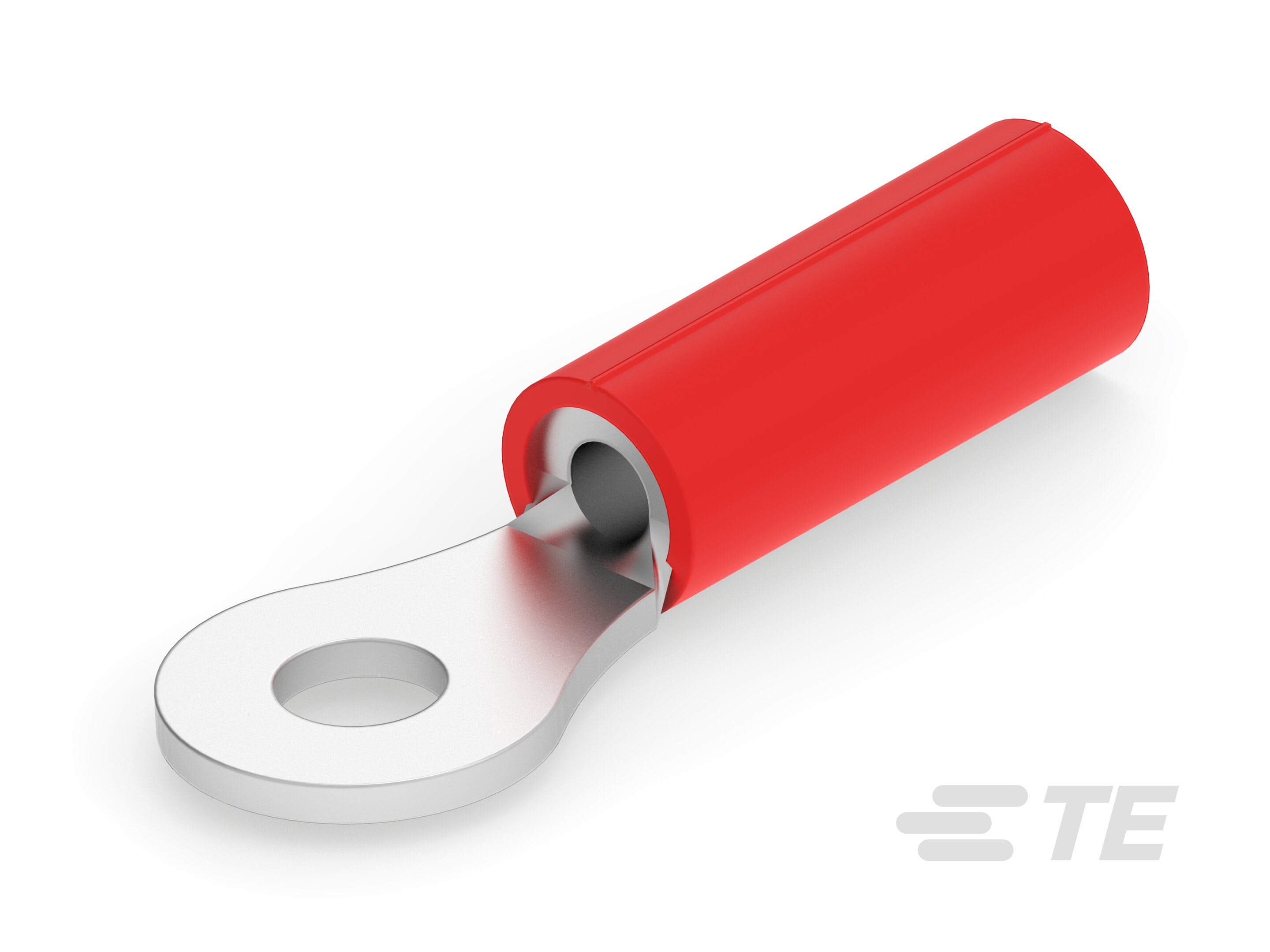

CONN RING CIRC 18-22AWG #4 CRIMP
| Part | Insulation Diameter [Max] | Insulation Diameter [Min] | Material - Insulation | Contact Material | Termination | Width - Outer Edges [y] | Width - Outer Edges [y] | Stud/Tab Size | Features | Mounting Type | Insulation | Terminal Type | Color | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall [x] | Length - Overall [x] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.07 " 1.78 mm | 0.049 " 1.25 mm | Nylon Polyamide (PA) | Copper | Crimp | 0.283 in | 7.2 mm | 4 Stud | Insulation Restriction Serrated Termination | Free Hanging (In-Line) | Insulated | Circular | Natural Red Stripe | 22 AWG | 17.5 AWG | 22 mm | 0.866 in | Tin |
TE Connectivity AMP Connectors |
