399-41 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 52POS 0.1 GOLD PCB R/A

Part	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Finish - Mating	Connector Type	Material Flammability Rating	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions Loaded	Number of Positions	Number of Rows	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insulation Color	Contact Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Features	Number of Positions [custom]
Mill-Max Manufacturing Corp. 399-41-152-10-003000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	Gold	Receptacle	UL94 V-0	Right Angle Through Hole	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	Tin	All	52	1	Solder	0.25 µm	10 µin	3 A	Black	Female Socket	0.1 "	2.54 mm	0.1 in	2.54 mm

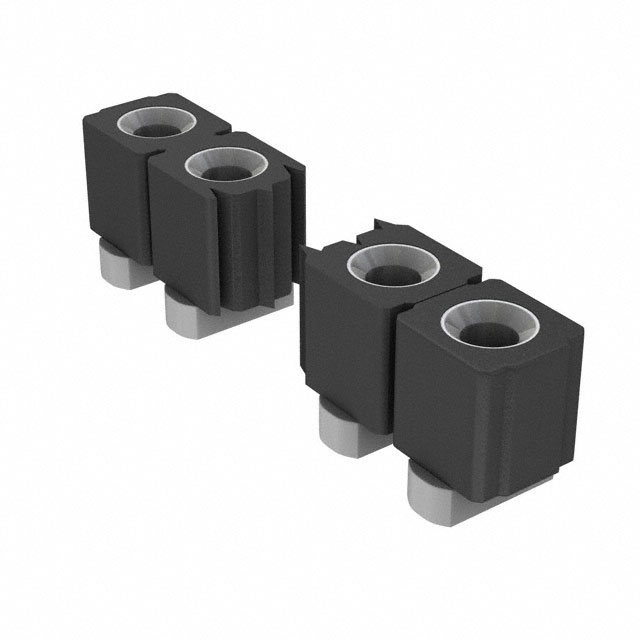

Mill-Max Manufacturing Corp. 399-41-012-21-300000	Circular	Glass Filled Nylon 4/6 Polyamide (PA46)	200 µin	5.08 µm	Beryllium Copper	Gold	Socket	UL94 V-0	Surface Mount			Push-Pull	-55 C	125 °C	Tin	All	12	1	Solder	0.25 µm	10 µin	3 A	Black	Female Socket	0.05 in	1.27 mm	0.118 in	3 mm	Block Terminals
Mill-Max Manufacturing Corp. 399-41-131-10-003000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	Gold	Receptacle	UL94 V-0	Right Angle Through Hole	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	Tin	All		1	Solder	0.25 µm	10 µin	3 A	Black	Female Socket	0.1 "	2.54 mm	0.1 in	2.54 mm		31
Mill-Max Manufacturing Corp. 399-41-110-10-003000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	Gold	Receptacle	UL94 V-0	Right Angle Through Hole	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	Tin	All	10	1	Solder	0.25 µm	10 µin	3 A	Black	Female Socket	0.1 "	2.54 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 399-41-161-10-003000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	Gold	Receptacle	UL94 V-0	Right Angle Through Hole	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	Tin	All	61	1	Solder	0.25 µm	10 µin	3 A	Black	Female Socket	0.1 "	2.54 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 399-41-045-21-300000	Circular	Glass Filled Nylon 4/6 Polyamide (PA46)	200 µin	5.08 µm	Beryllium Copper	Gold	Socket	UL94 V-0	Surface Mount			Push-Pull	-55 C	125 °C	Tin	All	45	1	Solder	0.25 µm	10 µin	3 A	Black	Female Socket	0.05 in	1.27 mm	0.118 in	3 mm	Block Terminals
Mill-Max Manufacturing Corp. 399-41-159-10-003000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	Gold	Receptacle	UL94 V-0	Right Angle Through Hole	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	Tin	All	59	1	Solder	0.25 µm	10 µin	3 A	Black	Female Socket	0.1 "	2.54 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 399-41-137-10-003000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	Gold	Receptacle	UL94 V-0	Right Angle Through Hole	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	Tin	All	37	1	Solder	0.25 µm	10 µin	3 A	Black	Female Socket	0.1 "	2.54 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 399-41-129-10-003000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	Gold	Receptacle	UL94 V-0	Right Angle Through Hole	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	Tin	All	29	1	Solder	0.25 µm	10 µin	3 A	Black	Female Socket	0.1 "	2.54 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 399-41-007-21-300000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	Gold	Receptacle	UL94 V-0	Surface Mount			Push-Pull	-55 C	125 °C	Tin	All	7	1	Solder	0.25 µm	10 µin	3 A	Black	Female Socket	0.05 in	1.27 mm	0.118 in	3 mm	Block Terminals
