PH18 Series
Manufacturer: Panduit Corp
Beta
⌘K

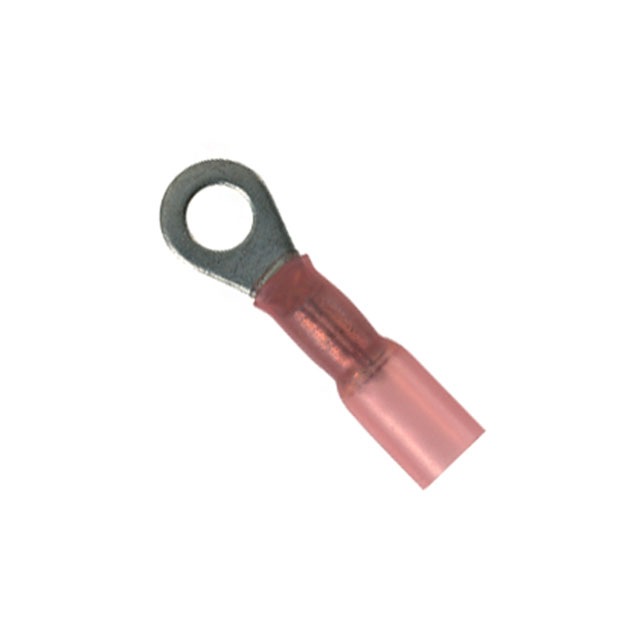

RING TERM, HEAT SHRINK, 22-18 AWG, 1/4" ROHS COMPLIANT: YES
| Part | Material - Insulation | Length - Overall [x] | Length - Overall [x] | Termination | Contact Material | Insulation | Color | Mounting Type | Features | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Width - Outer Edges [x] | Width - Outer Edges [x] | Terminal Type | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Polyolefin | 31.5 mm | 1.24 in | Crimp | Copper | Insulated with Heat Shrink | Red | Free Hanging (In-Line) | Brazed Seam | Tin | 22 AWG | 17.5 AWG | 0.47 in | 11.94 mm | Circular | 0.25 Stud |
Panduit Corp | Polyolefin | 26.67 mm | 1.05 in | Crimp | Copper | Insulated with Heat Shrink | Red | Free Hanging (In-Line) | Brazed Seam | Tin | 22 AWG | 17.5 AWG | 0.25 " | 6.35 mm | Circular | 6 Stud |
