M22-301 Series

Catalog

HEADER CONNECTOR,CABLE MOUNT,PLUG,9 CONTACTS,SKT,0.079 PITCH ROHS COMPLIANT: YES

Part	Note	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Color	Contact Type	Connector Type	Insulation Material

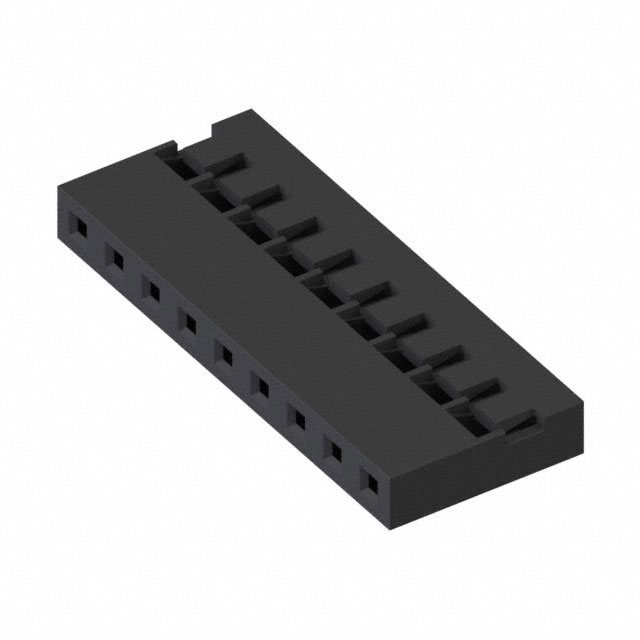

Harwin Inc. M22-3010900	Contacts Not Included	9	85 °C	-25 °C	Crimp	0.079 in	2 mm	1	Free Hanging (In-Line)	Black	Female Socket	Receptacle	Thermoplastic

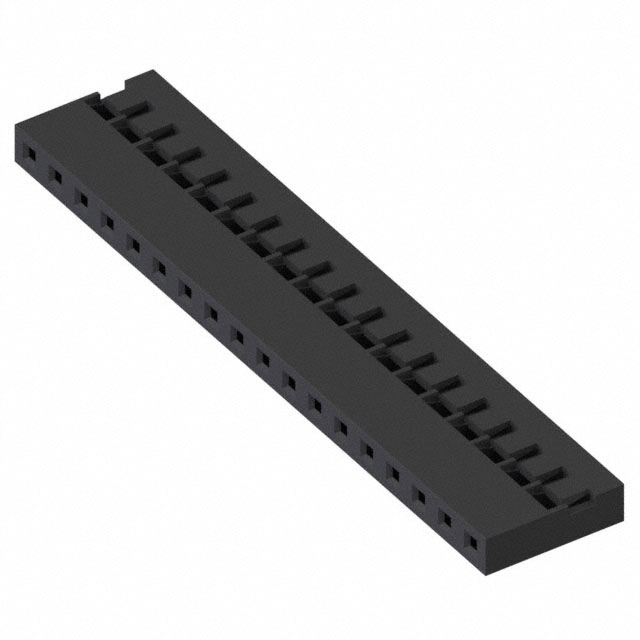

Harwin Inc. M22-3011800	Contacts Not Included	18	85 °C	-25 °C	Crimp	0.079 in	2 mm	1	Free Hanging (In-Line)	Black	Female Socket	Receptacle	Thermoplastic

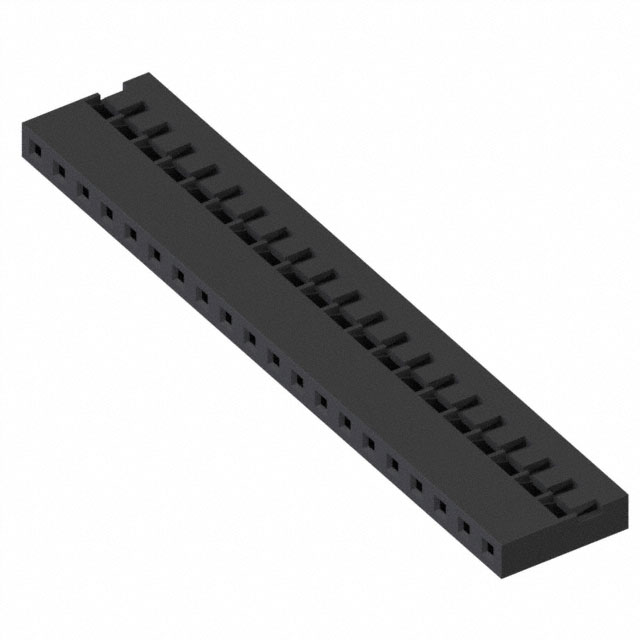

Harwin Inc. M22-3012000	Contacts Not Included	20	85 °C	-25 °C	Crimp	0.079 in	2 mm	1	Free Hanging (In-Line)	Black	Female Socket	Receptacle	Thermoplastic

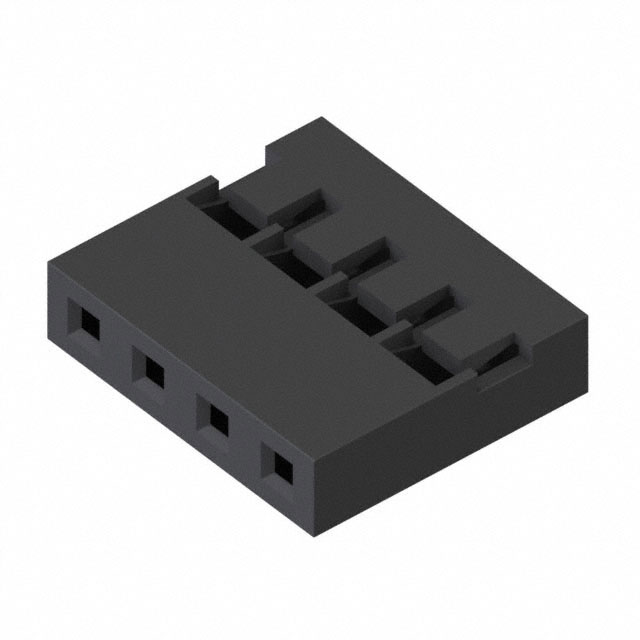

Harwin Inc. M22-3010400	Contacts Not Included	4	85 °C	-25 °C	Crimp	0.079 in	2 mm	1	Free Hanging (In-Line)	Black	Female Socket	Receptacle	Thermoplastic

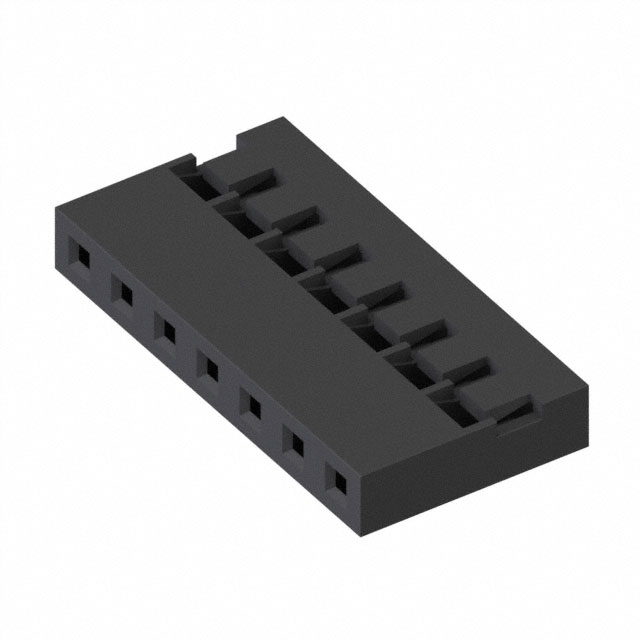

Harwin Inc. M22-3010700	Contacts Not Included	7	85 °C	-25 °C	Crimp	0.079 in	2 mm	1	Free Hanging (In-Line)	Black	Female Socket	Receptacle	Thermoplastic
Harwin Inc. M22-3010200	Contacts Not Included	2	85 °C	-25 °C	Crimp	0.079 in	2 mm	1	Free Hanging (In-Line)	Black	Female Socket	Receptacle	Thermoplastic
Harwin Inc. M22-3011200	Contacts Not Included	12	85 °C	-25 °C	Crimp	0.079 in	2 mm	1	Free Hanging (In-Line)	Black	Female Socket	Receptacle	Thermoplastic
